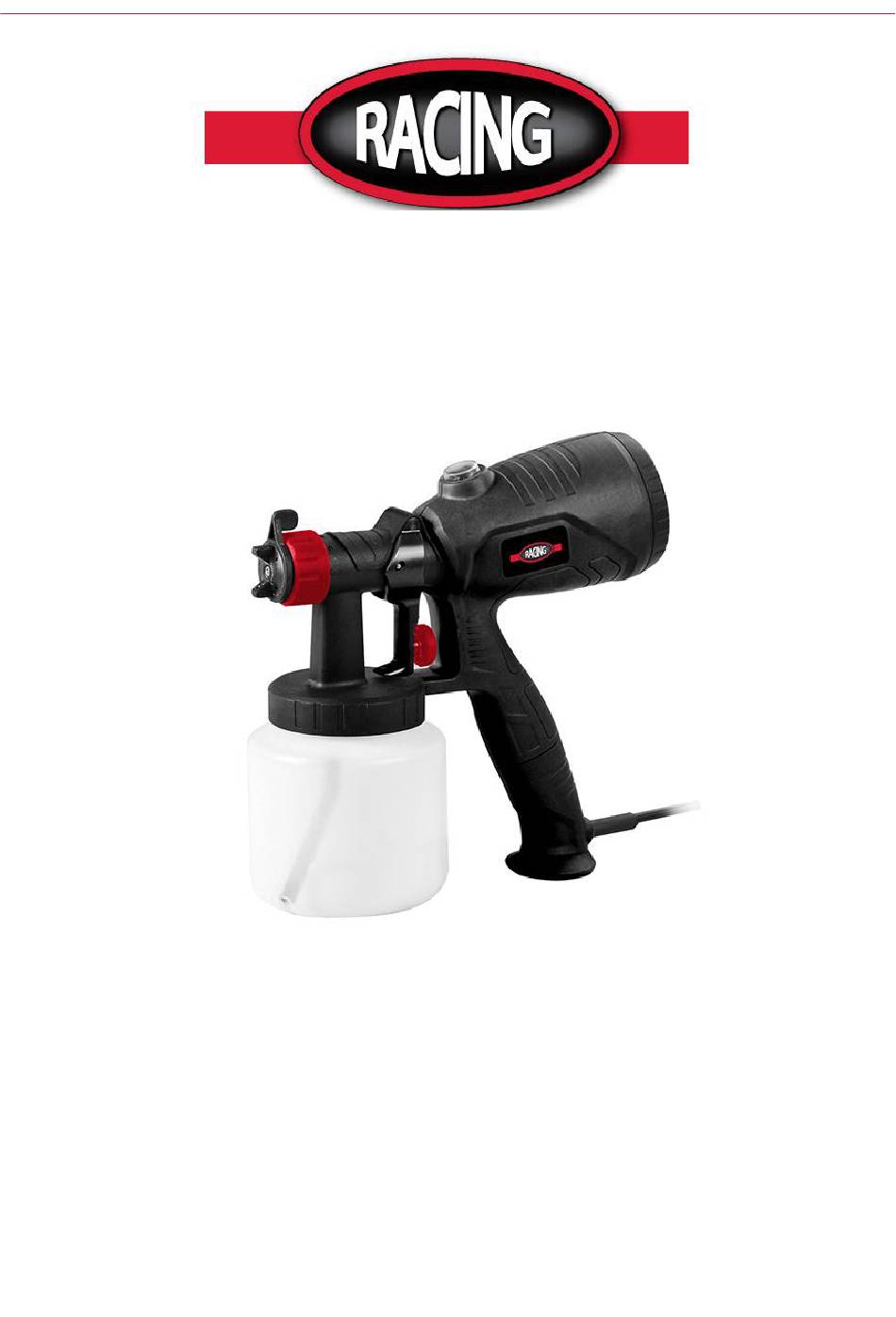

- Page 1 ORIGINAL INSTRUCTIONS PAINT SPRAYER RACSP450PW USER GUIDE CAUTION Read the instructions before using the machine BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France Made in PRC 2022...
-
Page 2: Table Of Contents
CONTENT 1. GENERAL POWER TOOL SAFETY WARNINGS..........3 2. PAINT SPPRAYER SAFETY WARNINGS............5 3. INTENDED USE....................6 4. SYMBOLS.......................7 5. KNOW YOUR PRODUCT................8 6. USING THE DEVICE..................9 7. SPRAYING TECHNIQUE ................10 8. CLEANING THE DEVICE................11 9. DISPOSAL ....................11 10. DECLARATION OF CONFORMITY……………………………………...……..12 11. -
Page 3: General Power Tool Safety Warnings
1. GENERAL POWER TOOL SAFETY WARNINGS WARNING: Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool"... - Page 4 d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
-
Page 5: Paint Spprayer Safety Warnings
2. PAINT SPRAYER SAFETY WARNINGS NOTE: Learn to know your tool. Please read the operator’s manual. Learn the applications and limitations as well as the specific potential hazards. WARNING: TO AVOID THE RISK OF FIRE OR EXPLOSION: • DO NOT spray flammable or combustible materials near a flame or sources of ignition such as Cigarettes, motors, and electrical equipment. -
Page 6: Intended Use
If the replacement of the supply cord is necessary, this has to be done by the manufacturer or his agent in order to avoid a safety hazard. Do not to spray any material where the hazard is not known. Use appropriate personal protective equipment, such as dust mask. Do not to clean guns with flammable solvents. -
Page 7: Symbols
4. SYMBOLS The labels on your tools and manual may show symbols. These represent important information about the product or instruction on its use. Read the instruction before use Wear eye protection Wear eyes protection Wear ear protection Conforms to relevant safety standards Double insulation Do not dispose of old appliances with domestic rubbish... -
Page 8: Know Your Product
5. KNOW YOUR PRODUCT a) Machine components 1) Nozzle 12) Plug Nozzle cleaning needle 2) Paint Container 3) Handle 14) Viscosity cup 4) Spray adjuster 5) Holder ring of spray adjuster 6) Gun Body 7) ON/OFF switch 8) Motor housing 9) Trigger 10) Fluid Adjusting Screw 11) Cable... -
Page 9: Using The Device
b) Technical data 1) Voltage: ..........220-240V~ 50/60Hz Power: ..........450W 3) Rotation speed : ........30000/min 4) Technology : ..HVLP (High Volume Low Pressure) 5) Flow : ..........500 ml/min 6) Pressure : ..........0.3-040 bar 7) Nozzle diameter : ......1.8 mm 8) Sound pressure level: ......80dB(A), K=3dB(A) 9) Sound power level: ......91dB(A), K=3dB(A) 10) Vibration: .........0.4 m/s , K=1.5m/s... -
Page 10: Spraying Technique
1. Vertical flat jet for horizontal surfaces (Figure A) 2. Horizontal flat jet for vertical surfaces (Figure B) 3. Circular jet for corners, edges and hard-to-reach areas (Figure C) Figure A Figure B Figure C Adjusting the Spray Setting Move the spray adjuster (4) to point the settings you want. Adjusting the Amount of Material To adjust the volume of material, turn the Fluid Adjusting Screw(10) on the trigger of the spray gun: - For a lower amount, turn to the left... -
Page 11: Cleaning The Device
- Point the spray gun at a uniform distance from the spray surface. Spray horizontally or from top to bottom, depending on the selected spray setting. - Move the spray gun evenly to get an even coating. 6) - If the coating material accumulates in the nozzle(1) and Holder ring of spray adjuster(4), clean it with the needle(13) or solvent. -
Page 12: Declaration Of Conformity
Tel: + 33 (0) 5.34.502.502 Fax: + 33 (0) 5.34.502.50 Declares that the machinery designated below: PAINT SPRAYER RACSP450PW Serial number: 20220211965-20220213464 Complies with the provisions of the Directive « Machine » 2006/42/CE and national laws transposing it: Also complies with the following European directives:... -
Page 13: Warranty
11. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 14: Product Failure
12. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 15: Warranty Exclusions
13. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
