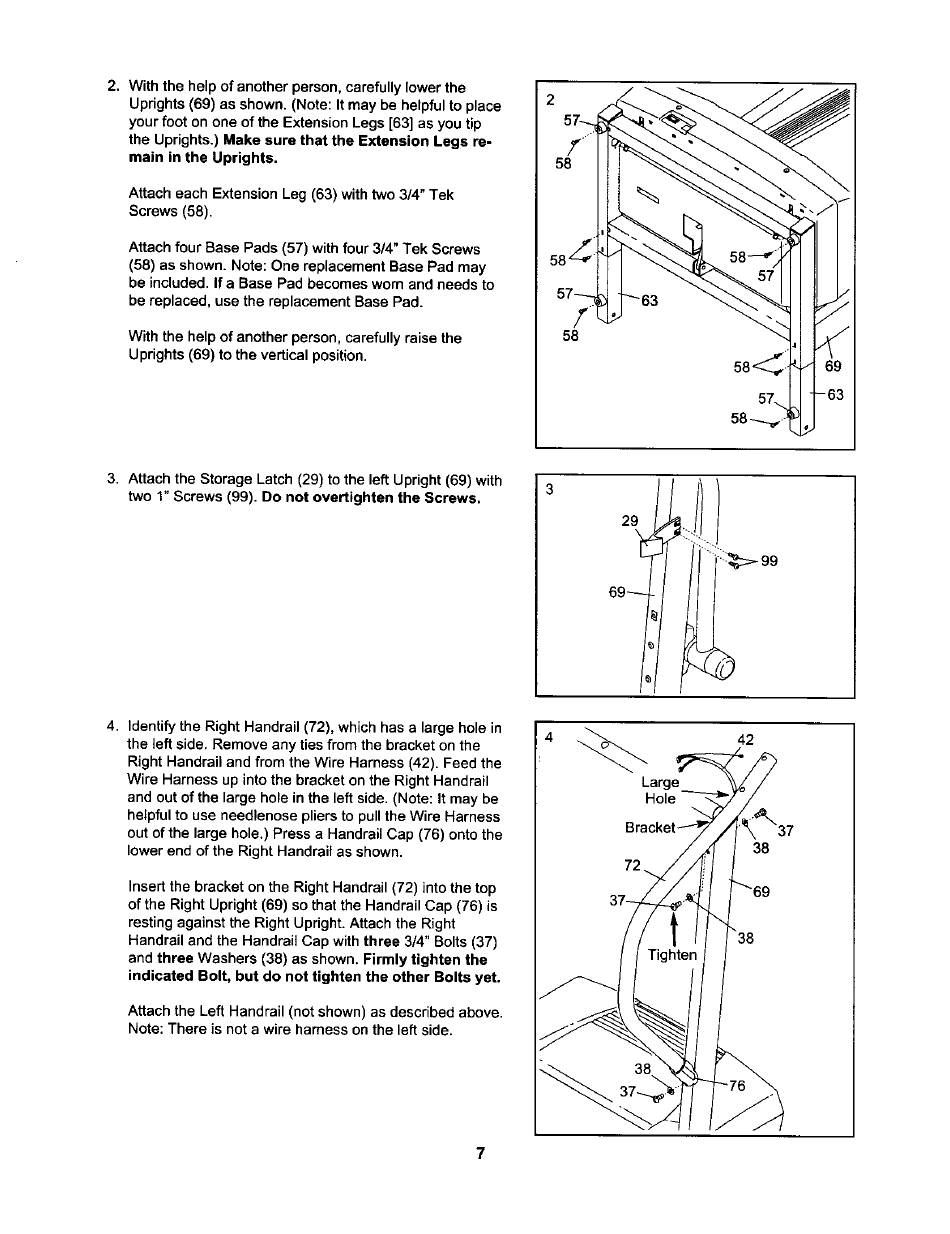

2. With the help of another person, carefully lower the
Uprights (69) as shown. (Note: It may be helpful to place
your foot on one of the Extension Legs [63] as you tip
the Uprights.) Make sure that the Extension Legs re-
main in the Uprights,
Attach each Extension Leg (63) with two 3/4" Tek
Screws (68).
Attach four Base Pads (57) with four 3/4" Tek Screws
(58) as shown. Note: One replacement Base Pad may
be included.If a Base Pad becomes worn and needs to
be replaced, use the replacement Base Pad.
With the help of another person, carefully raise the
Uprights (69) to the vertical position.
2
f
58
68, II
58
3. Attach the Storage Latch (29) to the left Upright (69) with
two 1" Screws (99). Do not overtighten the Screws.
3
4. Identify the Right Handrail (72), which has a large hole in
the left side. Remove any ties from the bracket on the
Right Handrail and from the Wire Harness (42). Feed the
Wire Harness up into the bracket on the Right Handrail
and out of the large hole in the left side. (Note: It may be
helpful to use needlenose pliers to pull the Wire Harness
out of the large hole.) Press a Handrail Cap (76) onto the
lower end of the Right Handrail as shown.
Insert the bracket on the Right Handrail (72) into the top
of the Right Upright (69) so that the Handrail Cap (76) is
resting against the Right Upright. Attach the Right
Handrail and the Handrail Cap with three 3/4" Bolts (37)
and three Washers (38) as shown. Firmly tighten the
indicated Bolt, but do not tighten the other Bolts yet.
Attach the Left Handrail (not shown) as described above.
Note: There is not a wire harness on the left side.
4
42
38
