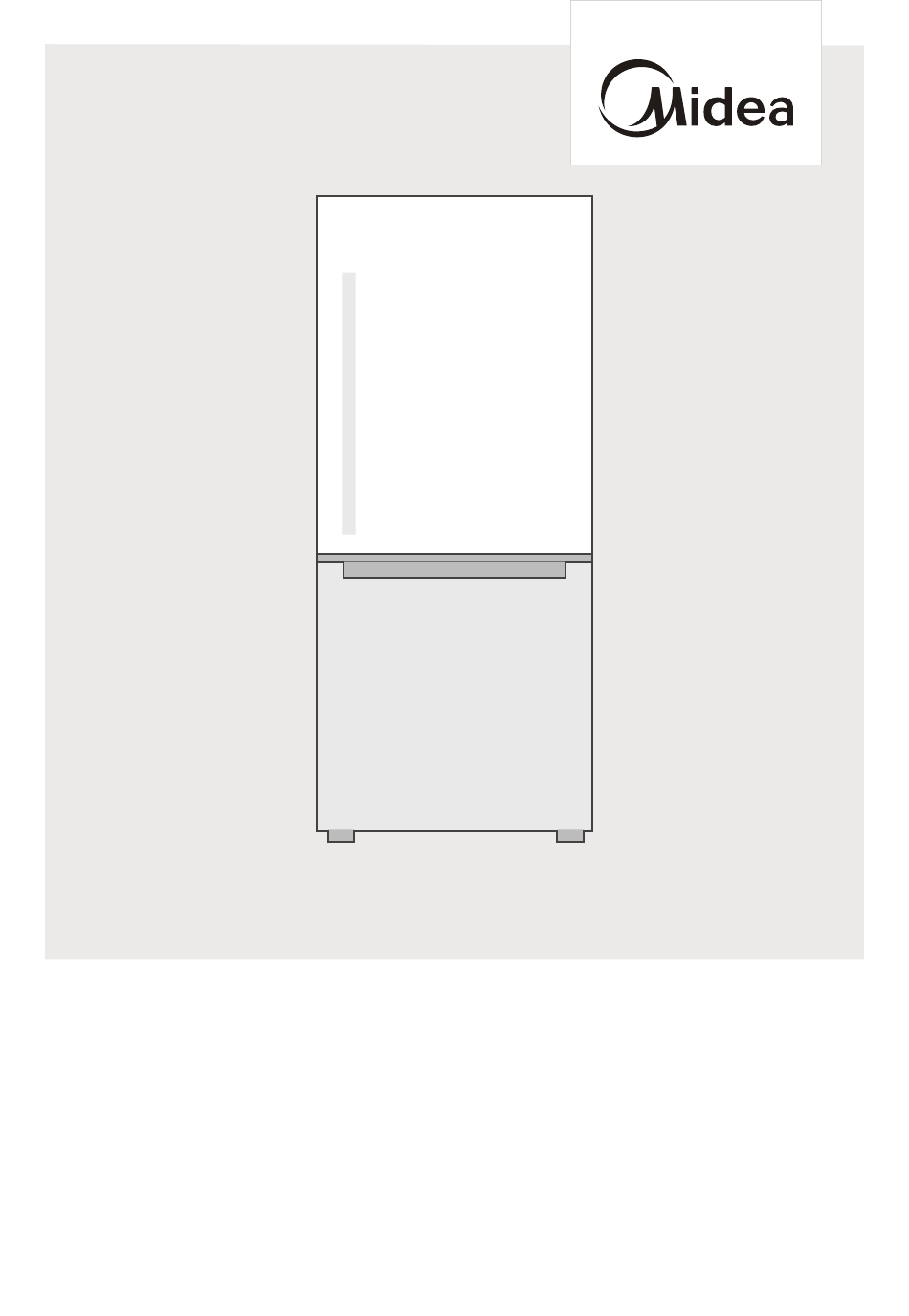

Refrigerator
BOTTOM MOUNTED FREEZER SERIES
USER MANUAL
MRB19B5AST
Warning notices: Before using this product, please read this manual carefully and keep it for future reference.
The design and specifications are subject to change without prior notice for product improvement.
Consult with your dealer or manufacturer for details.

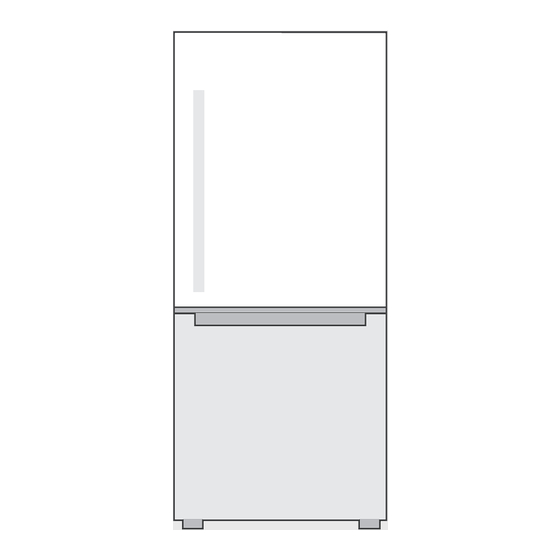

The diagram above is just for reference. Please take the appearance of the actual product as the standard.
Advertisement
Table of Contents
Related Manuals for Midea MRB19B5AST
Summary of Contents for Midea MRB19B5AST
- Page 1 Refrigerator BOTTOM MOUNTED FREEZER SERIES USER MANUAL MRB19B5AST Warning notices: Before using this product, please read this manual carefully and keep it for future reference. The design and specifications are subject to change without prior notice for product improvement. Consult with your dealer or manufacturer for details.
-
Page 2: Table Of Contents
THANK YOU LETTER Thank you for choosing Midea! Before using your new Midea product, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers in a safe way. -
Page 3: Specifications
SPECIFICATIONS Rated Voltage 115V~ Rated Frequency 60Hz Rated Current 1.8A Defrost Power 200W Refrigerant, Amount R600a, 1.76oz(50g) Foaming Agent Cyclopentane... -
Page 4: Product Overview
PRODUCT OVERVIEW Names of components LED light & temperature Door tray control panel Shelf Top drawer of freezer Fruit and vegetable box Drawer under freezer Leveling feet (2-bottom front) Wheels (2-bottom back) ATTENTION The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor. -
Page 5: Product Installation
Installing an Optional Ice Maker The refrigerator comes set up for ice maker installation, This refrigerator is compatible with Midea IM1900MD ice maker. Please refer to individual ice maker installation instruction manual. • WARNING: Connect to potable water supply only. - Page 6 Space requirement diagram (when the door is open and when the door is closed) 135 ° Depth Width Overall Depth Width Depth doors open doors open Height Wiht handle 1692 1350 1275 Notice: All dimensions in mm...
- Page 7 Door right-left change(Optional) List of tools to be provided by the user Allen wrench-Cross screwdriver Putty knife Thin-blade screwdriver 5/16″ socket spanner Masking tape Parts included with the hinge kit Left top Left door- Left door- open hinge cover self-locking stopper (1) block (1) Top left...
- Page 8 5. Remove the three screws that secure the center hinge to the refrigerator, then remove the center hinge. Save the screws to reuse. 6. Remove the sleeves and hole caps from the refrigerator door, then install them in the opposite side of the door. 7.
- Page 9 11. Install the hinge cover on the left side of the refrigerator and the hole cover on the right side. ATTENTION The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor. Handle installation(Optional) The appliance must be unplugged before installing the handle.
- Page 10 Leveling feet To avoid vibration, the unit must be leveled. If required, adjust the leveling screws to compensate for the uneven floor. The front should be slightly higher than the rear to aid in door closing. Leveling screws can be turned easily by tipping the cabinet slightly. Turn the leveling screws counterclockwise to raise the unit, clockwise lower it.
-
Page 11: Operation Instructions
OPERATION INSTRUCTIONS Control panal Alarm/power off/power on button Freezer button Fridge button Display When the initial power is up, it is 3 seconds, While the boot bell rings, and then goes into normal operation display. (Refrigerator and freezer are mid-range at the time of first power-up) Display fault code in the event of a failure (Loop display);... - Page 12 Operating instructions Refrigerator settings • Press the refrigeration key to adjust the refrigeration set gear, each press the refrigeration key once, the gear change one gear, the order is as follows: ℃ ℃ ℃ Freezer settings • Press the refrigeration key to adjust the refrigeration set gear, each press the refrigeration key once, the gear change one gear, the order is as follows: ℃...
- Page 13 Tips on storing food Freezer compartment • The freezer is designated for the storage of food frozen at very low temperature, long-term storage of frozen food, and for the production of ice. • Only use the shelves in the door of the freezer to store frozen food, not for storing hot food designated for freezing.
-
Page 14: Cleaning And Maintenance
CLEANING AND MAINTENANCE Defrosting • The refrigerator is made based on the air-cooling principle and thus has automatic defrosting function. Frost formed due to change of season or temperature may also be manually removed by disconnection of the appliance from power supply or by wiping with a dry towel. Cleaning of door tray •... - Page 15 • First pull out the fruit and vegetable box, because the fruit and vegetable box has a stop, it needs to lift be lifted upward before the fruit and vegetable box can be removed. • The roller seat is stuck in the box tank groove, press the arrow in the direction of the image, remove the roller seat, clean the box tank groove as needed.
-
Page 16: Troubleshooting
TROUBLESHOOTING The following simple issues can be handled by the user. Please call the after-sale service department if the issues are not solved. Problem Possible reason • Check whether the appliance is connected to power or whether the plug is in well contact Failed operation •... - Page 17 Problem Possible reason • Remove foreign matters on the door seal Door seal fails to be tight • Heat the door seal and then cool it for restoration (or blow it with an electrical drier or use a hot towel for heating) •...
-
Page 18: Warranty
U.S. and Canada. Midea Customer Service In the U.S.A. or Canada, call 1-866-646-4332. If outside the 50 States of the United States or Canada, contact your authorized Midea dealer to determine whether another warranty applies. 1 YEAR PARTS AND LABOR... - Page 19 DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY Midea makes no representations about the quality, durability, or need for service or repair of this major appliance other than the representations contained in this warranty. If you want a longer or more comprehensive warranty than the limited warranty that comes with this major appliance, you should ask Midea or your retailer about buying an extended warranty.
- Page 20 2023...
