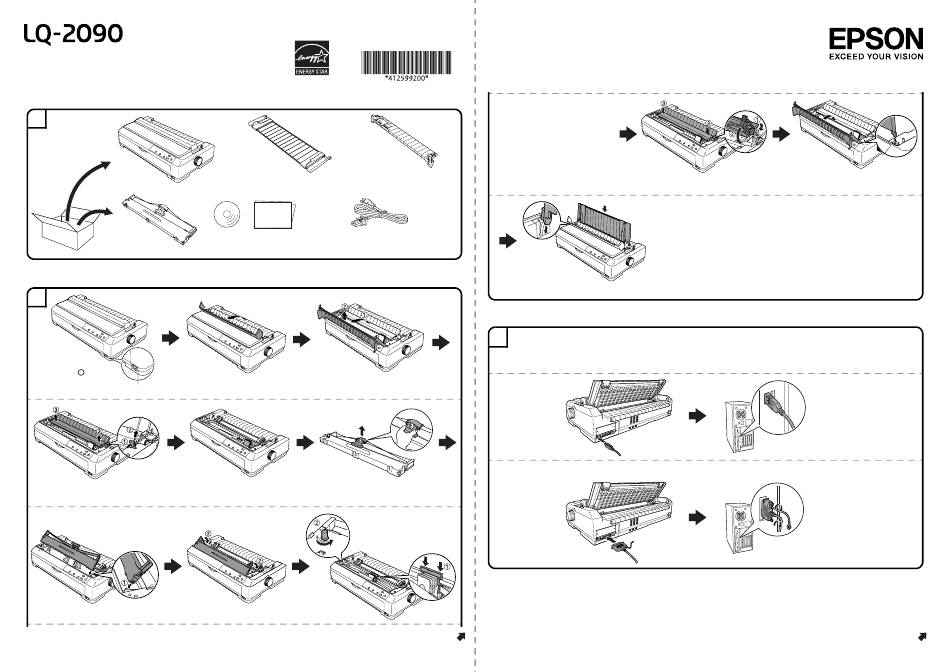

Epson LQ-2090 Start Here

Start Here
Unpacking
1
ribbon cartridge
Assembling the Printer
2
Confirm the (OFF)
OFF
Remove the paper tension unit Slide the print head to the middle
of the printer by hand
paper guide
front paper guide
Start Here
It may come attached to the printer in some
countries.
The shape of the plug may vary by location.
Remove the printer cover
Pull the ribbon guide until it is out
of the cartridge
Tense
Slide the ribbon guide into the
print head until it clicks in place
Continued
Caution:
c
❏ The ribbon should not be
twisted or creased.
❏ When inserting the ribbon
guide, press firmly until it
clicks.
Reinstall the paper tension unit
Attach the paper guide
Connecting the Printer to Your Computer
3 Caution:
c
❏ The interface cable connectors have only one correct orientation. Make sure the orientation of the connector is correct
before inserting it into the appropriate port.
❏ Do not connect or disconnect the printer while it is turning on.
USB
Connect firmly
IEEE1284 (PARALLEL)
Connect firmly
Replace the printer cover and
lowering the cover into place
Connect firmly
Connect firmly and fasten
Continued on back
