Summary of Contents for Electrohome EB20

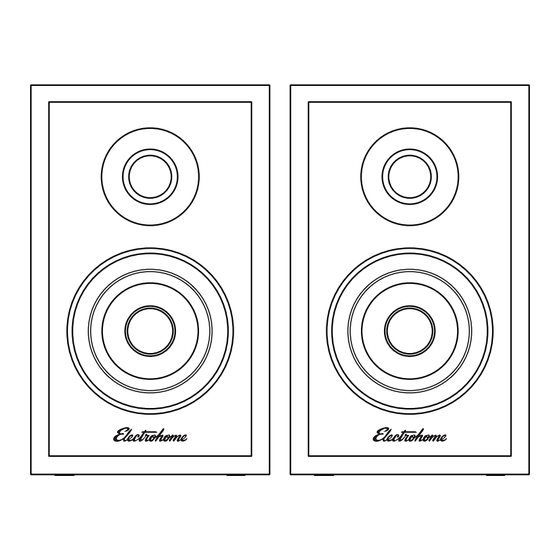

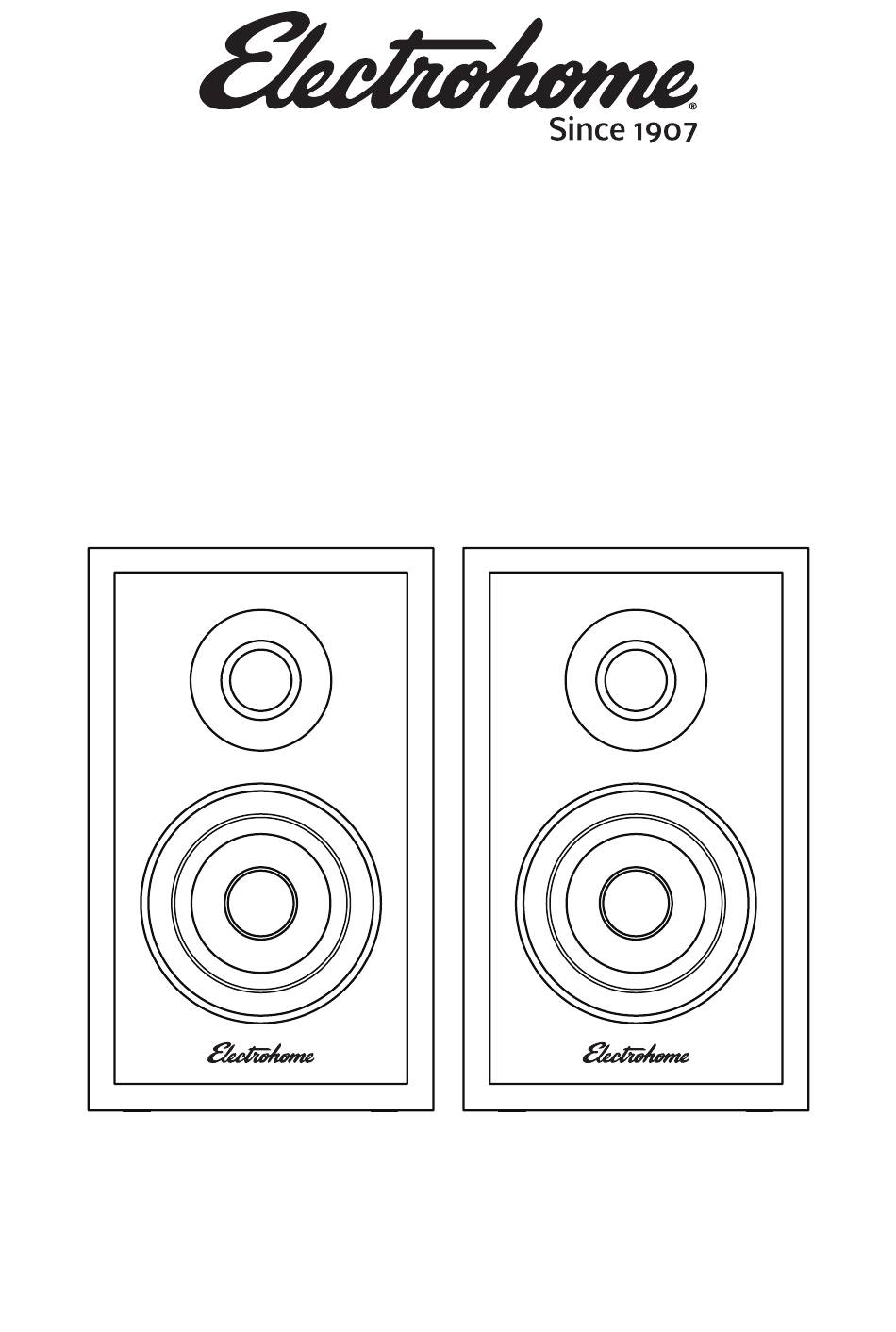

- Page 1 Berkeley Powered Bookshelf Speakers (Model: EB20) User Manual v1.0...
- Page 2 INTRODUCTION Since 1907 Electrohome has been developing high fidelity audio products & has been welcomed into homes for generations. One thing that remains the same in our more than 100 year history is our unmatched dedication to design and premium craftsmanship.
-
Page 3: Table Of Contents
TABLE OF CONTENTS What’s Included ..........................3 Product Information ........................4 First Time Setup ..........................5 Turning On/Off Unit ........................6 Source Selection .........................6 RCA Input ............................7 Bluetooth Pairing........................8 Aux Input ............................9 Frequently Asked Questions ....................10 Troubleshooting ........................11 Warranty Information ......................12 WHAT’S INCLUDED Bookshelf Speakers Power Cord... -
Page 4: Product Information
PRODUCT INFORMATION Front Tweeter Woofer Back Control Knob • Press – Change Source • Hold – Turn On/Off • Turn – Adjust Volume Bluetooth® Pairing Reset LED Indicator Aux In RESET RCA In RCA IN To Passive Speaker Power Input AC 120V~60Hz Speaker Wire Output 10. -
Page 5: First Time Setup
FIRST TIME SETUP Position the speakers with the Active Speaker on the right and the Passive Speaker on the left. Passive Speaker Active Speaker NOTE: If placing the speakers in a cabinet or on a shelf, position the front of the speakers as close as possible to the front edge of the shelf for optimum audio performance. -
Page 6: Turning On/Off Unit
TURNING ON/OFF UNIT Press the Control Knob to turn on the unit. Hold to turn off the unit. RESET RCA IN AC 120V~60Hz SOURCE SELECTION Press the Control Knob to cycle through the audio inputs. RESET RCA IN To Passive Speaker AC 120V~60Hz The Source LED will show the below color for each source. -
Page 7: Rca Input
Active Speaker. RESET RCA IN To Passive Speaker AC 120V~60Hz Note: Cable not included Press the Control Knob to select Adjust volume on EB20 as well as the RCA input (Green LED). source device. RESET RCA IN RESET To passive speaker... -
Page 8: Bluetooth Pairing
If your device cannot find volume on the EB20. “Electrohome EB20”, you can reset Bluetooth® pairing: Note: Adjust Volume on the source device as well as the EB20. Press and hold the Bluetooth® Pairing Reset Button on the back of the unit. RESET... -
Page 9: Aux Input
Speaker. RESET RCA IN To Passive Speaker AC 120V~60Hz Note: Cable not included. Press the Control Knob to select Adjust volume on EB20 as well as the AUX input (Yellow LED). source device. RESET RCA IN RESET To passive speaker... -
Page 10: Frequently Asked Questions
What is “auto-pairing” and how does it work? Auto-pairing is a convenient connection feature. If the connected Bluetooth®- enabled device leaves the connection range of the EB20 and returns at a later time, the device will automatically connect. If the device’s Bluetooth®... -
Page 11: Troubleshooting
Ensure the power cord is directly connected to a known good outlet No Audio • Check volume on the EB20 and ensure it is above 0 • Check volume on the source device and ensure it is above 0 •... -
Page 12: Warranty Information
Warranty Exclusions Electrohome products are warrantied for parts and labor for one year from date of original purchase, and are subject to the terms and conditions of the warranty. Any refurbished products that are discontinued hold a 90 day warranty from the date of original purchase. - Page 13 FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
