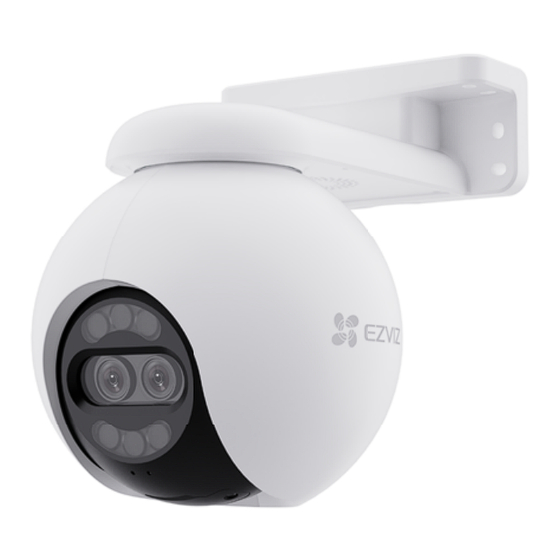

Ezviz H80x Dual Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Any and all information, including, among others, wordings, pictures, graphs are the properties of

Hangzhou EZVIZ Software Co., Ltd. (hereinafter referred to as "EZVIZ"). This user manual (hereinafter

referred to as "the Manual") cannot be reproduced, changed, translated, or distributed, partially or

wholly, by any means, without the prior written permission of EZVIZ. Unless otherwise stipulated,

EZVIZ does not make any warranties, guarantees or representations, express or implied, regarding to

the Manual.

About this Manual

The Manual includes instructions for using and managing the product. Pictures, charts, images and

all other information hereinafter are for description and explanation only. The information contained

in the Manual is subject to change, without notice, due to firmware updates or other reasons. Please

find the latest version in the

™ website (http://www.ezviz.com).

Revision Record

New release – January, 2024

Trademarks Acknowledgement

™,

™, and other EZVIZ's trademarks and logos are the properties of EZVIZ in various

jurisdictions. Other trademarks and logos mentioned below are the properties of their respective

owners.

Legal Disclaimer

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT DESCRIBED, WITH

ITS HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED "AS IS", WITH ALL FAULTS AND ERRORS,

AND EZVIZ MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION,

MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND

NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL EZVIZ, ITS DIRECTORS, OFFICERS,

EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR

INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS,

BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH

THE USE OF THIS PRODUCT, EVEN IF EZVIZ HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH

DAMAGES.

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL EZVIZ'S TOTAL

LIABILITY FOR ALL DAMAGES EXCEED THE ORIGINAL PURCHASE PRICE OF THE PRODUCT.

EZVIZ DOES NOT UNDERTAKE ANY LIABILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE AS

THE RESULT OF PRODUCT INTERRUPTION OR SERVICE TERMINATION CAUSED BY: A) IMPROPER

INSTALLATION OR USAGE OTHER THAN AS REQUESTED; B) THE PROTECTION OF NATIONAL OR

PUBLIC INTERESTS; C) FORCE MAJEURE; D) YOURSELF OR THE THIRD PARTY, INCLUDING WITHOUT

LIMITATION, USING ANY THIRD PARTY'S PRODUCTS, SOFTWARE, APPLICATIONS, AND AMONG

OTHERS.

REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY

AT YOUR OWN RISKS. EZVIZ SHALL NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL OPERATION,

PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER ATTACK,

VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, EZVIZ WILL PROVIDE

TIMELY TECHNICAL SUPPORT IF REQUIRED. SURVEILLANCE LAWS AND DATA PROTECTION

LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR JURISDICTION

BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS TO THE

APPLICABLE LAW. EZVIZ SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH

ILLEGITIMATE PURPOSES.

IN THE EVENT OF ANY CONFLICTS BETWEEN THE ABOVE AND THE APPLICABLE LAW, THE LATTER

PREVAILS.

Table of Contents

Need help?

Do you have a question about the H80x Dual and is the answer not in the manual?

Questions and answers

Summary of Contents for Ezviz H80x Dual

Page 1 INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF EZVIZ HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL EZVIZ’S TOTAL LIABILITY FOR ALL DAMAGES EXCEED THE ORIGINAL PURCHASE PRICE OF THE PRODUCT.
Page 2: Table Of Contents
1� Micro SD Card Installation (Optional) �� 6 2� Installation Location �� 6 3� Installation Procedure �� 7 4� Waterproof Kit Installation (Optional) �� 10 Operations on the EZVIZ App ��11 1� Live View �� 11 2� Settings�� 12 EZVIZ Connect ��13 1�...
Page 3: Overview
Overview 1� Package Contents Camera(x1) Drilling Template(x1) Waterproof Kit(x1) Screw Kit(x1) Power Adapter (x1) Regulatory Information(x2) Quick Start Guide(x1) The power adapter's appearance is subject to the one you have bought. 2� Basics Ethernet Port Power Port * IR light/Spotlight Lens LED Indicator *...
Page 4 When the camera is working, press and hold for about 5s and all parameters will be restored to default settings. Micro SD Card Initialize the card in the EZVIZ app before using it. (sold seperately) Recommended compatibility: Class 10, maximum space 512GB.
Page 5: Get The Ezviz App
Get the EZVIZ App 1. Connect your mobile phone to Wi-Fi (suggested). 2. Download and install the EZVIZ app by searching for “EZVIZ” in the App Store or Google Play 3. Launch the app and register an EZVIZ user account.
Page 6: Connect To The Internet
Connect to the Internet For Wi-Fi Camera 1. Connect the power adapter cable to the camera’s power port. 2. Plug the power adapter into an electrical outlet. Outlet Power Adapter DC12V 1A • The LED turning fast-flashing blue indicates that the camera is powered on and ready for network configuration. •...
Page 7 - Remove the mounting bracket of the camera. - Scan the QR code on the Quick Start Guide cover or on the inner top side of the camera. - Follow the EZVIZ app wizard to add the camera to EZVIZ. For PoE Camera 1.
Page 8 - Remove the mounting bracket of the camera. - Scan the QR code on the Quick Start Guide cover or on the inner top side of the camera. - Follow the EZVIZ app wizard to add the camera to the app.
Page 9: Installation
After installing the micro SD card, you should initialize the card in the EZVIZ app before using it. 4. In the EZVIZ app, tap the Storage Status in the Device Settings interface to check the SD card status. 5. If the memory card status displays as Uninitialized, tap to initialize it.
Page 10: 3� Installation Procedure
3� Installation Procedure The camera can be wall mounted, ceiling mounted, and pole mounted. Ceiling/Wall Mount 1. Remove the protective film from the lens. 2. Stick the drilling template onto a clean and flat surface. 3. (For cement wall only) Drill screw holes according to the template, and insert anchors. 4. Use screws (PA4x25) to fix the mounting bracket on the installation surface. 5. Push the camera onto the mounting bracket. • For ceiling mount, if the device is installed under the eaves, we recommended that the distance betweent the device and eaves should less than 20cm to prevent wall reflections during nighttime, which could affect the monitoring effect of the device.
Page 11 3. Push the camera onto the mounting bracket until hear a click sound, which means the device body is completely assembled with the mounting bracket. After the installation finished, to achieve a best monitoring view, we recommended that you can rotate the wide-angle lens horizontally by viewing the preview image on the EZVIZ app. The wide-angle lens can be rotated horizontally for 120 degree.
Page 12: 4� Waterproof Kit Installation (Optional)
4� Waterproof Kit Installation (Optional) If the camera is installed outdoors or in humid environments, please use the waterproof kit. 1. Insert the gasket into the Ethernet port of the camera. Ethernet Port Gasket 2. Thread A through the nut, the gasket and the endcap. Gasket Endcap 3.
Page 13: Operations On The Ezviz App
The app interface may be different due to version update, and the interface of the app you installed on your phone shall prevail. 1� Live View When you launch the EZVIZ app, the device page displays as shown below. You can watch a live feed, take snapshots, record videos, or choose video definition as needed.
Page 14: 2� Settings
You can select between Human Shape Detection, Image Change Detection and Vehicle Intelligent Detection Detection for your device. Message Notification You can manage the device message and EZVIZ APP notification. Audio Settings You can set relevant audio parameters for your device.
Page 15: Ezviz Connect
Once the device is found, you can control it with your voice. Speak simple commands to Alexa. Your device's name for example: "show xxxx camera," can be changed in the EZVIZ app. Each time you change the name of the device, you will need to discover the device again to update the name.
Page 16: 2� Use Google Assistant
4. Tap Works with Google, and search for "EZVIZ", where you will find "EZVIZ" skills. 5. Enter your EZVIZ username and password, and tap Sign in. 6. Tap the Authorize button to authorize Google to access your EZVIZ account, so that Google can control your EZVIZ devices. 7. Tap Return to app.
Page 17: Faq
How to use the micro SD card for local storage? 1. Make sure that there is a micro SD card inserted and that the camera is added to your EZVIZ account. Open the EZVIZ app and enter the “Device Details” interface, if the “Initialize Storage Card” button appears, you need to initialize the micro SD card first.
Page 18: Initiatives On The Use Of Video Products
However, it may also result in the infringement of a third party’s legitimate rights and interests if improper distribution, use and/or processing of video data takes place. With the philosophy of “Technology for the Good”, EZVIZ requests that every end user of video technology and video products shall comply with all the applicable laws and regulations, as well as ethical customs, aiming to jointly create a better community.
Page 19: Information For Private Households
INFORMATION FOR PRIVATE HOUSEHOLDS 1. Separate collection of waste equipment: Electrical and electronic equipment that has become waste is referred to as waste equipment. Owners of waste equipment must dispose of it separately from unsorted municipal waste. In particular, waste equipment does not belong in household waste, but in special collection and return systems.
