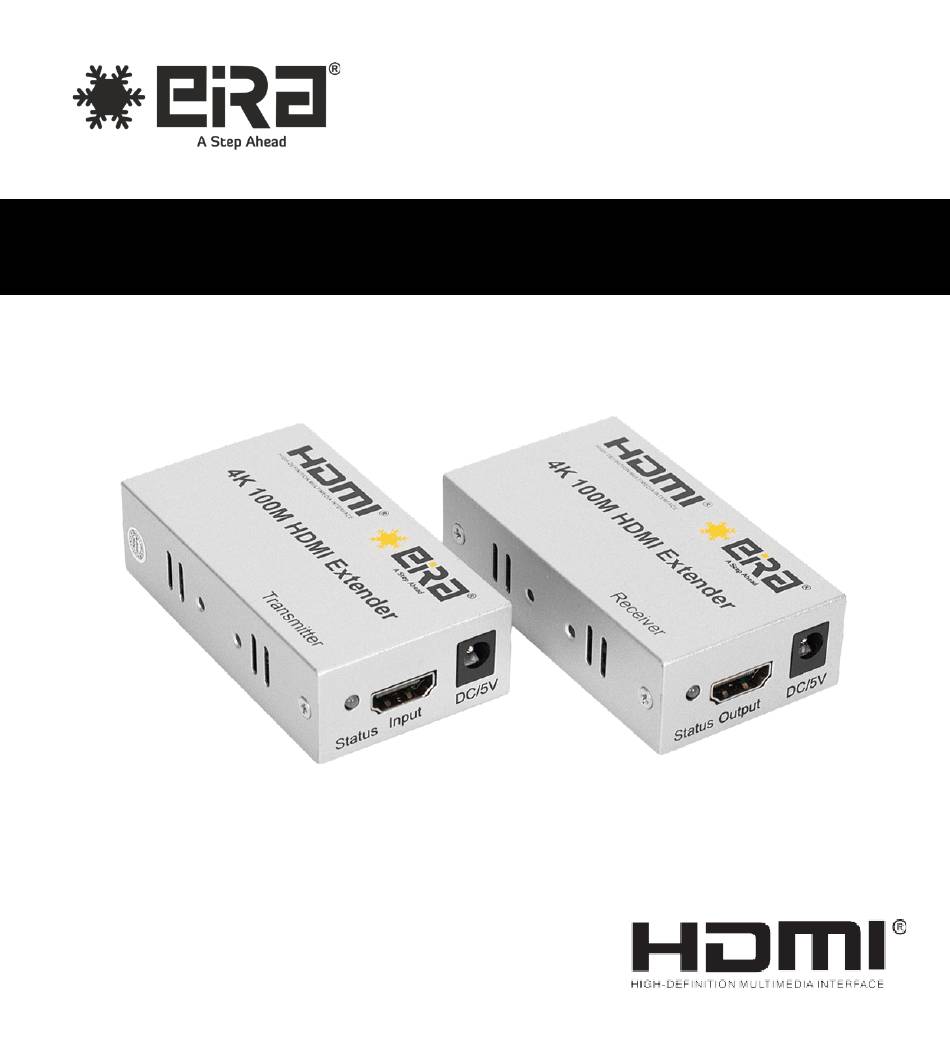

- Page 1 User Manual HDMI EXTENDER OVER SINGLE NETWORK CABLE HDMI Extender over CAT5E/6 (100m) Where every Moment comes Alive ER2851EX...
- Page 2 Introduction: An HDMI extender over CAT5E/6 (100m) is a device used to extend HDMI signals over long distances using CAT5E or CAT6 Ethernet cables. This technology allows you to transmit high- definition audio and video signals from a source device, such as a computer or Blu-ray player, to a display device, such as a TV or projector, located up to 100 meters away.
-
Page 3: Specifications
Specifications: Length of CAT5e/CAT6 cable between Rx and TX: Up to 100 meters Ø HDMI Input: 4k/1080p/720p/576p/576i/480p/480i Ø HDMI Output: 4k/1080p/1080i/720p/576p/576i/480p/480i Ø Max bandwidth: 340MHz Ø Max baud rate: 3.4x3Gbps Ø Input video signal: 0.5~1.5Volts p-p Ø Output DDC signal: 5Volts p-p (TTL) Ø... - Page 4 Physical interface diagram Transmitter Ports Function description 4K and 1080P switch button EDID CAT5e/6 Cat5e / 6 cable connection port Turn on the power, it turns blue. when there is Status signal input, it turns red, and keep flashing Input HDMI Input port DC/5V 5V DC Power input port...
-
Page 5: Connection Diagram
Connection diagram: HDMI Cable HDMI Cable Application diagrams: HDMI extender over IP is used in audio-visual conference, command and control center, ticketing platform, home theater, multi-media teaching, conference system and so on. Home Theatre Audio-Visual Conference Command and Control Center The Package includes: 1.
