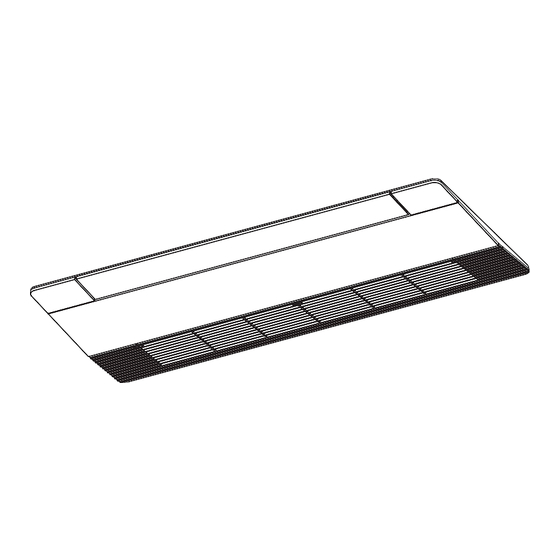

AIR CONDITIONER (MULTIPLE TYPE)
Owner's Manual
Scan QR CODE to access installation and owner's manual on website.
https://www.toshiba-carrier.co.th/manuals/default.aspx
Manual are available in EN/FR/DE/IT/ES/PT/NL/EL/RU/SV/
FI/DA/NO/PL/BG/RO/ET/LV/HR/CS/SK/SL/HU/LT.
Indoor Unit
R32
Model name:
1-Way Cassette type
RAS-M05G3YVG-E
RAS-M07G3YVG-E
RAS-M10G3YVG-E
RAS-M13G3YVG-E
RAS-M16G3YVG-E
RAS-M18G3YVG-E
RAS-M24G3YVG-E
English
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Toshiba RAS-M05G3YVG-E
Summary of Contents for Toshiba RAS-M05G3YVG-E
- Page 1 AIR CONDITIONER (MULTIPLE TYPE) Indoor Unit Owner’s Manual Model name: 1-Way Cassette type RAS-M05G3YVG-E RAS-M07G3YVG-E RAS-M10G3YVG-E RAS-M13G3YVG-E RAS-M16G3YVG-E RAS-M18G3YVG-E RAS-M24G3YVG-E Scan QR CODE to access installation and owner’s manual on website. https://www.toshiba-carrier.co.th/manuals/default.aspx Manual are available in EN/FR/DE/IT/ES/PT/NL/EL/RU/SV/ FI/DA/NO/PL/BG/RO/ET/LV/HR/CS/SK/SL/HU/LT. English...
-
Page 2: Table Of Contents
– 1 – Contents Original instruction Thank you very much for purchasing this Air Conditioner. Please read this Owner’s Manual carefully before using your Air Conditioner. Part names ........................2 • Be sure to obtain the “Owner’s Manual ” and “Installation Manual” from constructor (or dealer). Request to constructor or dealer Part names and functions of the remote controller ........... -
Page 3: Part Names
■ Information on the transportation, handling and storage of the Part names carton ■ Indoor unit ◆ Examples of indication on the carton Symbol Description Symbol Description Center hook Push the center hook for open the air inlet grille. Keep dry Do not drop Hook lock grille Horizontal louver / Air discharge... -
Page 4: Request To Constructor Or Dealer 2 Part Names And Functions Of The Remote Controller
– 3 – ■ Indicatios Part names and functions of the remote All icons on the display are shown for this explanation. Operations are not accepted when “SETTING” is fl ashing. controller Remote controller model name: RBC-ASCU1 LCD back-light lights for 15 seconds during remote controller operation. All indicators are displayed in the display example below. -
Page 5: Operation
Operation NOTE Auto Changeover • When in Auto Mode, the unit selects the operating mode (cooling, heating or fan only) based on the user set When you use the air conditioner for the fi rst time or change the settings, follow the procedures below. point temperature. -
Page 6: Adoption Of R32 Refrigerant 4 Off Timer Operation
– 5 – OFF timer operation Adjustment of wind direction OFF timer: The indoor unit stops when the set time is reached. To improve the cooling / heating performance, ▼ For cooling The louver can be adjusted to four steps. change the louver angle for each operation. -
Page 7: Maintenance
Maintenance NOTE • When stopped, the louver closes automatically. • The louver automatically becomes horizontal or closed at the start of heating operation, defrosting operation, or when the set temperature becomes the same as room temperature. If you set the swing or wind direction at WARNING this time, the remote controller display will be the setting, but the louver will not move. -
Page 8: Troubleshooting
– 7 – Check periodically Troubleshooting • If the unit is used for a long time, parts may deteriorate and cause malfunction or bad drainage of dehumidifi ed water depending on the heat, humidity, or dust. • In addition to the usual maintenance, it is recommended that you have the unit checked and maintained by the Check the points described below before requesting repair. -
Page 9: Operations And Performance
■ Confi rmation and check Operations and performance If a problem occurs with the ▼ Check before running ▼ Protective device air conditioner, the OFF timer • Check whether the earth wire is cut or disconnected. • Stops operation when the air-conditioner is indicator alternately shows •... -
Page 10: Been Given Supervision Or Instruction Concerning Use Of The 9 Installation
Heating • Do not install the air conditioner in any place within 1 m from a TV, stereo, or radio set. If the unit is installed in RAS-M05G3YVG-E 13 (4) such place, noise transmitted from the air conditioner affects the operation of these appliances. - Page 11 Warnings on Refrigerant Leakage Important Check of Concentration Limit 2) When there is an effective opening with the adjacent room for ventilation of leaking refrigerant gas The room in which the air conditioner is to be installed requires a design that in the event of refrigerant (opening without a door, or an opening 0.15% or larger than the respective floor spaces at the top or bottom gas leaking out, its concentration will not exceed a set limit.
- Page 12 – 11 –...
- Page 13 144/9 MOO 5, BANGKADI INDUSTRIAL PARK, TIVANON ROAD, TAMBOL BANGKADI, AMPHUR MUANGPATHUMTHANI, PATHUMTHANI 12000, THAILAND 1136450201A...
