PELICAN
User Guide
Document Number:
Document Version:
Product Names and
T-Codes:
Release Date:
TEKTELIC Communications Inc.
Confidential
ASSET TRACKER
T0006940
3

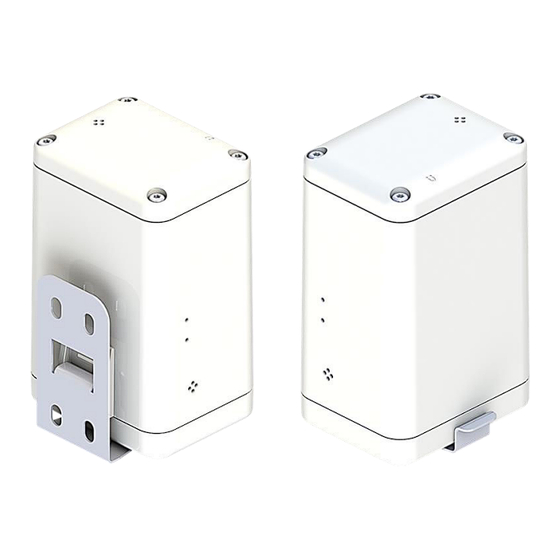

PELICAN Enterprise Asset
Tracker (Outdoor)
December 8, 2023
User Guide
PELICAN|TUNDRA UG
T0006906 – Wall-Mount
T0006906_PELICAN _UG_v3
Page 1 of 23
Advertisement
Table of Contents
Related Manuals for TEKTELIC Communications PELICAN
Summary of Contents for TEKTELIC Communications PELICAN
- Page 1 PELICAN|TUNDRA UG PELICAN ASSET TRACKER User Guide Document Number: T0006940 Document Version: Product Names and PELICAN Enterprise Asset T0006906 – Wall-Mount T-Codes: Tracker (Outdoor) Release Date: December 8, 2023 TEKTELIC Communications Inc. T0006906_PELICAN _UG_v3 User Guide Confidential Page 1 of 23...
-
Page 2: Table Of Contents
Contents Product Description ......................... 3 Overview........................... 3 Specifications........................3 Installation ..........................5 Included Product and Installation Material ..............5 Unpacking and Inspection ....................5 Commissioning ......................... 5 Activation ......................... 5 Default Configuration ....................... 6 Battery Replacement......................6 Reconfiguration ........................ 7 Reset Function ........................ -
Page 3: Product Description
✔ Magnetic Sensor ✔ Accelerometer ✔ Activity LEDs 1.2 Specifications The PELICAN specifications are listed in Table 1-. The main sensing functions are described in the following subsections. TEKTELIC Communications Inc. T0006906_PELICAN _UG_v3 User Guide Confidential Page 3 of 23... - Page 4 Table 1-2: PELICAN BLE Asset Tracker Specifications. Parameter Specification Environmental Rating IP67 Enclosures and Mounting Custom design by TEKTELIC Operating Temperature -40°C to 70°C Storage Temperature for Optimal -25° to 55°C Battery Life Operating Relative Humidity 5% - 95% non-condensing...
-
Page 5: Installation
1. Place the magnet for 3 to 10 seconds at the magnetic activation site as shown in Figure 2-1 below. GREEN 2. Device activation will be displayed by LEDs turning on. 3. Once activated, the device will automatically begin the join process. TEKTELIC Communications Inc. T0007377/6906_PELICAN _UG_v2.0 User Guide Confidential Page 5 of 23... -
Page 6: Default Configuration
GREEN LED active blinking). 2.5 Default Configuration Error! Reference source not found. lists the default reporting behaviour of the PELICAN. Reporting behaviour can be changed from default through OTA DL commands (see how to do it Basic Downlinks section). - Page 7 Figure 2-4: Proper Replacement Orientation of the Battery Cover 4. Reassemble the cover to the chassis by using the 4x Phillips head screws, using a #1 size screwdriver and up to 0.3 Nm of torque. TEKTELIC Communications Inc. T0007377/6906_PELICAN _UG_v2.0 User Guide...
-
Page 8: Reconfiguration
DL Rx windows. 2.8 Reset Function To physically reset PELICAN perform same steps as to get in out of DEEP SLEEP state: 1. Place magnet against the enclosure at the magnetic activation site as shown in Error! Reference source not found.. -
Page 9: Power-On And Network Join Patterns
1 hour back-off to conserve power. 2.9.2 Normal Operation Patterns After the Device has joined the network: flashes after transmitting an uplink. GREEN flashes after receiving a downlink TEKTELIC Communications Inc. T0007377/6906_PELICAN _UG_v2.0 User Guide Confidential Page 9 of 23... -
Page 10: Functions
3 Functions 3.1 Magnetic Sensor The PELICAN variants are equipped with a magnetic hall-effect sensor included to address these purposes: 1. To wake the device from DEEP SLEEP as described in Section 2.4. 2. To put the device to DEEP SLEEP. -
Page 11: Tracker Mode
If a new BLE scan occurs before the results of the previous scan have been sent, the old scan results will be discarded. TEKTELIC Communications Inc. T0007377/6906_PELICAN _UG_v2.0 User Guide Confidential... -
Page 12: Beacon Mode
3.3 Temperature and Relative Humidity Sensor The PELICAN can measure and report the MCU temperature. This is a temperature measurement using a sensor located in the device microprocessor. 3.4 Accelerometer Sensor The PELICAN integrates a 3-axis accelerometer for motion sensing, with optional disabling. -
Page 13: Basic Downlinks
4 Basic Downlinks The PELICAN uses a "tick" system for reporting data. Generally, the device will report the most important data every tick. A tick can be measured in seconds. There are two sets of settings that must be configured in conjunction - "Core reporting tick in seconds"... - Page 14 "BD_ADDR_0": "ec 0c 1d c4 9a 3e", "RSSI_0": -74 "BD_ADDR_0": "61 61 ce ff 62 88", "RSSI_0": -78 "BD_ADDR_0": "c8 af 28 20 7a 18", "RSSI_0": -78 "BD_ADDR_0": "4d 36 29 96 34 8d", TEKTELIC Communications Inc. T0007377/6906_PELICAN _UG_v2.0 User Guide Confidential Page 14 of 23...
- Page 15 "RSSI_0": -79 "BD_ADDR_0": "4c 87 5d 78 56 87", "RSSI_0": -79 "BD_ADDR_0": "62 2c 97 68 87 5d", "RSSI_0": -80 "errors": [], "warnings": [] View from Leapx TEKTELIC Communications Inc. T0007377/6906_PELICAN _UG_v2.0 User Guide Confidential Page 15 of 23...
-
Page 16: Device Configuration With Atlas
5 Device Configuration with ATLAS To perform more configuration and read the data of the PELICAN device you can use TEKTELIC’s complementary service ATLAS at www.atlas.tektelic.com. There are two ways to access ATLAS: 1) using in Offline mode Figure 5-1 Login as offline mode... - Page 17 Figure 5-3 Login with Network server credentials Figure 5-4 Select PELICAN Decoder, application and the device For more information follow this link https://support.tektelic.com/portal/en/kb/articles/kona- atlas TEKTELIC Communications Inc. T0007377/6906_PELICAN _UG_v2.0 User Guide Confidential Page 17 of 23...
-
Page 18: Data Converters
TEKTELIC’s data converters conform to the LoRa Alliance Payload Codec Specification and can be used with any 3 party Network Server / Application Server that supports this specification. https://resources.lora-alliance.org/technical-specifications/ts013-1-0-0-payload-codec-api TEKTELIC Communications Inc. T0007377/6906_PELICAN _UG_v2.0 User Guide Confidential Page 18 of 23... - Page 19 Network Server. In the TEKTELIC NS under the "advanced network settings" tab change the configuration of the "default channel mask" to reflect the number of channels used by the gateway used. TEKTELIC Communications Inc. T0007377/6906_PELICAN _UG_v2.0 User Guide Confidential...
-
Page 20: Compliance Statements And Safety Precautions
PELICAN|TUNDRA UG 8 Compliance Statements and Safety Precautions 8.1 Compliance Statements Federal Communications Commission: This device complies with Part 15 of the FCC Rules. Operation is subject to following conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. -
Page 21: Safety Precautions
Do not mix batteries. Store unused batteries in their original packaging away • Do not leave discharged batteries in from metal objects. • equipment. Do not mix or jumble batteries TEKTELIC Communications Inc. T0007377/6906_PELICAN _UG_v2.0 User Guide Confidential Page 21 of 23... - Page 22 Rx ....... Receive, receiver, etc. SW ......SoftWare TRM ......Technical Reference Manual Tx ........ Transmit, Transmitter, etc. UG ......User Guide UL ....... UpLink US ....... United States v ........Version TEKTELIC Communications Inc. T0007377/6906_PELICAN _UG_v2.0 User Guide Confidential Page 22 of 23...
- Page 23 Tundra sensors to 1 hour. Corrected model T-code (T00006909 August 10, 2022 Released Shawn Morrison should be T00006906) • Updated to include only information relating to PELICAN and TUNDRA variants to reflect updated mechanical design. • Updated specifications. December 5, 2023 Draft Carter Mudryk •...
