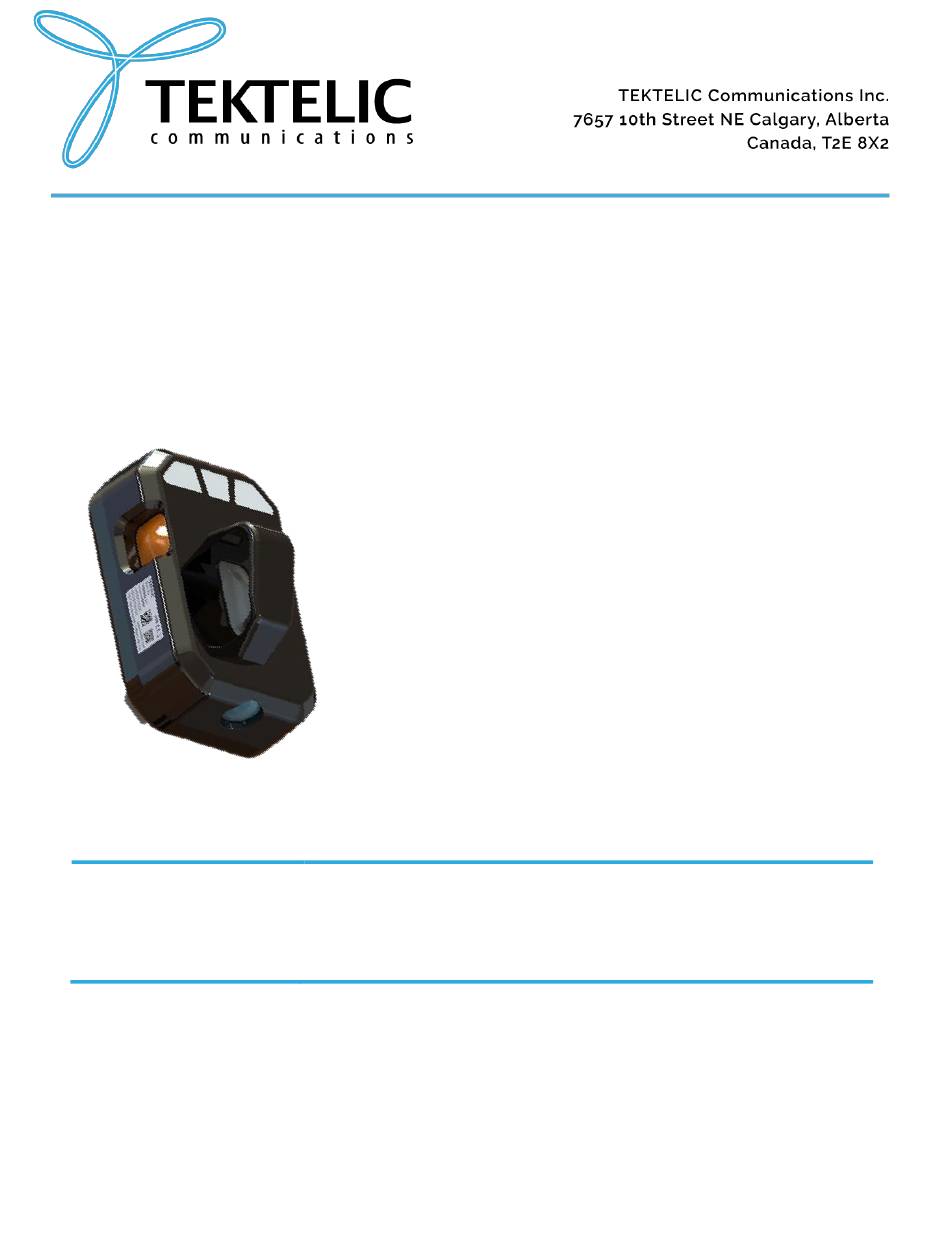

TEKTELIC Communications SEAL User Manual

Wearable gps tracker
Hide thumbs Also See for SEAL:

Advertisement

Quick Links

SEAL
Wearable GPS Tracker
User Guide
Document Version:
Product Name:
Issue Date:
PROPRIETARY:
The information contained in this document is the property of TEKTELIC Communications Inc. Except as specifically
authorized in writing by TEKTELIC, the holder of this document shall keep all information contained herein confidential,
and shall protect the same in whole or in part from disclosure to all third parties.
© 2023 TEKTELIC Communications Inc., all rights reserved.
All products, names, and services are trademarks and registered trademarks of their respective companies.
v2
SEAL Wearable GPS Tracker
May 30, 2024

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SEAL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TEKTELIC Communications SEAL

  • Page 1 Issue Date: PROPRIETARY: The information contained in this document is the property of TEKTELIC Communications Inc. Except as specifically authorized in writing by TEKTELIC, the holder of this document shall keep all information contained herein confidential, and shall protect the same in whole or in part from disclosure to all third parties.
  • Page 2: Table Of Contents

    Push Buttons ........................11 Basic Downlinks ........................12 Device Configuration with ATLAS ..................14 Data converters ........................16 Compliance Statements ......................17 Acronyms and Glossary ......................... 19 SEAL Wearable GPS Tracker User Guide T0007705_UG Version 2 TEKTELIC Communications Inc. Page 2 of 20...
  • Page 3: Product Description

    • Two sets of LEDs (one at the top, one at the front) for indicating emergency status, low battery, and system sleep mode. SEAL comes in two versions, with and without a harness clip. The harness clip detects if the unit is clipped in place or not and triggers a local alarm.
  • Page 4 ✓ GNSS Diagnostics info Figure 1-1, Figure 1-2, and Figure 1-2 below illustrate the clip and the non-clip variants of SEAL. Figure 1-1: The SEAL Wearable GPS Tracker – Clip Variant. Figure 1-2: The SEAL Wearable GPS Tracker – Non-Clip Variant.
  • Page 5: Specifications

    Figure 1-3: SEAL – LEDs and buttons (Harness clip version) 1.2 Specifications The specifications for SEAL are listed in Table 1-3. Table 1-3: SEAL Wearable GPS Tracker Specifications Parameter Specification Use Environment Indoor and outdoor locations Form Factor Wearable Environmental Rating...
  • Page 6 Relative accuracy: < ±0.06 ℎ���� (or ± 0.5��) Absolute accuracy: < ±1 ℎ���� (±8��) Barometric Pressure Battery Lifetime 16 months Table 1-4: SEAL Battery Life Estimation Reporting Frequency SEAL Estimated Battery Life (days) 1 Tx / 24 Hours 5475 1 Tx / 1 Hour...
  • Page 7: Operating Instructions

    • Always replace all batteries together as a set with fresh new batteries. 2.3 Unpacking and Inspection The following should be considered during the unpacking of a new SEAL product: • Inspect the shipping carton and report any significant damage to TEKTELIC.
  • Page 8: Activation

    2.5 Activation SEAL is shipped in a closed enclosure with the batteries installed and engaged. However, SEAL is in a state of DEEP SLEEP. To activate the unit: 1. Press the mute button for 1s, then release the mute button.
  • Page 9: Mounting

    Figure 2-3: The Tracker clipped to a belt clip (Left) and harness clip (Right). 2.9 Battery Replacement The SEAL module requires three Energizer L91 AA size Lithium Iron Disulfide “Ultimate Lithium” batteries. Always replace all batteries together as a set, observing polarity markings.
  • Page 10: Led Behaviour

    2.10 LED Behaviour Figure 1-3 for the location and identification of the SEAL LEDs. Figure 2-5: SEAL LEDs. LED behavior during the boot and join process is described in Table 2-2. Table 2-2: LED Behavior LED Pattern Meaning All front LEDs are on...
  • Page 11: Activation, Putting To Deep Sleep, Resetting, And Shutting Down

    Error! Reference source not found. shows how to activate, put to DEEP SLEEP, reset, or completely turn off the SEAL Tracker. Table 2-3: How to Activate, Put to DEEP SLEEP, Reset, or Shut Down SEAL Desired Action What to Do Activate out of DEEP SLEEP Press the mute button for 1s, then release the mute button.
  • Page 12: Operation

    3 Operation 3.1 Features Details SEAL is equipped with a number of different features that are described in the table below. Table 3-2: SEAL Features Feature Description GNSS Serves functions like localization, danger zone monitoring and data logging. It supports GPS, GLONASS, Galileo, and BeiDou, enhancing position availability even in dense urban areas.
  • Page 13: Basic Downlinks

    4 Basic Downlinks SEAL uses a "tick" system for reporting data. Generally, the sensor will report the most important data every tick. A tick can be measured in seconds. There are two sets of settings that must be configured in conjunction - "Core reporting tick in seconds"...
  • Page 14 "BD_ADDR_0": "ac 23 3f 8f 96 b1", "RSSI_0": -86 "BD_ADDR_0": "ac 23 3f 8f 96 b2", "RSSI_0": -85 LeapX view Figure 4-2 LeapX application SEAL Wearable GPS Tracker User Guide T0007705_UG Version 2 TEKTELIC Communications Inc. Page 14 of 20...
  • Page 15: Device Configuration With Atlas

    5 Device Configuration with ATLAS To perform more configuration or read the data of SEAL device you can use TEKTELIC’s complementary service, ATLAS. There are two ways to access ATLAS: 1) Using in Offline mode Figure 5-1 Login as offline mode...
  • Page 16 2) with your TEKTELIC Network Server Credentials Figure 5-3 Login with Network server credentials Figure 5-4 Select SEAL Decoder, application and the device For more information follow this link https://support.tektelic.com/portal/en/kb/articles/kona-atlas SEAL Wearable GPS Tracker User Guide T0007705_UG Version 2 TEKTELIC Communications Inc.
  • Page 17: Data Converters

    TEKTELIC’s data converters conform to the LoRa Alliance Payload Codec Specification and can be used with any 3 party Network Server / Application Server that supports this specification. https://resources.lora-alliance.org/technical-specifications/ts013-1-0-0-payload-codec-api SEAL Wearable GPS Tracker User Guide T0007705_UG Version 2 TEKTELIC Communications Inc.
  • Page 18: Compliance Statements

    (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device. SEAL Wearable GPS Tracker User Guide T0007705_UG Version 2 TEKTELIC Communications Inc. Page 18 of 20...
  • Page 19 WARNING: This product can expose you to chemicals including lead, nickel, and carbon black, which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. SEAL Wearable GPS Tracker User Guide T0007705_UG Version 2 TEKTELIC Communications Inc.
  • Page 20: Acronyms And Glossary

    RSSI ......received signal strength indicator Rx ......receiver, receive SBAS ......Satellite-Based Augmentation System Tracker ..... any variant of the SEAL Wearable GPS Tracker TTFF ......time to first fix TRM ......technical reference manual Tx ..
