Operating Manual
PACKAGE
1. Laser distance meter – 1pc.
2. Batteries (type ААА) - 2 pcs.
3. User manual – 1 pc.
SPECIFICATIONS
Working range
Smallest unit displayed
Measuring accuracy
Laser type
Continuous measurement (tracking)
Display backlight
Automatic shutdown of laser
Automatic shutdown of laser distance meter
Storage temperature
Working temperature
Battery
Battery life
Dimensions
Weight
* Use a reflecting plate to increase the measurement range during daylight or if the target has poor
reflective properties.
** In favorable conditions (good target surface properties, room temperature) up to 10 m. In
unfavorable conditions, such as intense sunshine, poorly reflecting target surface or considerable
temperature variations, accuracy can decrease at distance over 10m.

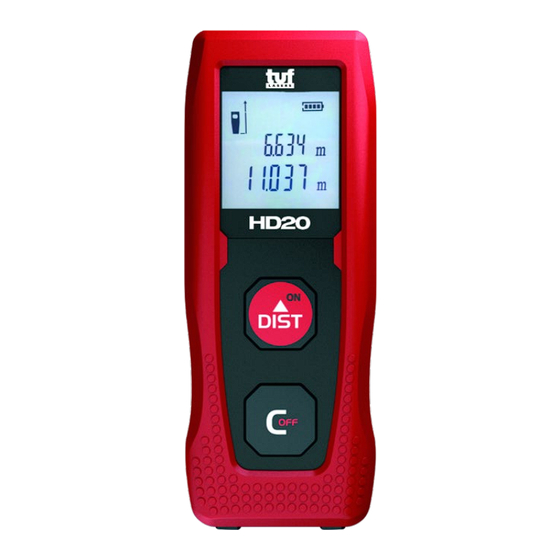

PRODUCT DESCRIPTION
1. Display
2. Switch on /turn on laser beam /make measurement/continuous
measurement
3. Switch off/clear.
TUF
HD 20
0,2...20 m*
1 mm
±3 mm**
Class II, 630-670 nm, < 1 mW
V
V
30 sec.
180 sec.
-10...+60 °С
0...+40 °С
2 х 1.5V AAA LR3 (alkaline)
up to 5000 measurements
100 х 40 х 24,7 mm
0,08 kg
Advertisement
Table of Contents
Related Manuals for TUF HD 20
Summary of Contents for TUF HD 20

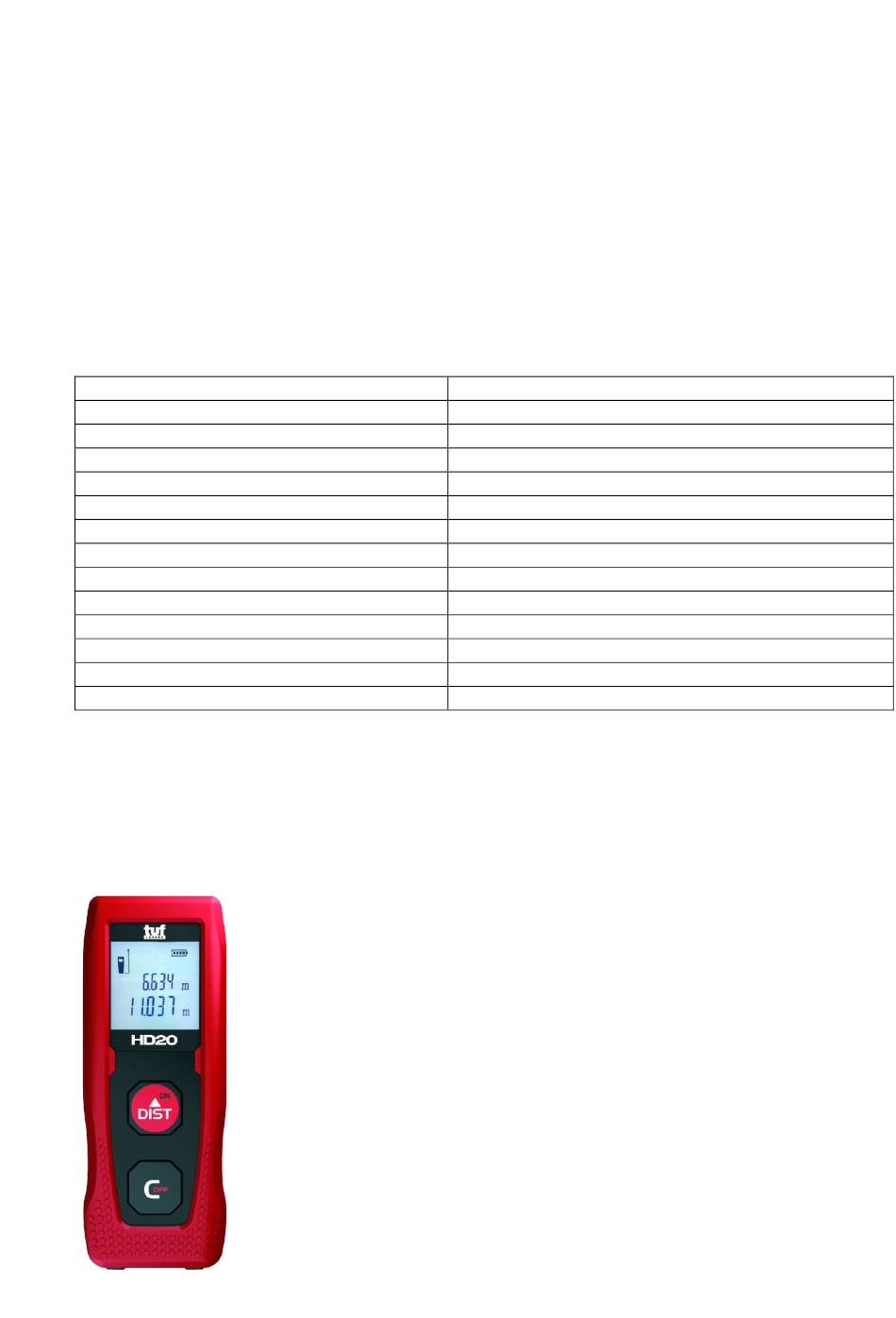

- Page 1 Operating Manual HD 20 PACKAGE 1. Laser distance meter – 1pc. 2. Batteries (type ААА) - 2 pcs. 3. User manual – 1 pc. SPECIFICATIONS Working range 0,2…20 m* Smallest unit displayed 1 mm Measuring accuracy ±3 mm** Laser type Class II, 630-670 nm, <...
-
Page 2: Operation
Display Main display line Secondary display line Battery charge level Measuring unit Laser beam indication Reference point OPERATION Insert/replace batteries Remove the battery cover. Insert the batteries, observing correct polarity. Put the battery cover back. Remove the batteries when the device is not used for a long time to avoid corrosion and battery depletion. -
Page 3: Message Codes
Measuring unit Press simultaneously buttons to select the reference point – m (meter) or ft (foot). Measurements 1. Single distance measurement Short press button to switch on the device. Laser beam will be on Point the laser beam at the target and short press button for single distance measurement The result of measurement will appear in the main line on the display. -
Page 4: Safety Regulations
Carry out measurements within the range Outside of measuring range acceptable for this device. Switch on/off the device several times. If Hardware error this error still appears, please contact the distributor or authorized service center. SAFETY REGULATIONS The user manual should be read carefully before you use the device for the first time. Unintended use of the device can be dangerous for human’s health and cause serious injury. -
Page 5: Warranty
6) After warranty works are carried out by TUF warranty period is not renewed or extended. 7) TUF is not liable for loss of profit or inconvenience associated with a defect of the device, the rental cost of alternative equipment for the period of repair.
