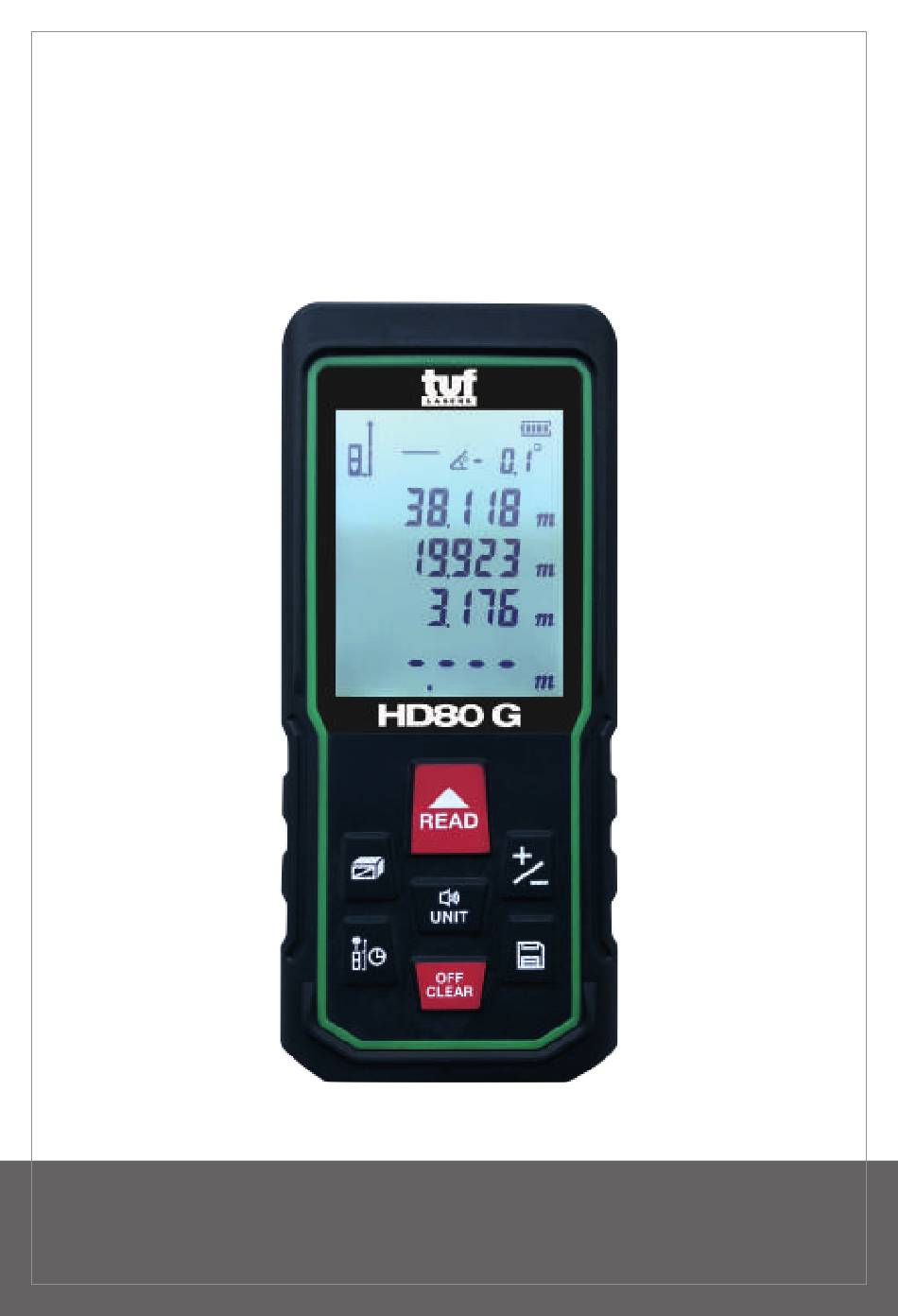

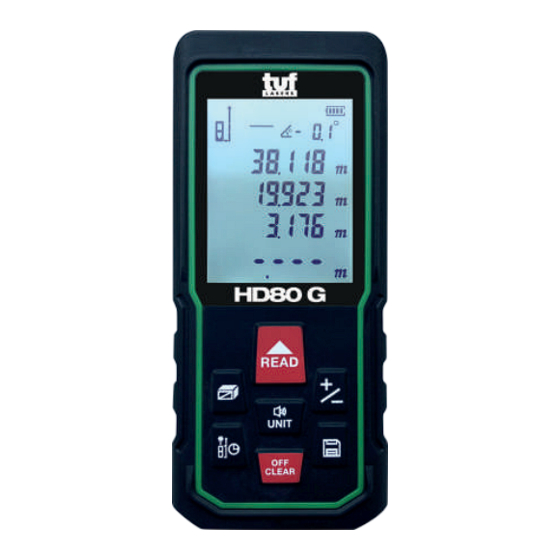

- Page 1 Operating Manual TUF HD 80 Laser Distance Meter...
- Page 2 >1/4 S Safety regulations Please read the safety regulations and operation guide carefully before operating. Please read all of the operational guide and safety regulations in this manual before operation . Improper operations without complying with this manual guided could cause damage to the device, influence on measurement result or bodily injury to the user.
- Page 3 DISPLAY/KEYBOARD Display Power Supply Bluetooth Record Length,Area, Volume and Pythagorean Laser on Angle Maximum Azimuth Angle Auxiliary Display Minimum Major Display Keyboard Turn on/Measuring Area/Volume/ Pythagorean/ Distance Between Any Two Points Unit/Sound Addition/ Subtraction Reference Point/ Delay Measurement Save Turn off/Clear up...
-
Page 4: Unit Setting
Battery Installation Discharge the battery door on the back of device, and place battery according to correct polarity, then cover the battery door. Only 1.5 V AAA alkaline battery is applied to the meter. If not used for a long time, please take out the battery to avoid battery corrosion to meter body. -
Page 5: Backlight On/Off
Units: Length Area Volume 0.000m 0.000m 0.000m 0.00m 0.00m 0.00m 0.0in 0.00ft 0.00ft 0.00ft 0.00ft 0.00ft 0 1/16 in 0.00ft 0.00ft 0'00"1/16 0.00ft 0.00ft Changing Reference Point Short press key to change the reference point . System default reference point is bottom. Delay Measurement Long press , a second number shows in the... -
Page 6: Continuous Measuring
Self-Calibration This function can keep the precision of the device. Instruction: Power off, press button till "CAL" and a figure under it display on the screen. User can adjust the figure with button according to the accuracy of the meter. Adjusting range: -9 to 9mm, then press button to save the calibration result. - Page 7 The device calculates and shows the result in the major display area. The resent measuring result of length is showed in the auxiliary display area . Press , clear off the result and measuring again if necessary. Press again to exit the mode. Volume Measurement Press button twice to enter volume...
- Page 8 Press to measure the height of the wall first; Press to measure the bottom edge of the first wall, get the first area in the major display area; Press to measure the bottom edge of another wall, get the sum of these two walls. Repeat these operations for more walls.
- Page 9 There are four Pythagoras modes in case that user gets difficulties to measure directly. 1. Calculate the length of two legs by measuring the hypotenuse and the angle. Short press four times, when the hypotenuse blinking, Press , measure the length of hypotenuse (a), and calculates the angle (α) between the bevel and the bottom at the same time.
- Page 10 3. Press six times till the one side of blinking on the screen. Press , measure the length of one side (a) Press , measure the length of the median line (b) Press , measure the length of another side (c) Device calculates the length of the leg in full line (x) 4.
-
Page 11: Addition / Subtraction
Press , measure the distance of (a) Press , measure the distance of (b) Device calculate the distance c between a and b α Addition / Subtraction The device can be used for length addition and subtraction. Press to select the function once get the length measuring result. - Page 12 Area cumulative function: Measure the first area as showing in PIC1. Then press button , and measure the second area as showing in PIC2, there is a "+" in the left bottom. At last, press button get the summation result of these two areas which is showing in PIC3.
-
Page 13: Angle Measurement
When the storage is full, the screen will display mark. Angle Measurement The angle information is displayed at the top of the screen, and the angle measurement range is -90.0° to 90.0° . Tips You may get some warning information as below: Info Cause Solution... -
Page 14: Specifications
Technology speci cations: ITEM SPECIFICATIONS Working Range 0,05 - 80 m Distance measurement ±2mm precision Distance Calculation Between Any Two Points Continuous measurement function Area measurement function Volume measurement function Pythagorean proposition Full mode measurement function Painter function Angel function Add and subtract meas- urement function Min/Max value... - Page 15 Typical Tolerance: ±2mm, when reflectivity 100% (white surface), environment light <2000 LUX. 25°C Tolerance is usually affected by the distance, reflectivity, and environment light etc. It probably gets tolerance around ± (2mm+0.2mm/m) . Instrument Maintenance: The meter should not be stored in high temperature and strong humidity environment for long time;...
