Page 1: Operation Manual

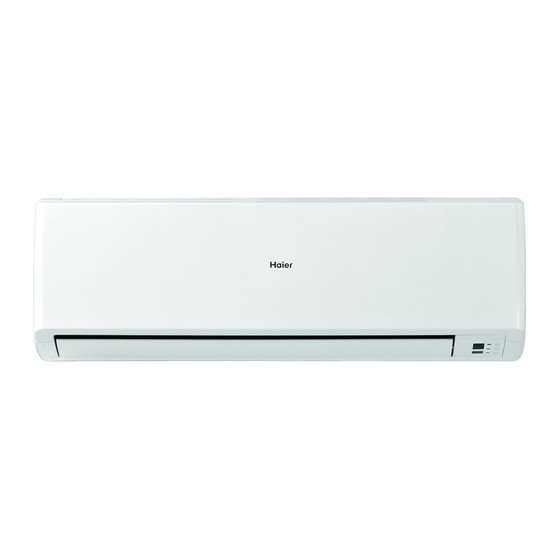

SPLIT TYPE ROOM AIR CONDITIONER OPERATION MANUAL HSM09HVE03/R2(DB) 2HUM14H03/R2(DB) Please read this operation manual before using the air conditioner No.0010515079... - Page 2 Before starting the air conditioner, read the Before disposing an old air conditioner that information given in the User's Guide caref- goes out of use, please make sure it's inop- ully. The User's Guide contains very impor- erative and safe. Unplug the air conditioner tant observations relating to the assembly, in order to avoid the risk of child entrapment.
- Page 3 3. If the fuse of indoor unit on PC board is broken,please change it with the type of T. 3.15A/ 250V. If the fuse of outdoor unit is broken,change it with the type of T.25A/250V...
-
Page 4: Safety Instruction
Do not attempt to install the air conditioner by yourself because improper works may cause electric shock, fire, water leakage. lnstallation in a inadequate place may cause accidents. Do not install in the following place. CAUTION Do not install in the... - Page 5 PROHIBITION PROHIBITION CAUTION Take fresh air occasionally especially Do not operate the switch with Do not use for the purpose of storage of food, art work, precise equipment, when gas appliance is running at the wet hand. breeding, or cultivation.
-
Page 6: Parts And Functions
Vertical flap (adjust up and down air flow. Don't adjust it manually) Horizontal louver (adjust left and right air flow) For multi-split type, the power plug is on the outdoor unit Outdoor unit OUTLET CONNECTING PIPING AND ELECTRICAL WIRING INLET... -
Page 7: Parts And Functions
Used for unit start and stop. NOTE:(1) The following functions and related displays are not available: 17 30 (2) Cooling only unit do not have functions and displays related with heating. - Page 8 If the remote controller can't run normally during operation, please remove the batteries and reload several minutes later. Hint: Remove the batteries in case unit won't be in usage for a long period. If there are any display after taking-out, just need to press reset key.
-
Page 9: Health Operation
The anion generator in the air conditioner can generate a lot of anion effectively balance the quantity of position and anion in the air and also to kill bacteria and speed up the dust sediment in he room and finally clean the air in the... -
Page 10: Auto Operation
Remote controller: AUTO COOL HEAT Then Select Auto operation On the displaying board,colorful displaying bar will be white. 3.Select temp.setting Press TEMP. button Every time the button is pressed, temp.setting increase 1 C,if kept depressed, it will increase rapidly Every time the button is pressed, temp.setting... -
Page 11: Cool Operation
Every time the button is pressed, temp.setting decrease 1 C,if kept depressed, it will decrease rapidly FRESH Select a desired temperature. Press FAN button. For each press, fan speed changes as follows: POWER/SOFT 4.Fan speed selection Remote controller: AUTO Air conditioner is running under displayed fan speed. -
Page 12: Dry Operation
C,if kept depressed, it will decrease rapidly Select a desired temperature. POWER/SOFT 4.Fan speed selection Press FAN button. For each press, fan speed changes as follows: Remote controller: AUTO Air conditioner is running under displayed fan speed. In DRY mode, when room temperature becomes lower than temp.setting+2... -
Page 13: Fan Operation
Press ON/OFF button, the unit stops. About FAN operation In FAN operation mode, the unit will not operate in COOL or HEAT mode but only in FAN mode ,AUTO is not available in FAN mode.And temp.setting is disabled. In FAN mode,SLEEP and POWER/SOFT operation is... -
Page 14: Heat Operation
Remote controller: AUTO Air conditioner is running under displayed fan speed IN HEAT mode, warm air will blow out after a short period of the time due to cold-draft prevention function. When FAN is set to AUTO, the air conditioner automatically adjusts the fan speed according to room temperature. -
Page 15: Air Flow Direction Adjustment
: remote controller: Pos.1 Pos.2 Pos.3 Pos.4 Pos.5 Pos.6 Pos.7 Pos.8 The horizontal louvers will swing according to the above positions. Note:When restart after remote turning off, the remote controller will automatically memorize the previous set swing position. -
Page 16: Sleep Operation
C further. decrease by 2 C further. After more The unit will run for further 6 hours then stops. another 3 hours, temp. rises by 1 Temp. is higher than temp. setting so that room further. The unit will run for further 3 temperature won't be too Iow for your sleep. -
Page 17: Timer On/Off Operation
After replacing batteries or a power failure happens, time setting should be reset. Remote controller possesses memory function, when use TIMER mode next time, just press SET button after mode selecting if time setting is the same as previous one. - Page 18 After setting correct time, press TIMER button to confirm " " on the remote controller stops flashing. " " starts flashing. Time displayed: Unit starts or stops at x hour x min. FRESH 5.Time setting for TIMER OFF Just press HOUR button ,follow the same procedure in POWER/SOFT "Time setting for TIMER ON"...
-
Page 19: Power/Soft Operation
To cancel POWER operation Press POWER/SOFT button twice ,POWER/SOFT disappears. SOFT Operation FRESH You can use this function when silence is needed for rest or reading. Selecting of SOFT operation Press POWER/SOFT button. Every time the button is pressed,display changes as follows:... -
Page 20: Health Airflow Operation
2).Press the button of health airflow again, appears on the display. The above inlet and outlet grills of the air cond- itioner are closed and the airflow is blown vertically from the nether inlet and outlet grills. Avoid the strong airflow blows direct to the body. -
Page 21: Emergency And Test Operation
Removal of the restriction of emergency or test operation Press the emergency operation switch once more, or manipulate through the remote controller; the "Pi" sound, the emergency or test operation is terminated. When the remote controller is manipulated, it gets the system back to the normal operation mode. -
Page 22: Maintenance
Use the timer effectively during operation During cooling operation prevent the penetration of direct sunlight with curtain or blind Use the louvers effectively If the unit is not to be used for a long time, turn off the power supply main switch. -
Page 23: Air Filter Cleaning
Maintenance For Smart Use of The Air Conditioner WARNING Before maintenance,be sure to turn off the system and the circuit breaker. Remote Controller Indoor Body Wipe the air conditioner by using a soft and dry cloth.For serious stains,use a neutral detergent diluted with water.Wring the water... - Page 24 The photocatalyst air purifying filter will be solarized in fixed time. In normal family, it will be solarized every 6 months. The solarization time will last no less than 8 hours under the state of abundant sun.
-
Page 25: Cleaning The Body
To Keep Your Air conditioner in Good Condition after Season. Operate in cooling mode for 2-3 hours. To prevent breeding mold or bad smell, be sure to operate at the designated temperature or 30 C,cooling mode and High speed fan mode for 2-3 hours. -
Page 26: Connecting The Earthing Cable
Before Setting in High season Cleaning the standard air filter. Operation without filter may cause troubles.Be sure to attach both right and left filters prior to the operation. Each of them are of different shapes. Connecting the earthing cable. Caution Incomplete earthing may cause an electric shock. -
Page 27: Troubleshooting
This noise is generated by the inspection casing expanding or shrinking because of temperature changes. Should there be a big noise from air flow in unit operation, air filter may be too dirty. This is because the system circulates smells Smells are generated. - Page 28 The products are fulfilled with the requirements in the directive 2002/95/EEC of the local and national legislation. Air conditioners must be European parliament and of the council on the Restriction of the use of Certain Haz- treated at a specialized treatment facility for re-use, recycling and recovery.
- Page 29 WEEE cias negativas para el entorno y para la salud de las personas. Contacte, por De acuerdo con la directiva 2002/96/CE del parlamento Europeo, Informa- favor, con el instalador o con las autoridades locales para obtener más infor- mos al consumidor acerca del reciclage de los productos Electrónicos y...
- Page 30 IMPORTANT INFORMATION REGARDING THE REFRIGERANT USED This product contains fluorinated greenhouse gases covered by the Kyoto The filled out label must be adhered in the proximity of the product charging Protocol. Do not vent into the atmosphere. port (e.g. onto the inside of the stop valve cover).
- Page 31 INFORMACIÓN IMPORTANTE EN RELACIÓN AL REFRIGERANTE UTILIZADO Este producto contiene los gases fluorados de efecto invernadora regulados La etiqueta rellenada debe pegarse cerca de la conexión de carga del pro- por el Protocolo de Kioto. No vierta gases a la atmósfera.
