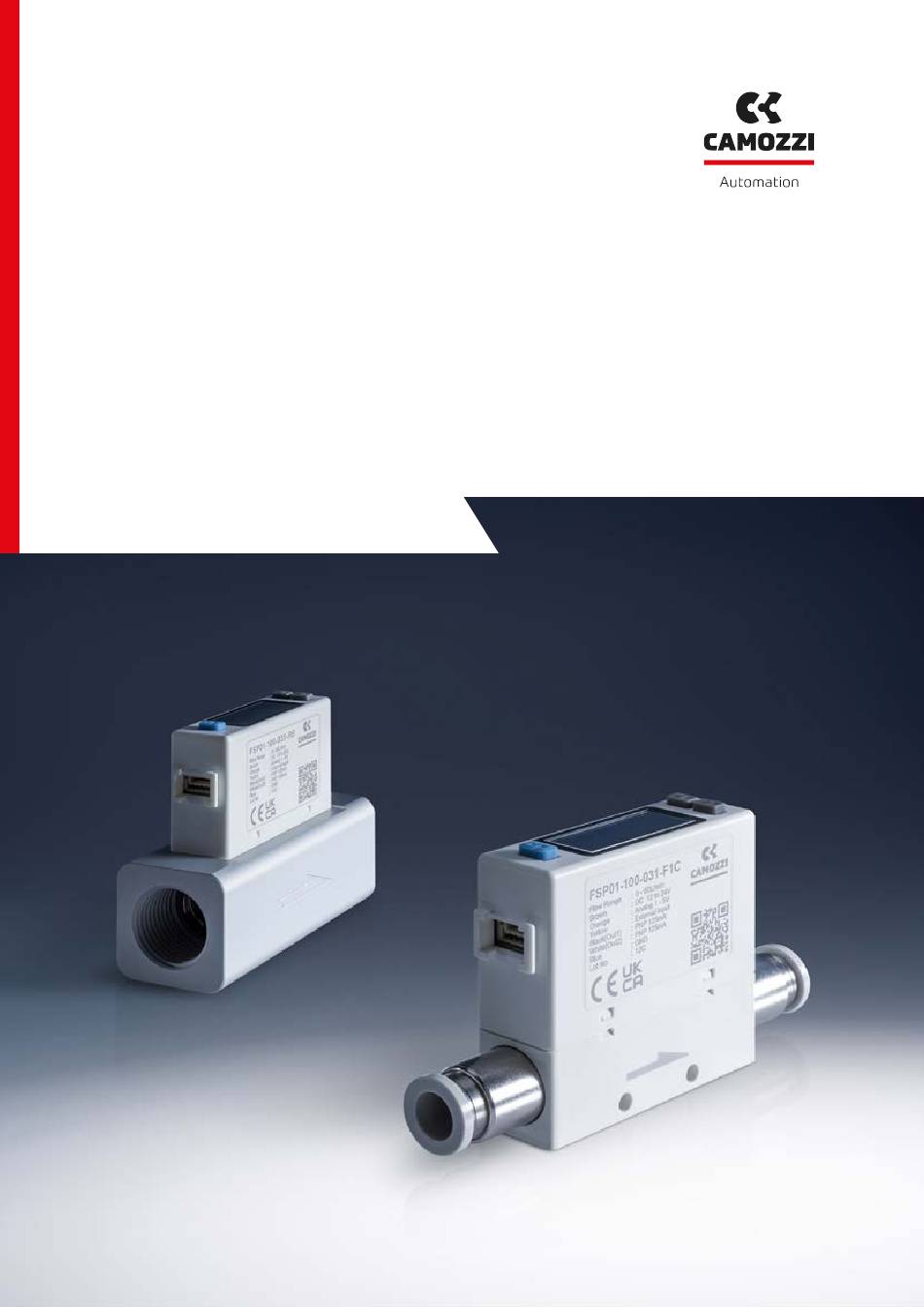

USE AND MAINTENANCE MANUAL
SERIES FSP01
DIGITAL FLOW SENSOR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FSP01 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Camozzi FSP01 Series

Summary of Contents for Camozzi FSP01 Series

  • Page 1 USE AND MAINTENANCE MANUAL SERIES FSP01 DIGITAL FLOW SENSOR...
  • Page 2 5000070183 Ver 00 Camozzi Automation S.p.A.

  • Page 3: Table Of Contents

    Chapter 10 Pressure Loss Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 5000070183 Ver 00 Camozzi Automation S.p.A.

  • Page 4: Chapter 1 Introduction

    Power Supply voltage – Internal voltage drop of sensor > Minimum operating voltage of load • Please follow the rated range of flow and pressure to avoid damage. • Do not use flammable fluids and/or permeable fluids. They may cause fire, explosion or corrosion. 5000070183 Ver 00 Camozzi Automation S.p.A.

  • Page 5: Working Fluid And Working Environment

    • Do not connect wire when the power is on. • RS485 products must be connected the communication wire first. Wiring for RS485 MODBUS : Please connect RS485 (B+) or (A-) before connecting power supply to avoid short circuit to damage to product. 5000070183 Ver 00 Camozzi Automation S.p.A.

  • Page 6: Installation Precautions

    • Do not touch terminals or connectors when power is on. 1.9 Disposal • Sensors at end-of-life must be disposed of in accordance with E-Waste regulations of the country/region, NOT disposed of with regular garbage. 5000070183 Ver 00 Camozzi Automation S.p.A.

  • Page 7: Warning

    Flow Sensor Air Source Filter Micro Mist Separator Throttle (Oil Mist Filiter) Valve Series FSP01 NOTE When measuring the pressure of the outlet side, install a throttle valve or solenoid valve on the inlet side. 5000070183 Ver 00 Camozzi Automation S.p.A.

  • Page 8: Disclaimer

    CAMOZZI AUTOMATION. • Our warranty applies solely to our product, not to any other additional damages (the loses of business profits, business interruption, etc.) incurred due to using or misusing the product.

  • Page 9: Piping

    Piping for the One-Touch Fitting, insert the tube firmly into the fitting and make sure it cannot be pulled out. Also using the proper tube cutter is recommended to ensure square edge tube. Recommends using PU tube. 5000070183 Ver 00 Camozzi Automation S.p.A.

  • Page 10: Piping For The Internal Thread

    Caution and leaking test to confirm whether the installation is correct. Piping Specification Required Torque Rc 1⁄8” 4 ÷ 7 N .m Rc 1⁄4” 6 ÷ 8 N .m 5000070183 Ver 00 Camozzi Automation S.p.A.

  • Page 11: Mounting Bracket

    Size: 3 .0 Length: 6mm The tightening torque for screws should be under 0.5 ±0.1 N.m. 3 . Panel mounting Panel Front Panel adapter protective lid adapter Panel adapter 60 .5 x 22 .5 ±0 .3mm 5000070183 Ver 00 Camozzi Automation S.p.A.

  • Page 12: Wiring Diagrams

    Orange Orange Analog current output: 4 ÷ 20mA Yellow Yellow External input Black Black Output 1 (Max . load current: 125mA) White White Output 2 (Max . load current: 125mA) Blue Blue 0V (GND) 5000070183 Ver 00 Camozzi Automation S.p.A.

  • Page 13: Names And Functions Of Individual Parts

    Flow Direction Symbol 8-Digit LCD Accumulated Flow Display Output 2 Indicator Output 1 Indicator Flow Unit Display Section Button Setting Button Button Modbus Symbol Flow Unit Display Section Symbol flashing when MODBUS data is transmitted . 5000070183 Ver 00 Camozzi Automation S.p.A.

  • Page 14: Functions Instructions

    200ms, 500ms or 1000ms [UPdA] Display refresh time 500(ms) of flow sensor setting [Unit] Unit setting Select the UNIT [F-06] [FLo ] Flow unit setting of pressure / flow sensor [PrES] Pressure unit setting Unit 5000070183 Ver 00 Camozzi Automation S.p.A.
  • Page 15 The minimum pressure or instantaneous flow can be detected Bottom value display when the power is supplied for a period Key lock/unlock mode To prevent errors occurring due to unintentional changes of the set values 5000070183 Ver 00 Camozzi Automation S.p.A.

  • Page 16: Operation Instructions

    Press for 3 sec . at Function Setting Mode to return to Measurement Mode . Measurement Mode Press button for more than 3 sec Function Selection Mode Flashing Flashing Flashing alternately alternately alternately L/min L/min L/min Press button Enter in each function setting 5000070183 Ver 00 Camozzi Automation S.p.A.
  • Page 17 Flashing alternately Press ▲ or ▼ button to select flow sensor of OUT1 . L/min Selected Output Set Value Flashing Flashing alternately alternately L/min L/min Flow Sensor Pressure sensor Press button (to be continued) 5000070183 Ver 00 Camozzi Automation S.p.A.
  • Page 18 Set Value OUT1 type . Flashing Flashing alternately alternately L/min L/min NO mode NC mode NOTE: Type setting will not display when Accumulated Pulse Output Mode is set . Press button (to be continued) 5000070183 Ver 00 Camozzi Automation S.p.A.
  • Page 19 Press ▲ or ▼ button to adjust fixed hysteresis value . L/min Fixed Hysteresis Set Value Mode NOTE: Fixed hysteresis setting is available when selecting Window Comparator Mode . Press button to return to Function Selection Mode Flashing alternately L/min 5000070183 Ver 00 Camozzi Automation S.p.A.
  • Page 20 Press ▲ or ▼ button to select L/min output mode of OUT1 . Sensor Value Flashing Flashing Flashing alternately alternately alternately L/min L/min L/min Window Hysteresis Mode One Point Comparator Mode Set Mode Press button (to be continued) 5000070183 Ver 00 Camozzi Automation S.p.A.
  • Page 21 1 . Press ▲ or ▼ button at function setting mode to start "OUT 2 Setting" [F-02] [oUt2] 2 . Check the [F-01] for the same follow setting . NOTE: The OUT2 Setting dose not have Accumulated Pulse Output Mode . 5000070183 Ver 00 Camozzi Automation S.p.A.
  • Page 22 . 2 . When using window comparator mode, the difference between two set points must be greater than the fixed hysteresis, otherwise will cause the switch output to malfunction . 5000070183 Ver 00 Camozzi Automation S.p.A.
  • Page 23 ON : Green ON : Red ON : Green ON : Red OFF : Red OFF : Green OFF : Green OFF : Red Press button to return to Function Selection Mode Flashing alternately L/min L/min 5000070183 Ver 00 Camozzi Automation S.p.A.
  • Page 24 7 Response time selections include: 50ms, 80ms, 120ms, 200ms, 400ms, 800ms, 1500ms Flashing Flashing Flashing alternately alternately alternately L/min L/min L/min 800ms 1500ms 400ms Press button to return to Function Selection Mode Flashing alternately L/min 5000070183 Ver 00 Camozzi Automation S.p.A.

  • Page 25: Chapter 2 Installation Instructions

    7 Response time selections include: 2 .5ms, 25ms, 100ms, 250ms, 500ms, 1000ms, 1500ms Flashing Flashing Flashing alternately alternately alternately L/min L/min L/min 2 .5ms 25ms 1500ms Press button to return to Function Selection Mode Flashing alternately L/min 5000070183 Ver 00 Camozzi Automation S.p.A.
  • Page 26 Set Value 3 display refresh time selections include: 200ms, 500ms,1000ms Flashing Flashing Flashing alternately alternately alternately L/min L/min L/min 500ms 1000ms 200ms Press button to return to Function Selection Mode Flashing alternately L/min L/min 5000070183 Ver 00 Camozzi Automation S.p.A.
  • Page 27 Refresh Time Set Value 3 display refresh time selections include: 200ms, 500ms,1000ms Flashing Flashing Flashing alternately alternately alternately L/min L/min L/min 200ms 500ms 1000ms Press button to return to Function Selection Mode Flashing alternately L/min 5000070183 Ver 00 Camozzi Automation S.p.A.
  • Page 28 , bar, psi Pressure Sensor Set Value L/min L/min L/min L/min Flashing Flashing Flashing Flashing alternately alternately alternately alternately L/min L/min L/min L/min kgf/cm Press button to return to Function Selection Mode Flashing alternately L/min L/min 5000070183 Ver 00 Camozzi Automation S.p.A.
  • Page 29 2 . Normal condition (NOR): the display value is calculated under 0°C, 1atm . 3 . Flow rate in the specification is the value at standard condition (ANR) . Press button to return to Function Selection Mode Flashing alternately L/min L/min 5000070183 Ver 00 Camozzi Automation S.p.A.
  • Page 30 Flashing alternately alternately L/min L/min Flow sensor Pressure sensor NOTE: This function is not available with RS485 (Output Specification -02 and -04) . Press button to return to Function Selection Mode Flashing alternately L/min 5000070183 Ver 00 Camozzi Automation S.p.A.
  • Page 31 24 hours per day, the durability is calculated as below: - 5 minutes x 1 million cycles = 5 million minutes = 9 .5 years - 2 minutes x 1 million cycles = 2 million minutes = 3 .8 years 5000070183 Ver 00 Camozzi Automation S.p.A.
  • Page 32 When the measured flow rate range is 500mL/min or 1000mL/min, the accumulated flow is selected and the unit will become in mL/min . Press button to return to Function Selection Mode Flashing alternately L/min 5000070183 Ver 00 Camozzi Automation S.p.A.
  • Page 33 L/min L/min Display sync "OFF" Display sync "ON" NOTE: This function is not available with Output Specification -02 and -04 . Press button to return to Function Selection Mode Flashing alternately L/min 5000070183 Ver 00 Camozzi Automation S.p.A.
  • Page 34 Set Value L/min Flashing Flashing alternately alternately L/min Power-save mode "OFF" Power-save "ON" NOTE: During the Power-Save Mode, the decimal point will flash . Press button to return to Function Selection Mode Flashing alternately L/min 5000070183 Ver 00 Camozzi Automation S.p.A.
  • Page 35 Output Specification -02 and -04 . 2 . When external signal is input, the instantaneous L/min flow rate value will be shown ”oooo” . Press button to return to Function Selection Mode Flashing alternately L/min 5000070183 Ver 00 Camozzi Automation S.p.A.
  • Page 36 Baud Rate Set Value L/min L/min L/min Flashing Flashing Flashing alternately alternately alternately L/min L/min L/min 9600 Bd 19200 Bd 38400 Bd NOTE: This function only available for RS485 (Output Specification -02 and -04) . 5000070183 Ver 00 Camozzi Automation S.p.A.
  • Page 37 Odd Parity NOTE: This function only available for RS485 (Output Specification -02 and -04) . Press button Flashing alternately L/min L/min RTU mode Press button to return to Function Selection Mode Flashing alternately L/min L/min 5000070183 Ver 00 Camozzi Automation S.p.A.
  • Page 38 Press ▲ or ▼ button to set fine adjustment value . Flashing alternately L/min L/min Fine adjustment Instantaneous Value setting Value flow value NOTE: Display will flashing between instantaneous flow value and "FST" . Press button Return to the measurement mode 5000070183 Ver 00 Camozzi Automation S.p.A.
  • Page 39 Press ▲ or ▼ button to setting fine adjustment of display value Flashing alternately L/min L/min Fine adjustment Pressure setting Value Value Value NOTE: Display will flashing between pressure value and "FST" . Press button Return to the measurement mode 5000070183 Ver 00 Camozzi Automation S.p.A.
  • Page 40 Press ▲ or ▼ button to setting OUT2 . alternately L/min L/min Output 2 Set Value OUT2 L/min L/min Flashing Flashing alternately alternately OUT2 L/min L/min OUT2 "OFF" OUT2 "ON" Press button to return to Function Selection Mode Flashing alternately L/min L/min 5000070183 Ver 00 Camozzi Automation S.p.A.
  • Page 41 Flashing alternately factory default setting . L/min L/min Default setting Set Value L/min L/min Flashing Flashing alternately alternately L/min L/min Disable Enable Press button to return to Function Selection Mode Flashing alternately L/min L/min 5000070183 Ver 00 Camozzi Automation S.p.A.
  • Page 42 And release holding the button to return measurement mode . Measurement mode Press and ▲ button simultaneously over 3 sec . To release holding the button to return measurement mode . Pressure value return zero . 5000070183 Ver 00 Camozzi Automation S.p.A.
  • Page 43 And release holding the button to return measurement mode . Measurement mode Press and ▲ button simultaneously over 3 sec . To release holding the button to return measurement mode . Instantaneous flow value return zero . 5000070183 Ver 00 Camozzi Automation S.p.A.
  • Page 44 And release holding the button to return measurement mode . Measurement mode Press and ▼ button simultaneously over 3 sec . Accumulated value display zero . To release holding the button to return measurement mode . 5000070183 Ver 00 Camozzi Automation S.p.A.
  • Page 45 The maximum value will be displayed flashing, and is held . Press button return to the measurement mode . Measurement mode Press ▲ button over 3 sec . Flashing alternately Press button return measurement mode . 5000070183 Ver 00 Camozzi Automation S.p.A.
  • Page 46 The minimum value will be displayed flashing, and is held . Press button return to the measurement mode . Measurement mode Press ▲ button over 3 sec . Flashing alternately Press button return measurement mode . 5000070183 Ver 00 Camozzi Automation S.p.A.
  • Page 47 L/min Flashing Flashing alternately alternately OUT1 L/min L/min Unlock Lock NOTE: If a button operation is performed while the key lock setting is ON, [LoC] will displayed . L/min Displayed for 1 sec . 5000070183 Ver 00 Camozzi Automation S.p.A.

  • Page 48: Error Code Instruction

    . display range . The pressure has exceeded Increase the pressure the lower limit of the pressure to the display range . display range . 5000070183 Ver 00 Camozzi Automation S.p.A.

  • Page 49: Chapter 5 Specifications

    ± 2 .5% F .S . *5 Repeatability ± 0 .2% F .S . ± 1 digit *5 Linearity ± 1% F .S . *5 Temp . Characteristic ± 2% F .S . (compare with *5) >> 5000070183 Ver 00 Camozzi Automation S.p.A.
  • Page 50 *4: -0,9 ÷ 8 bar, Outlet Pressure : 1 atmospheric pressure, 25 °C *5: Outlet flow rate = 0 L/min, 25°C *6: PWM output, corresponding to pressure sensor 0 ÷ 10 bar *7: This function only available for Output Specification -02 and -04 5000070183 Ver 00 Camozzi Automation S.p.A.

  • Page 51: Chapter 6 Thermal Mass Principles Of Flow Sensor

    R8 = Ø8 mm, for Flow Rate Range 201 OPTIONAL PARTS FS-BT-26 = Mounting bracket FS-PA-G = Panel adapter FS-PA-H = Panel adapter + Front protective lid GM6X-2 = Connector 2mt GM6X-5 = Connector 5mt 5000070183 Ver 00 Camozzi Automation S.p.A.

  • Page 52: Chapter 8 Dimensions

    Dimensions 1 . Product • Ø6,Ø8 2*Ø2 .5 depth5 .5 Ø8 Ø6 92 .1mm 82 .9mm 2 . Mounting Bracket 33 .6 4 x 3 .5 5000070183 Ver 00 Camozzi Automation S.p.A.
  • Page 53 Dimensions 3. Panel Mounting 3 .3 6 .2 32 .6 49 .5 4 . Panel Cut-Out 60 .5 ±0 .3 ≤ 4 x R3 5. Cable GM6X-2 GM6X-5 2000mm 5000mm 5000070183 Ver 00 Camozzi Automation S.p.A.

  • Page 54: Chapter 9 Construction

    Construction • Ø6,Ø8 Liquid crystal cover (PC) Liquid crystal Button (Silicone) Case (PC+ABS) Electronic circuit board Sensor (SiC) O-ring (Viton) Port Filter (Stainless Steel) One-Touch Fitting Resin Body (PBT) O-ring (NBR) 5000070183 Ver 00 Camozzi Automation S.p.A.

  • Page 55: Chapter 10 Pressure Loss Characteristics

    0 .35 MPa 0 .4 MPa 0 .5 MPa Flow rate (mL/min) • FSP01-201- □ - □ Pressure loss (kPa) 0 .3 MPa 0 .35 MPa 0 .4 MPa 0 .5 MPa Flow rate (mL/min) 5000070183 Ver 00 Camozzi Automation S.p.A.
  • Page 56 Via R . Rubattino, 81 Product Certification 20134 Milano Information concerning product Italy certifications, EC standards, OPERATIONAL HEADQUARTERS conformity declarations and instructions Via Eritrea, 20/I productcertification@camozzi .com 25126 Brescia Italy Tel . +39 030 37921 www .camozzi .com A Camozzi Group Company www.camozzi.com...

This manual is also suitable for:

Fsp01-010 seriesFsp01-500 seriesFsp01-201 series
