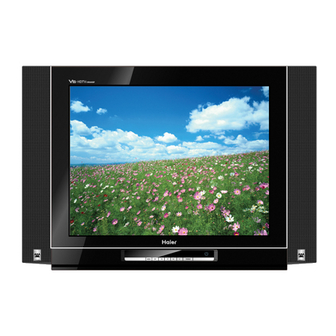

- Page 1 COLOR TV RECEIVER OWNER'S MANUAL TV/AV TV/AV V- V- MENU MENU The Owner`s Manual for the Follow Models: D29FA11-AKM, D32FA11-AKM Please READ this manual carefully before operating the unit, and keep it for future reference.
-
Page 2: Table Of Contents
* For your enjoyment of this TV set, please read this manual carefully and keep it good for future reference. Before Operation ....................2 Warning and cautions ......................3 Installation ...................3 Antenna connection ................3 Preparation for the remote control ................4 Position of Button and Plug-ins ..................4... -
Page 3: Warning And Cautions
AC power outlet and the aerial plug removed. Explanation on the display tube Should the picture tube require cleaning, disconnect the power and use a dry soft cotton cloth. Do not use any cleanser or abrasive cloths. -
Page 4: Installation
Under normal conditions, the life time of batteries is one year. If you don't intend to use the unit for a long period or the electricity of the batteries is used up, remove the batteries to prevent batteries acid from leaking into the battery compartment. -
Page 5: Position Of Button And Plug-Ins
AUDIO: L/MONO Track L/MONO ,R Track R AV output terminals: VIDEO AUDIO L/MONO Track L/MONO ,R Track R AV2 input terminals MONITOR : VIDEO AUDIO : L/MONO Track L/MONO ,R Track R AV1 input terminals MONITOR :VIDEO AUDIO : L/MONO Track L/MONO ,R Track R... -
Page 6: Function Button Of The Remote Control
Function Buttons of the Remote Control Function buttons of the remote control TV/AV POWER MUTE Mute button To eliminate the sound of the programs SCAN STILL CALL/HELP DC standby and power button TV and AV exchange button A changeover between TV and other... -
Page 7: The Screen Display Menu
Please do some adjustment as follows to meet your needs. 1. Press the MENU button, and then press CH+/- buttons to select the menu in the main menu: PICTURE, SOUND, TUNE ,SETUP and TIMER. Of course, you may select these menus directly by pressing the PICTURE, SOUND, TIME and FUNCTION buttons on the remote control. -
Page 8: Switch On/Off The Tv Set
Switch on/ off the TV set In the following, the methods of using power switch and remote control to switch on/off power supply for the TV set will be explained. Switch on/ off the TV set Switch on/ off the TV set 1.Connect the power supply wire. -
Page 9: Watching Tv Programs
If you want to select a three figures channel, press the figure-selection button and change it into three-figure mode, then press the number of the channel. -
Page 10: Program Swap And Auto Scan Functions
Watching TV Programs (continued) Swap function enables quick swap to the last watched program. Program swap and auto scan functions Program swap 1. Suppose the channel number you used just now is 8 and the channel number you are using SWAP is 18 (as shown in the figure). -
Page 11: Tune
The TV set has three methods to set the channels, which are Auto search, Search, Quick Search and Fine tune. In this section, how to use the remote control to set the channel is explained. You can also use the buttons on the TV set to set channel. -
Page 12: Search
TV signal you need. Note: CALL/HELP Usually, five seconds after the channel has been changed, the channel number will disappear automatically. If you want to know which channel you are watching, just press the CALL/HELP button once. -
Page 13: Fine Tune And Program Lock Functions
. Press the H.Lock button to turn Fine tune <144.20MHz> the Channel Lock function to "On " (Refer to page 27),then the screen is black. After setting the Channel Lock to On, the Lock of the Program Edit menu will fail. -
Page 14: Skip Unnecessary Channel
Skip unnecessary channel The Program skip feature enables you to skip/hide programs that you do not wish to be displayed when using the CH+/- buttons. These channels will still be displayed by directly using the channel number buttons on the remote control. -
Page 15: Exchange Programs
This feature is very useful when Automatic Search Tuning has been used because programmes are stored in the order they are found, which is usually not the desired order. When organising, it is best to start from the lowest programme number first. -
Page 16: Picture Adjusting
Set by yourself User No pictures) Listen Bright color Rich Set the picture quality When the Picture Mode is User mode, you can set the picture quality 1. Press the PICTURE button, the PICTURE Picture menu will appear on the screen. MENU... -
Page 17: Filter Function
MENU Exchange Picture Program edit Sound Search Tune Auto Search Setup . Press the CH+/- buttons to move Quick Search Timer the indicator to "Filter". . Press the VOL+ button to Filter Mode Standard the Filter sub-menu. VOL- MENU VOL+ . -
Page 18: 3A Optimize And 3Dnr Functions
Picture Mode Standard Picture Brightness Contrast Sound Color Tune . Press the CH+/- buttons to move Sharpness Setup Filter the indicator to "Advance", then Timer Advance press the VOL+ button to sub- menu. . Press the CH+/- buttons to move MENU the indicator to "3A Optimize". -
Page 19: Comb Filter And Layeren./ Color En. Functions
Picture Adjusting (Continued) Comb filter and Layer En./Color En. Functions Comb filter Function Press the PICTURE button, the PICTURE Picture menu will appear on the MENU Picture Mode Standard screen. Picture Brightness Contrast Sound Color Tune . Press the CH+/- buttons to move... -
Page 20: Sound Adjusting
S.STD Press the S.STD button to select the desired picture quality. Four kinds of sound modes can be selected in turn. S o u n d q u a l i t y Sound Mode Standard Standard... -
Page 21: Equalizer And Mute Functions
Tip: The Equalizer can be adjusting only for the User mode. How to use the Mute function When you want to listen to the sound nearby, or when you are answering the telephone, or talking with your friends, you may use the mute function. -
Page 22: Timer Set Up Function
Timer Set Up Function This model has time set function such as On/Off Time, Sleep and Remind Time, etc. The unit of the TIME menu is minute. Set current time and On/Off Time functions Set current time When this function is used, please first check whether the clock is in accordance with your local time;... -
Page 23: Remind Program Function
Timer Sleep Time Press the CH+/- buttons to adjust the value. After setting the Remind time, press MENU button to confirm. . Press the CH+/- buttons to move MENU the indicator to " Remind Program ", Current time... -
Page 24: Set Up Function
MENU VOL+ OSD language selected. How to start screen saver function When the SCREEN SAVER is ON, If no signal has been received, and after five minutes, it will stand by automatically. FUNCTION 1. Press the FUNCTION button, the Function menu will appear on MENU the screen. -
Page 25: Select Switch On Mode And Hdm Scan Function
Set Up Function (Continued) Select Switch on mode and HDM scan function Select Switch on mode There are some kind of Switch on mode, such as , etc. You can choose one you need. FUNCTION 1. Press the FUNCTION button,... -
Page 26: Tilt Function And Setting Transparency Menu
Tilt function and setting Transparency Menu Tilt function When the TV set is affected by the geomagnetism so that the whole picture turn tilt, you can use the function. FUNCTION 1. Press the FUNCTION button, the Function menu will appear on MENU the screen. -
Page 27: Setting The Lock
Setting the Lock This TV set provides you with the LOCK function, you can choose it due to your need to protect your TV set. Change your password Change your password This TV set can set a four digit password, the original one is 0000, if you want to reset it, please follow the instructions below. -
Page 28: Setting The Lock
"On" or "Off". Description of each lock function 1.When the LOCK is set ON, if the buttons on the TV are pressed, the screen will indicate that the TV set is in the status of Lock, and the buttons won't work. -
Page 29: Others Functions
1. Press the CAL./EXIT button, the Calendar menu will appear on Sun Mon Tue Wed Thu Fri the screen. . Press the VOL-/+ buttons to move the indicator to the year / the month, and then press the CH+- buttons to VOL- MENU VOL+ adjust the year and the month, to demand the desired date. -
Page 30: Setting And Using Favorite Programs, Setting Sleep Timer
On Time . Press the CH+/- buttons to move On program Tune Remind time the indicator to " Sleep Time". Setup Remind program Timer Sleep Time VOL- MENU VOL+ . Press the VOL-/+ buttons to turn the time or Off. -
Page 31: Vga Input Adjustment
5.Click the Advanced button and click the Monitor tab on the dialog-box. Set the vertical-frequency to 60Hz and then click the OK button. 6. Connect the PC to the TV set by the VGA terminal. VGA input adjustment TV/AV 1. Press the TV/AV button, then press CH+/-buttons to select the PC input mode. -
Page 32: Multi-Media Player System
It is possible that some files may not be read. 2 If Pic & Music mode is activated, relative media file format will include JPEG and MP3 files. After Picture is selected, MP3 files set for play will open both music and picture files for sync play performance. -
Page 33: To Start The Media Play
1 to select the TV option, and then press VOL+ button to confirm. TIP: If there are no operation one minute later, the TV will enter the saver automatically, at the time, press any button of USB system to... -
Page 34: To Operate The Menu
6.Press the ZOOM button to enlarge the picture, and press buttons to enjoy the detail. CALL/HELP 7.Press the CALL/HELP button to call or exit the menu display. CAL./EXIT 8.Press the CAL./EXIT button to return to previous menu and stop player, press CAL./EXIT button repeatedly to... -
Page 35: To Play Picture
Press CAL./EXIT button to return. To enjoy the picture detail ZOOM 1. After selecting the picture to play, press the ZOOM button to select desired scale. 2. Press the CALL/HELP button to exit the display, and CALL/HELP... -
Page 36: To Enjoy Music
USB device. 4. When playing music, press the or button to select play mode, (play mode: standard, program, Random, Disc Repeat, Folder Repeat, File Repeat) and press the button to confirm. CAL./EXIT 5. Press the CAL./EXIT button to exit the playing. -
Page 37: To Play Movie
3. Press the or button to select the desired movie, and then press the button to play. 4. On the menu of play, press the button to select in turn: File-Play Back Control-Auto channel-Play Mode. Press the button to set... -
Page 38: To Select The Music And Pic Item
TIP: On the playing, press the button to pause the picture. CAL./EXIT 5. Press repeatedly CAL./EXIT button to return. Note On the music and picture, the playing music is *.mp3 format. -
Page 39: Set Up Functions
Setup option. AAA Multimedia Player Picture Movie Music Music and PIC SETUP Press ENTER key to play this devices 2. Press the button to enter the Setup menu. Press the button again to enter the AAA Multimedia Player Language option. -
Page 40: External Connections
External connections In the following, the methods of connecting the video/audio system and PC for the TV set will be explained. Video/Audio Output Connection, VGA and HDMI Input To Audio/Video input VCR Etc. To VGA input VGA IN AVOUT VIDEO... -
Page 41: Video/Audio Input Connection
External connections (Continued) In the following, the methods of connecting the video/audio system and other sets for the TV set will be explained. Video/Audio Input Connection Side AV To Video T erminal To Audio-L T erminal To Audio-R Terminal To Audio/Video Input... -
Page 42: Trouble Shooting
TV set turned off over night. Note: 1.If the fault can not be repaired using the above guide consult with your local authorized service center. 2. The cabinet may produce the occasional "snapping sound" This is normal and caused by the... -
Page 43: Specifications
~160V-250V, 50Hz/60Hz India, Yemen, Kuwait, Bahrain Indonisia ~150V-240V, 50Hz Philippine ~150V-240V, 50Hz/60Hz New Zealand, Australia,Malaysia ~220V-240V, 50Hz Hong Kong, Algeria, Nepal, Turkey ~220V, 50Hz The actual voltage and frenquency of the TV set is different for the country or area. - Page 44 0090506995A...
