  • Page 1 SERGE MEDUSA SUBHARMONIC OSCILLATOR VCFX 1V/O FREQ SUB PW BAND BSTOP 1V/O FREQ SUB PW EVEN 1V/O FREQ SUB PW 1V/O ODD 1V/O FREQ SUB PW FREQ 1V/O EVEN 1V/O FREQ SUB PW BAND 1V/OCT 1V/O FREQ SUB PW GAIN...

  • Page 2: Table Of Contents

    Medusa - The Subharmonic Oscillator . . . . . . . . . . . . . . . . . .

  • Page 3: Installation

    . The VCFX is a completely new Serge filter design with a Bandpass as primary output . The top filter provides an additional Band Stop output, softly rejecting the frequency band whereas the bottom filter has a more Lowpass output .

  • Page 4: Medusa - The Subharmonic Oscillator

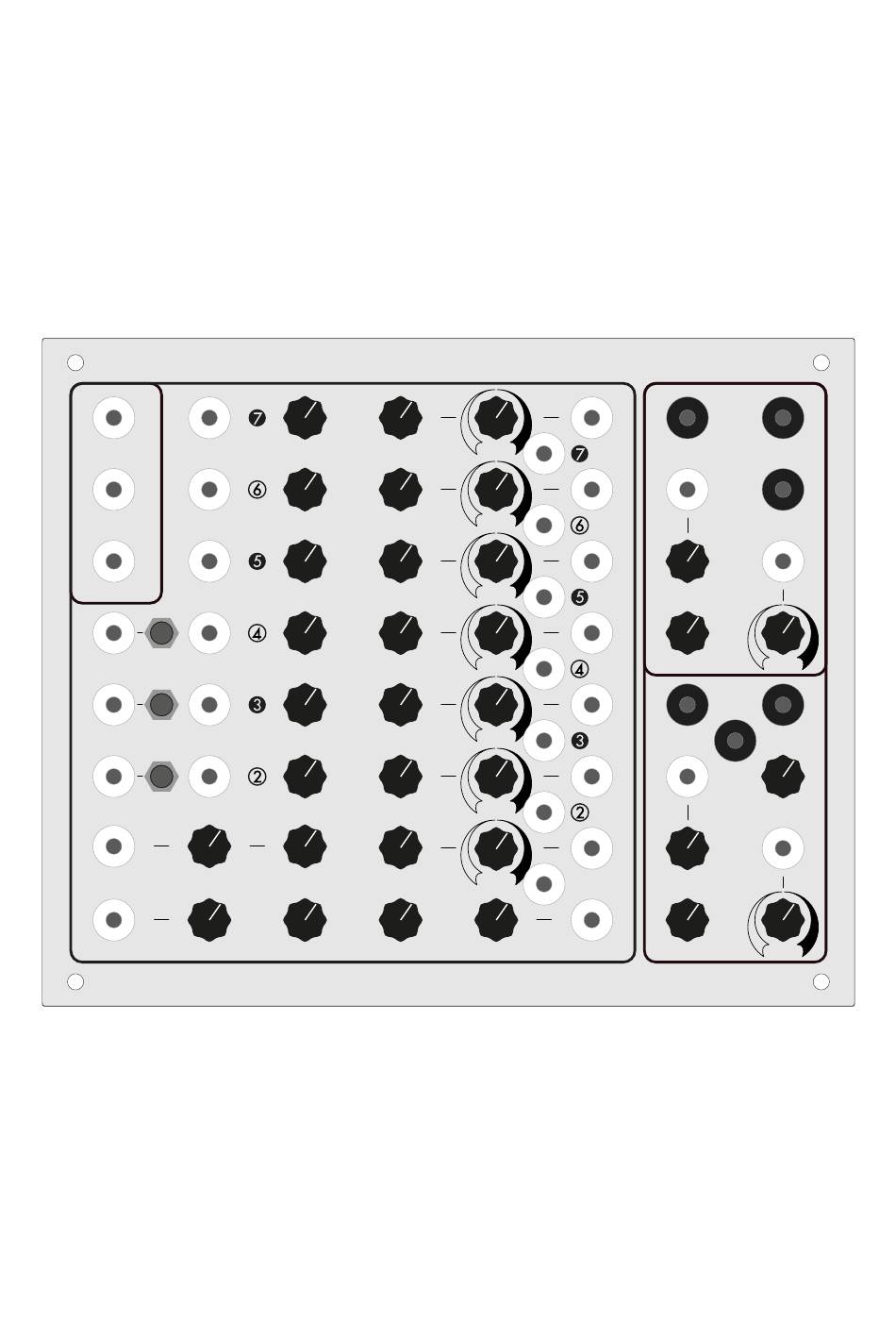

    SERGE MODULAR Medusa - The Subharmonic Oscillator SUBHARMONIC OSCILLATOR VCFX 1V/O FREQ SUB PW BAND BSTOP 1V/O FREQ SUB PW EVEN 1V/O FREQ SUB PW 1V/O ODD 1V/O FREQ SUB PW FREQ 1V/O EVEN 1V/O FREQ SUB PW BAND 1V/OCT...

  • Page 5: Spread

    Spread Medusa is carefully calibrated so that all seven oscillators can play the same pitch / frequency . Of course, Medusa is a fully analog design, so do not expect the voices to act 100% in unison without any Schwebung . To get a unisono sound (with exceptional tracking), make sure Spread (12) is turned all the way down and the FREQ knobs of oscillators (2) to (7) are all turned to minimum (CCW) .

  • Page 6: Individual Oscillator Control

    SERGE MODULAR Individual Oscillator Control 1V/O (19) 1V/Octave input for a specific voice / oscillator . Only for voices 2 to 7 . Can be used for (not so drastic) FM, too . FREQ (20) Manual pitch control for a specific voice / oscillator . Shifts the pitch up from the (global) Base Frequency .

  • Page 7: Medusa - The 2023 Serge Filter (Vcfx)

    Medusa - The 2023 Serge Filter (VCFX) Medusa contains a newly designed Serge filter in a Dual VCF version where both sides offer slightly different configurations . Since both sides have a Bandpass output, the VCFX can be used for Stereo processing of the EVEN and ODD Outs of the Subharmonic Oscillator .
  • Page 8 Attenuverter control for frequency: provides for scaling, attenuation, amplification and inversion of the CV signal(s) sent into VC FREQ Input (9) . (Version 10 . June 2024, 12:41 PM) SERGE Modular by Random*Source . Under license and in cooperation with Serge Tcherepnin . All rights reserved . SERGE-MODULAR.COM...
