  • Page 1 SERGE F O R E U R O R A C K G T S CYCLE CYCLE TRIG TRIG 1V/O ◄ ► 1V/O BOTH BOTH RISE FALL AUX1 AUX2 RISE FALL RISE FALL RISE FALL SERGE MODULAR U S E R M A N U A L V 1 .
  • Page 2: Table Of Contents

    SERGE MODULAR Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Overview .
  • Page 3: Installation

    . The GTS can still be used for CV - due to the enormous range, cycles of an hour or more are possible - and still provides all the functions of the original version . However, it now also provides exceptional audio performance: transient rise and fall times as fast as 12µs and a maximum cycle speed of about 27kHz .
  • Page 4: The Slope Generators

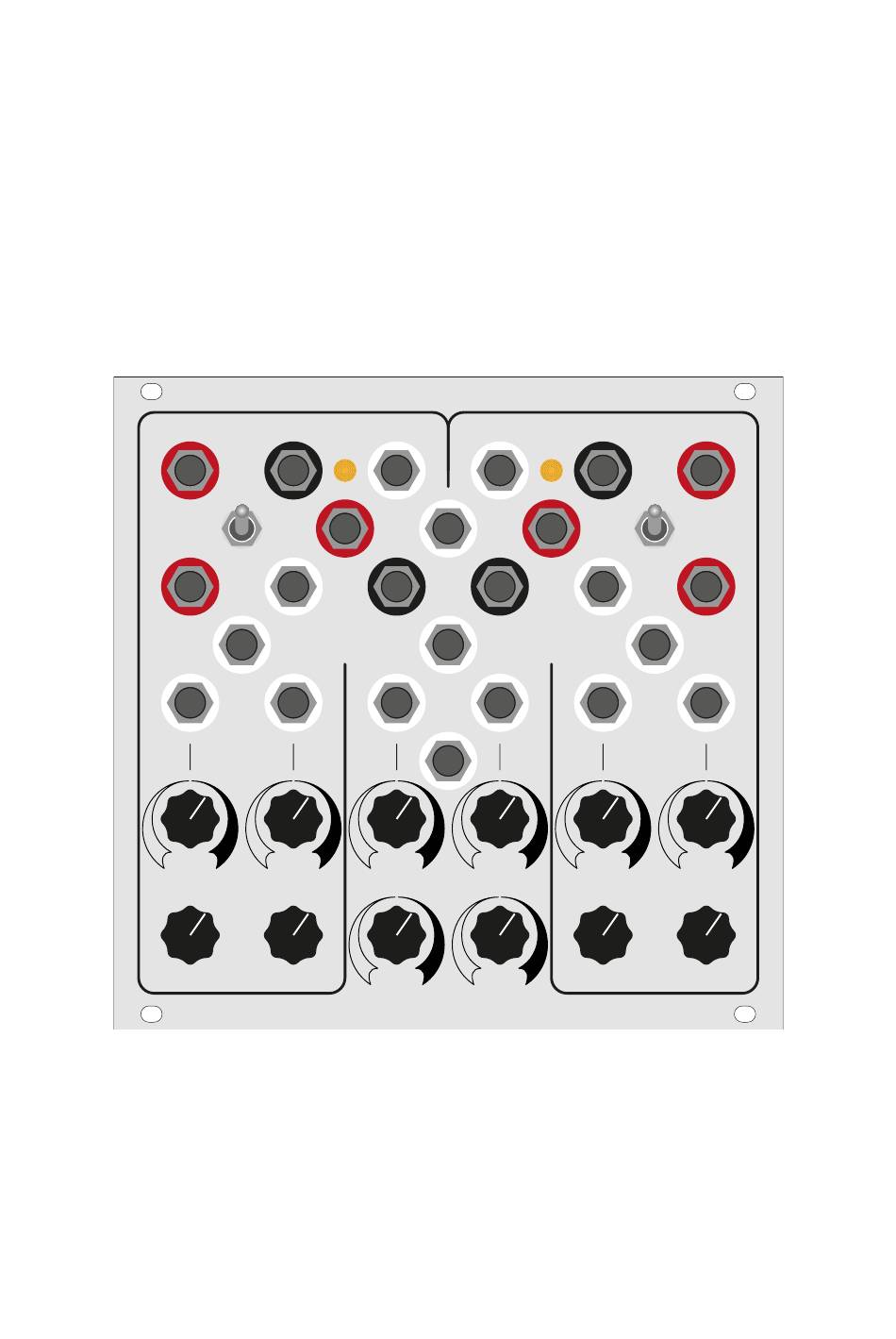

    SERGE MODULAR The Slope Generators The two slope generators in the GTS are identical . For more clarity, only the left side is shown here with numbers: CYCLE SW PULSE OUT INPUT (LEFT) END OUT AC OUT MAIN OUT G T S...
  • Page 5: Serge Gts - Basic Slope Operation

    6 . CYCLE SWITCH connects TRIG IN to GATE OUT and saves you a patch cord . 7 . 1V/OCT CV input calibrated for use of the GTS as sawtooth oscillator . When the GTS is set to CYCLE and...
  • Page 6 SERGE MODULAR 8. TRIGGER N A logic signal (gate or trigger) sent to this input triggers the circuit (regardless of what’s happening at the INPUT (4) and generates an envelope at the MAIN OUT (1), the shape of which is defined by the RISE and FALL settings (and any CV applied) . Uses include Envelope generation, Pulse Delay, Clock Division etc .
  • Page 7: The Middle Section

    SERGE MODULAR The Middle Section Both slope generators meet in the middle section: a 4 channel processor / mixer where 2 channels are hardwired to the MAIN OUTs and a Maximum and Minimum function . SUM OUT G T S...
  • Page 8: Mixer (Sum)

    SERGE MODULAR MIXER (SUM) A 4 channel CV (or audio) processor / mixer combines the 2 MAIN OUTs - prewired as channels L(eft) and R(ight) - plus 2 AUX inputs into the SUM OUT (16) . Each channel has an attenuverter, i .e . turning the knob to the left inverts the signal .
  • Page 9: Max And Min

    SERGE MODULAR MAX and MIN MAXIMUM AUX 1 AUX1 MAX OUT LEFT MAIN OUT RIGHT MAIN OUT MINIMUM NORMALIZED MIN OUT TO +6V AUX 2 AUX2 17. MAX OUT Compares the MAIN OUTs and AUX1 and provide the largest value of these waveforms at any time .
  • Page 10: Patch Ideas

    SERGE MODULAR Patch Ideas Sync’d VCO Using both sides combined as one tracking oscillator . • CYLCE both sides of the GTO . • Set SMPL switch to center (“free”) . • Keyboard 1V/OCT  left and right 1V/OCT of the GTO .
  • Page 11 SERGE MODULAR • CYCLE out (left)  IN on the right • Set SMPL switch to SMPL (top) • RED Coupler  RUN on the right • Keyboard GATE OUT  ExtADSR (or DSG) for Envelope • ExtADSR OUT  VC RATE of right GTO, VC RATE attenuverter fully CW •...
