Summary of Contents for TOPSKY DF02.01

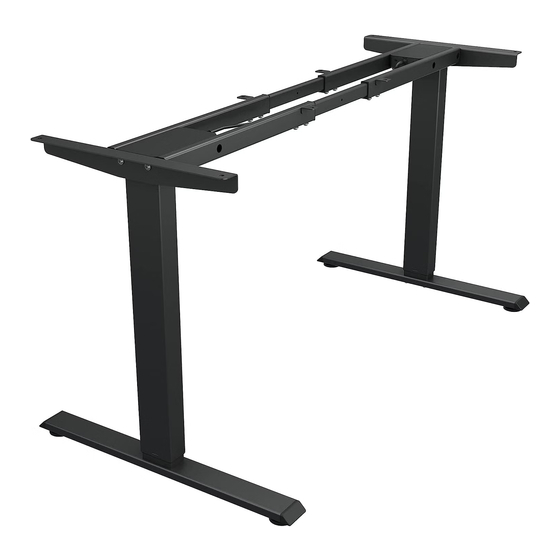

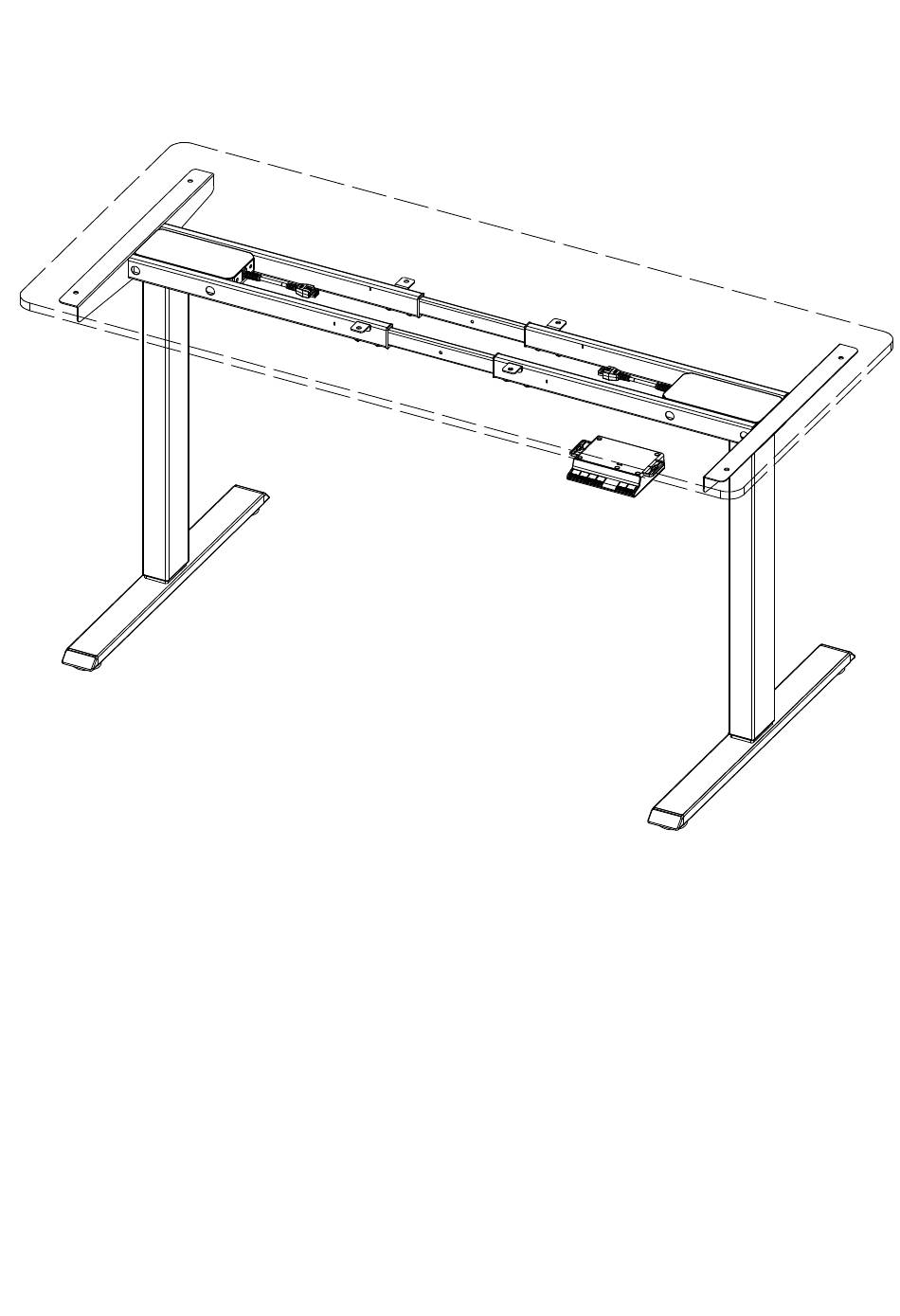

- Page 1 DF02.01 Operation Manual for Height-Adjustable Desk...
- Page 2 RELATED VIDEO *You can check the installation guide from this YouTube video: https://youtu.be/FaFVF_-EIPA Or scan this QR code to check the video. *About how to use, you can see YouTube video https://youtu.be/cedbZuDbzlM You can also scan the QR code to check it:...
-
Page 3: Warranty
Warranty ABOUT TOPSKY 3 YEAR WARRANTY: TOPSKY product come with 3 year warranty from the date of purchase.Any failure/function issues from normal usage will be replaced free of charge or refund once within 3 year of the date of purchase. A failure is a mechanical breakdown of or defect in the unit that affects the user's ability to operate the product as intended. - Page 4 Caution Keep children and pets away from the electric high-adjustable desk during the operation. Unplug the power cord during a thunderstorm or if you do not intend to use the desk for long time. Make sure desktop not touch the wall. Ensure no obstacles in the desk’s path, and no any object above 20”...
- Page 5 ST3.5*16 Tapping Screw Side Bracket Power Cord Right Tube Power Adapter Left Tube Extension Cable Extension Tube Controller M6*8 Screw Cable Clip M6*10 Screw Hex Key Wrench M6*16 Screw 8 of M6*16 Screws just for the board which sold by TOPSKY.
-
Page 6: Installation Instruction
Installation Instruction · Set the right tube and left tube flat. · Insert the extension tube to the right tube and left tube as is shown in the STEP 1 picture, pre-tighting the screws. M6*8 Screw Left Tube Right Tube Connecting rod Extension Tube Avoid excessive tightening screws... - Page 7 · Fasten the frame screws. And connect related parts as shown in below, including control box,extension cable and power cord. *Board need to be purchased separately. *If you have bought the board from TOPSKY, you can use the M6*16 screws and wrench we supplied. Control Box and Controller still need tapping Screws（Suggest use electric drive.）...
- Page 8 Instruction TOPSKY ● Manual Reset • Keep holding "down" key till display shows "E-1" and "rES" alternately and release the key. • Keep holding "down" key again, the desktop will move slowly down and return 27.6 back till the display shows "27.6", Sometimes it shows metric units "70".
- Page 9 Instruction Do not enable this function unless ● High and Low Limitation Positions you are really need in some situation. • Keep holding key "S" till the display shows "S - -" • Press "up" key till the display flash as "HLP". •...
- Page 10 Instruction ● Anti-Collision function • Once the desktop encounters any obstacle in its path, the screen displays "E-2". • The desktop will move a defined distance in opposite direction, and it would be used normally after removing the obstacle. The function can detect whether the motors are ●...
-
Page 11: Troubleshooting
Code meaning and Trouble shooting 【Code meaning】 Code Information Operating rES/E-1 Manual resetting Refer to the progress of manual reset Remove the load on desktop till it less than 1000N / 225LBS / Overloading 102KG for further operation Anti-Collision function It can be used normally after removing the obstacle Operated continuously Make the desk rest around 18minutes for further operation... - Page 12 Information for sales in Europe and United Kingdom company:CET PRODUCT SERVICE LTD. (for authorities only) Address:Chase Business Centre, 39-41 Chase Side Email:Info.cetservice@gmail.com Company: WLS Phoenix GmbH Address: Harkortstraße 12-32, 40880 Ratingen E-mail: info@wlsphoenix.de Certification...
