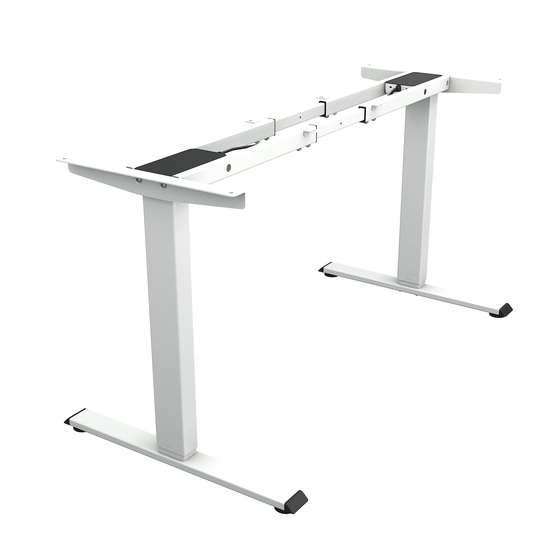

- Page 1 DF02.01 Operation Manual for Height-Adjustable Desk...
- Page 2 *You can check the installation guide from this YouTube video: https://youtu.be/xrdva-E0nU4 Or scan this QR code to check the video. *About how to use, you can see YouTube video ( TOPSKY Electric Adjustable Desk DF02.01 Major functions ) https://youtu.be/neO0EO-4iFo You can also scan the QR code to check it:...
- Page 3 Caution Keep children and pets away from the electric high-adjustable desk during the operation. Unplug the power cord during a thunderstorm or if you do not intend to use the desk for long time. Make sure desktop not touch the wall. Ensure no obstacles in the desk’s path, and no any object above 20”...
- Page 4 Left Tube Extension Cable Extension Tube Handset M6*8 Screw Cable Clip M6*10 Screw Hex Key Wrench M6*30 Screw M6*16 Screw M6*16 Screws Just For the Board Which Sold By TOPSKY, and suggest to take off the rubber from the screw holes.
-
Page 5: Installation Instruction

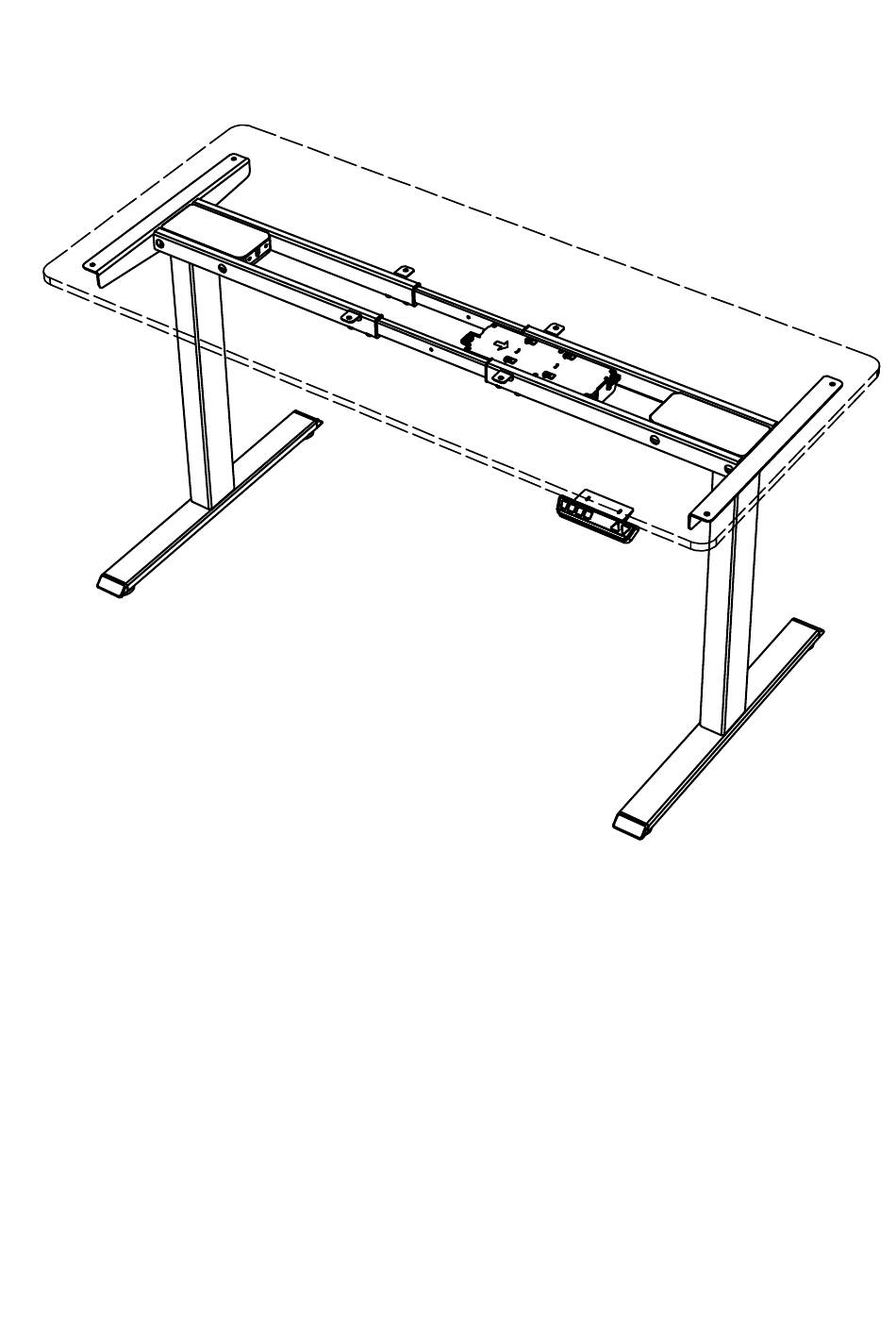

Installation Instruction · Set the right tube and left tube flat. · Insert the extension tube to the right tube and left tube as is shown in the STEP 1 picture, pre-tighting the screws. M6*8 Screw Left Tube Connecting rod Right Tube Extension Tube Avoid excessive tightening screws... - Page 6 As shown below,connect related parts, including control box,extension cable and power cord. *Board need to be purchased separately. *If you have bought the board from TOPSKY, you can use the M6*16 screws and wrench we supplied. ST4.8x16 Tapping Screw Control Box and Handset still need tapping ST3.5x16 Tapping Screw...
- Page 7 Instruction It is necessary to be reset manually after ● Manual Reset the initial installation and power off. • Keep pressing down key till display shows “E-1” and “rES” alternately and release the key. • Keep pressing down key, the desktop will move slowly down and return back till the display shows “...
- Page 8 Instruction Do not enable this function only when you ● Container and self-stop positions are really need in some situation. • Keep pressing the key “M” for 3 seconds till the display shows “S--” to enter setup menu. • Press up key till the display flash as “HLP”. •...
- Page 9 Instruction • Press "M" the height has been changed to defined digit. The function can detect whether the motors are ● Plug detection collected normally. • Once the display shows “E-3” and “rES”, it reminds you check whether any E-3 rES motors fail connected with control unit.
-
Page 10: Troubleshooting
Code meaning and Trouble shooting 【Code meaning】 Code Information Operating Manual resetting Refer to the progress of manual reset Remove the load on desktop till it less than 800N (175 LBS) Overloading for further operation Anti-Collision function It can be used normally after removing the obstacle Operated continuously Make the desk rest around 15minutes for further operation without suitable rest...
