Jamara Brecter Truggy 059739 EP LiPo Instruction Manual
Jamara Brecter Truggy 059739 EP LiPo Instruction Manual

Jamara Brecter Truggy 059739 EP LiPo Instruction Manual

Hide thumbs Also See for Brecter Truggy 059739 EP LiPo:

Advertisement

Quick Links

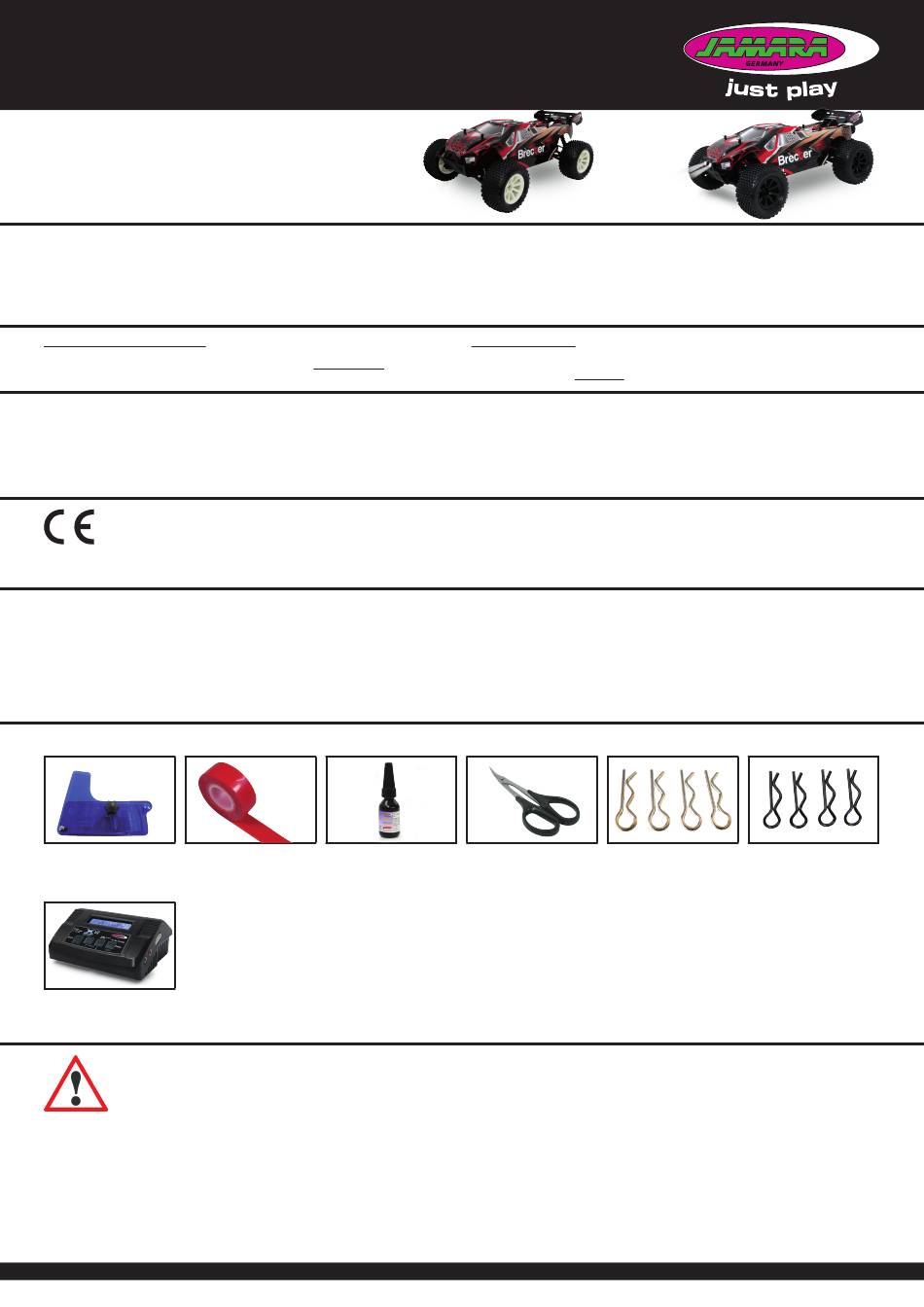

059738 EP
059739 EP LiPo
059740 BL LiPo
IT - Istruzioni di montaggio
GB - Instruction
Informazioni generali
JAMARA e.K. non si assume alcuna responsabilità per danni, al prodotto stesso o da esso causati,
che siano riconducibili a un utilizzo non corretto o a manovre errate.Il corretto uso e azionamento
del prodotto è interamente ed esclusivamente a carico del Cliente; ciò include in particolare il mon-
taggio, il caricamento, l'utilizzo, e fi nanche la scelta del campo di impiego. Si prega di osservare a
tal fine le istruzioni d'uso, contenenti informazioni e avvertimenti molto importanti.
Questo modello non é un giocattolo!
Attenzione: Tenere lontano assolutamente i bambini inferiori ai 36 mesi.
PERICOLO DI SOFFOCAMENTO! Tenere lontano necessariamente dai bambini.
Contiene pezzi piccoli che possono essere ingeriti.
Questo prodotto è un articolo di modellismo. Ciò significa che il veicolo deve essere sempre sotto-
posto a manutenzione (controllare eventuali danni, controllare i collegamenti a vite, pulire ecc...).
Le parti soggette ad usura come l'ingranaggio principale, il pignone del motore, bicchierino ecc.
si consumano nel tempo e devono pertanto essere sostituite. Non è sempre possibile evitare gli
incidenti, pertanto è necessario riparare o sostituire anche i danni causati dagli incidenti. Le parti
usurate o difettose a causa di urti o manutenzione insufficiente non sono coperte da garanzia, i
costi e le riparazioni sono a carico dell'acquirente stesso.
Dichiarazione di conformità
Con la presente JAMARA e.K. dichiara che il prodotto "Brecter, No. 059738, No. 059739,
No. 059740" è conforme alla Direttiva 2014/35/UE, 2014/53/UE e 2011/65/UE.
Il testo integrale della dichiarazione di conformità UE è disponibile al seguente indirizzo
Internet: www,jamara-shop. com/Conformity
Attenzione!
Prima dell'uso:
Accendete prima la trasmittente e poi il modello.
Dopo l'uso:
Spegnere prima il modello e poi la trasmittente.
● Non utilizzare il suo modello fuori della distanzia di vista. Sia la visibilità come la portata massima
del vostro modello dipendono da molti fattori, come il tempo, disturbo di frequenza e il luogo di
utilizzo. Eseguire un test prima di ogni utilizzo del modello con una seconda persona che tiene
fissato il modello. Con questa procedura potete testare come reagisce il modello durante la
perdita del segnale causato per esempio da una batterie scarica oppure la radio spenta.
Attrezzhi consigliati
No. 190065
No. 232060
Misuratore convergenza
Power tape silicone rosso
Camber adjusting Tool
Doublesided power tape
No. 153059
X-Peak 80 V2
Caricatore
Charger
Prima di avviare il modello, leggere attentamente tutte le istruzioni per l'uso.
Attenzione! Leggere completamente le avvertenze / istruzioni di sicurezza, questi
sono per la vostra sicurezza può prevenire incidenti / infortuni.
Frequency bands: 2.4GHz
Brecter Truggy
No. 232423
medium
Lacca protezione
Nut lock
Frequency range: 2405,5 MHz - 2475,0 MHz
EP - Version
General information
JAMARA e.K. is not liable for any damage caused to the product itself or through this, provided this
is due to improper operation or handling errors. The Customer alone bears the full responsibility for
the proper use and handling, including without limitation, the assembly, the charging process, the
use and choice of the operation area. Please refer to the operating and user instructions, it contains
important information and warnings.
This model is not a toy!
Warning:
Not suitable for children under 36 months. RISK OF SUFFOCATION!
Contains small parts which can be swallowed.
Keep away necessarily from children.
This product is a model building article. This means that the vehicle must always be serviced (check
for damage, check screw connections, clean etc...). Wear parts such as the main gear, motor pinion,
bone socket, etc. will wear out over time and must therefore be replaced. Crashes cannot always be
avoided, so crash damage must also be repaired or replaced. Wear parts or defective parts due to
crashes or insufficient maintenance are not covered by warranty, costs and repairs must be covered
by the buyer himself.
Certificate of Conformity
Hereby JAMARA e.K. declares that the products "Brecter, No.059738, No. 059739,
No. 059740" complies with Directives 2014/35/EU, 2014/53/EU and 2011/65/EU.
The full text of the EU Declaration of Conformity is available at the following Internet address:
www.jamara-shop.com/Conformity
Attention!
Before operating:
Switch the transmitter on first then the model.
When finished:
First switch off the model then the transmitter.
● Never operate your model beyond sight. Both the maximum visibility as well as the max. range of
your model will depend on many factors such as weather, location and interfering frequencies.
Therefore, before each use perform a range test with a second person securely holding the model
and also check how the model reacts if there is a signal failure e.g. when empty transmitter
batteries are installed.
Recommended Accessories
No. 281730
No. 059273
Forbici per lexan
Graffette per carrozzeria
Lexan scissors
Body clips
Read the complete instructions and security instructions carefully before using the model.
Caution! Please fully and carefully read warnings/ safety instructions. These are for
our own security and can avoid accidents/injuries.
EIRP:
<
50 mW (max. power transmitted)
=
BL - Version
1:10
No. 059273 piccolo/small
Graffette per carrozzeria
Body clips
14/24

Advertisement

loading
Need help?

Need help?

Do you have a question about the Brecter Truggy 059739 EP LiPo and is the answer not in the manual?

Questions and answers

Summary of Contents for Jamara Brecter Truggy 059739 EP LiPo

  • Page 1 JAMARA e.K. non si assume alcuna responsabilità per danni, al prodotto stesso o da esso causati, JAMARA e.K. is not liable for any damage caused to the product itself or through this, provided this che siano riconducibili a un utilizzo non corretto o a manovre errate.Il corretto uso e azionamento is due to improper operation or handling errors.
  • Page 2 Contenuto della scatola Box contents 1. Modello 1. Model Version BL 2. Telecomando 2. Transmitter 3. Antenna 3. Antennas 4. Clip per precarico molla 4. Clip for spring tension 5. Connettore di collegamento 5. Binding Plug 6. Batteria NiMh 6. Battery NiMh 7.
  • Page 3 Dati tecnici: Ingresso 100 - 240 V Attacchi di bolanciatore 2 cella Attacchi di bolanciatore 3 cella (Non richiesto per questo modello) LED di stato Technical data: Power Slot 100 - 240 V 2S Balancer 3S Balancer (Not required for this model) Status LEDs LiPo Processo di ricarica Charging a battery...
  • Page 4 ● Inserire la batteria nel portabatteria del veicolo e fissarla con le cinghie in velcro. Accertarsi ● Put the battery into the battery holder in the vehicle. che la batteria sia saldamente bloccata nel portabatteria senza troppi giochi. ● Now connect the battery to the speed control in the model. If the plug of the speed control and ●...
  • Page 5 Trasmittente Transmitter Vista laterale destra Trim Controls Trim 1. Scatola di programmazione Se le ruote non puntano dritti in avanti, anche Programming Box If the wheels do not point straight forward even 2. Volante se il volante della trasmettente è in posizione Steering Wheel though the steering wheel on the transmitter is 3.
  • Page 6 Regolatore (installato) Version EP Controller (installed) Version EP Dati technici: Technical Data: Voltaggio: 7,2 - 7,4 V Operating Voltage: 7,2 - 7,4 V Batterie: 2 Lipo | 6 NiCd/NiMh-Celle Battery Pack: 2 Lipo | 6 NiCd/NiMh Cells Resistenza interna: Fwd: 0.002 Ohm, Bwd: 0.004 Ohm Internal Resistance: Fwd: 0.002 Ohm, Bwd: 0.004 Ohm Tensione BEC:...
  • Page 7 Regolatore (installato) Versione BL Controller (installed) Version BL Technical data: Dati tecnici: Amperaggio: 60 A Max. Current: 60 A Burst Current: 390 A Mass. prestazione: 390 A Internal Resistance: 0,0012 Ohm Resistenza: 0,0012 Ohm For Use With: Cars or Trucks scale Uso: RC-Cars Battery packs:...
  • Page 8 Segnali e dispositivi di sicurezza LED’s, errors and protection Durante il normale funzionamento, i segnali LED hanno i seguenti significati: In normal use the LED will illuminate as follows: Quando l‘acceleratore è in posizione neutra, non è accesa né la LED rossa né la LED verde. No LED = the throttle control is in the neutral position Il LED rosso si accende quando il veicolo è...
  • Page 9 Struttura del menu del regolatore Menu structure Spegnere il regolatore Accendere il trasmettitore Turn off the ESC Switch transmitter ON Accendere il regolatore, mentre si preme il tasto ‚SET‘ Press and hold the ‘SET‘ button down and switch the receiver on Il LED rosso lampeggia The red LED blinks Premere...
  • Page 10 506184 059080 059082 506183 059084 506147 505046 506175 506173 506184 506186 079989 505081 506176 079996 079989 506166 506167...
  • Page 11 506178 506177 505057 079996 079989 506168 506166 177443 505385 505385 506172 506171 506178 506167 506181 506190 505047 506165 506161 506181 505057 506145 059080...
  • Page 12 506169 505057 506169 059081 506162 506162...
  • Page 13 177443 506162 505057 506197 506119 506163 506162 506141 505480 (EP) 506180 506179 081460 (BL) 505053 506160...
  • Page 14 506147 506162 506191 506192 505053 506145 506147 506164 177473 059079...
  • Page 15 506186 079996 505053 505047 506159 505046 079996 506155 506182 506158 506173 505058 506189 059082 506147 506187 506183 506188 506184 506187 059084 506188 506188 506184...
  • Page 16 50668 177443 506194 505385 505385 506177 505047 506172 506178 506181 506170 506161 506182 506165 506190 506190 505391 506187 506145 506145 059080 059081 506147 506182 506192 506191...
  • Page 17 505057 506193 503581 059081 Punti impostazione Setting points Angolo sospensione posteriore / sopra Inclinazione Suspensione molla (basso o meno clip) Angolo sospensione Inclinazione Inclinazione posteriore anteriore Suspensione molla (basso o meno clip) Rear camber Track front Spring tension (less or more clip) Spring tension (less or more clip) Shock angle...
  • Page 18 Tenditore girare più breve = Convergenza negativa girare più = Convergenza positiva Turnbuckle turn shorter = Toe-out turn more = Toe-in Impostazione dell’assetto / sospensione Toe-in / toe-out Convergenza negativa: Sterzo e meno diretto e la macchina tende a sovrasterzare. Guida diritta più precisa. Toe-in: The responsiveness of the steering is less direct and the vehicle tends to oversteer, but it has better directional stability.
  • Page 19 Angolo di inclinazione Clip Caster angle montato anteriore = Inclinazone alto montato posteriore = Inclinazione basso Clip front mounted = higher caster rear mounted = lower caster Inclinazione alto/basso anteriore Front caster high / low Basso: Inclinazione bassa ha una guida dritta peggiore, ma un sterzo più preciso e una migliore Less caster: Less caster has a worse directional stability, but provides a better steering on corner entrata in curva.
  • Page 20 Spare parts Pezzi di ricambio No. 506158 65 D/T No. 506159 No. 506160 No. 506161 100 mm No. 506162 No. 506163 Corona principale Albero del ingranaggio dietro Supporto motore Perno braccetto basso/interno Servo Saver Direzionale servo Main gear Gear shaft rear Motor mount Wishbone pin below/inside Servo Saver...
  • Page 21 Spare parts Pezzi di ricambio No. 506186 No. 506187 No. 506188 No. 506189 No. 506190 No. 506191 Corona dentata + Supporto ammortizzatore Supporto spoiler Spoiler posteriore Paraurti Piastra radio Corona conica Shock absorber holder Spoiler holder Rear spoiler Ram protection Radio plate Plate gear + cone gear No.
  • Page 22 Soluzione dei problemi Troubleshooting Dopo l‘accensione il motore non parte e non rilascia alcun segnale acustico. The motor will not rotate after switching on. No signal is present. 1. La batteria o il collegamento alla batteria non sono in ordine. 1.
  • Page 23 • Quando accendete la vostra radio, assicuratevi sempre che lo stick del gas sia al minimo. Because of the high power compactivity (up to 150 Wh/kg) the cells are quite dangerous and need special care! The company Jamara excludes explicitly, all types of liability for damages, that can Sicurezza della batteria...
  • Page 24 S.E. & O. Copyright JAMARA e.K. 2024 Copia e la riproduzione totale o in parte, solo con il permesso di JAMARA e.K. All rights reserved. Copyright JAMARA e.K. 2024 Copying or reproduction in whole or part, only with the expressed permission of JAMARA e.K.
