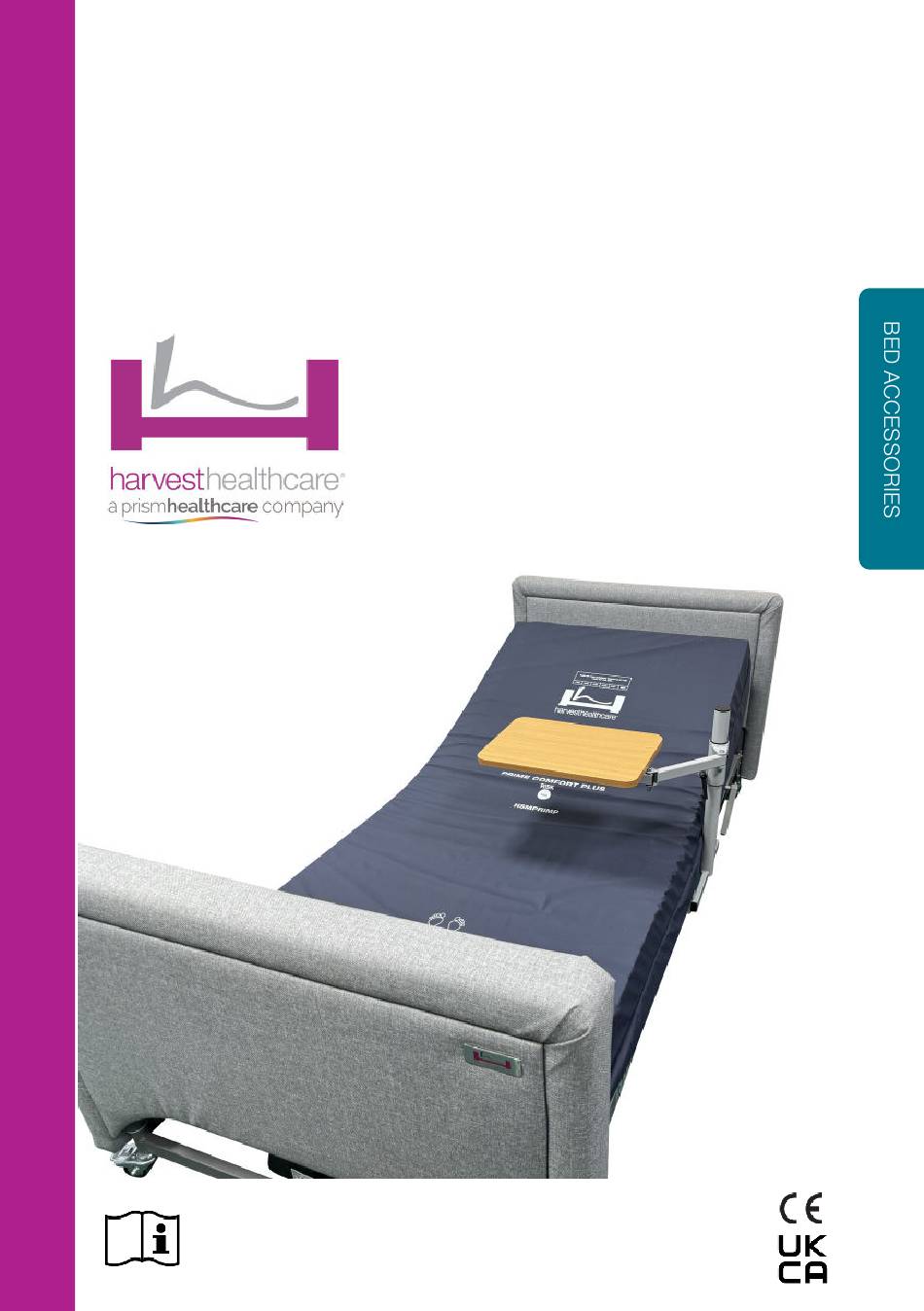

- Page 1 General User/Safety Guide PIVOTPRO OVER BED TABLE www.harvesthealthcare.co.uk E sales@harvesthealthcare.co.uk www.harvesthealthcare.co.uk...
-
Page 2: Table Of Contents
CONTENTS WARNINGS & CAUTIONS WARNINGS & CAUTIONS GENERAL INFORMATION GENERAL INFORMATION OVERVIEW - PIVOTPRO OVERBED TABLE OVERVIEW - PIVOTPRO OVERBED TABLE FITTING THE PIVOTPRO OVERBED TABLE TO A WOBURN BED FITTING THE PIVOTPRO OVERBED TABLE TO A WOBURN BED FITTING THE PIVOTPRO OVERBED TABLE TO OTHER BEDS FITTING THE PIVOTPRO OVERBED TABLE TO OTHER BEDS 8-10 USEFUL PART LIST... -
Page 3: Warnings & Cautions
WARNINGS & CAUTIONS READ THIS INSTRUCTION MANUAL CAREFULLY. PLEASE NOTE IN PARTICULAR THAT ALL THE SAFETY INSTRUCTIONS MUST BE OBSERVED. WARNING The PivotPro overbed table has a maximum Safe Working Load (SWL) of 8kg. The PivotPro overbed table has a maximum Safe Working Load (SWL) of 8kg. Never Never sit or lean on the table sit or lean on the table and never use it as a positioning aid. -
Page 4: General Information
GENERAL INFORMATION EXPLANATION OF THE SYMBOLS USED IN THE IFU AND THE LABELS. Read instructions / consult manufacturers guide. This symbol indicates general hazards. There is danger to life and health. Conformity mark in accordance with the Medical Device Directive (93/42 EEC). Declaration of Conformity for the UK Fragile, handle with care. -
Page 5: Overview - Pivotpro Overbed Table
OVERVIEW PIVOTPRO OVERBED TABLE ON DELIVERY AND BEFORE INSTALLATION CHECK THAT THE PACKAGING IS UNDAMAGED. REPORT ANY VISIBLE DAMAGE TO THE TRANSPORT COMPANY IMMEDIATELY. HLDWUL120- PIVOTPRO OVERBED TABLE Weight 6.0kg Clearance required under bed Approx 10mm (4”) Safe Working Load Tabletop Adjustment Lever Clamp Bolt... -
Page 6: Fitting The Pivotpro Overbed Table To A Woburn Bed
INSTALLATION PIVOTPRO OVERBED TABLE FITTING THE PIVOTPRO OVERBED TABLE TO THE WOBURN BEDS The following instructions show how to fit the PivotPro overbed table to a Woburn Bed. The following instructions show how to fit the PivotPro overbed table to a Woburn Bed. Remove side rails (if fitted). - Page 7 INSTALLATION PIVOTPRO OVERBED TABLE Tighten the clamping bolts ensuring that the PivotPro overbed table is securely attached to the bed frame. Bolt Clamp Bed Outer Spacer Frame Adjust the position of the table (using the locking lever shown below) to ensure the table does Adjust the position of the table (using the locking lever shown below) to ensure the table does not contact the bed user during operation, it’s important the pivot is at the position shown below not contact the bed user during operation, it’s important the pivot is at the position shown below...
-
Page 8: Fitting The Pivotpro Overbed Table To Other Beds
INSTALLATION PIVOTPRO OVERBED TABLE FITTING THE PIVOTPRO OVERBED TABLE TO A BED OTHER THAN A HARVEST WOBURN BRAND. Carry out a risk assessment to ensure the two products Carry out a risk assessment to ensure the two products and any other equipment in use are compatible. and any other equipment in use are compatible. - Page 9 INSTALLATION PIVOTPRO OVERBED TABLE Tighten up the clamping bolt until the clamping brackets meet the sleeping platform. Ensure Tighten up the clamping bolt until the clamping brackets meet the sleeping platform. Ensure the clamping brackets are in contact with the sleeping platform and not any of the mattress the clamping brackets are in contact with the sleeping platform and not any of the mattress platform fixings.
- Page 10 INSTALLATION PIVOTPRO OVERBED TABLE The PivotPro overbed table has a SWL of 8kg and is designed to hold objects up to this The PivotPro overbed table has a SWL of 8kg and is designed to hold objects up to this weight and should never be exceeded or sat/climbed or leaned on.
-
Page 11: Useful Part List
USEFUL PART LIST HLDWUL120 PIVOTPRO OVERBED TABLE SPARE PARTS Clamping Bracket (Single) HLB689 Clamp bolt HLB690 Spacer Pad & Screws HLB692 E sales@harvesthealthcare.co.uk www.harvesthealthcare.co.uk... - Page 12 Sheaf House, Bradmarsh Business Park, Bradmarsh Way, Rotherham S60 1BW T +44 (0)1709 377172 F +44 (0)1709 377173 E sales@harvesthealthcare.co.uk www.harvesthealthcare.co.uk tecfor care GmbH Fraunhofer Straße 8, 51647 Gummersbach Germany Qarad UK Ltd. 8 Northumberland Ave, Westminster London WC2N 5BY United Kingdom, Company no.
