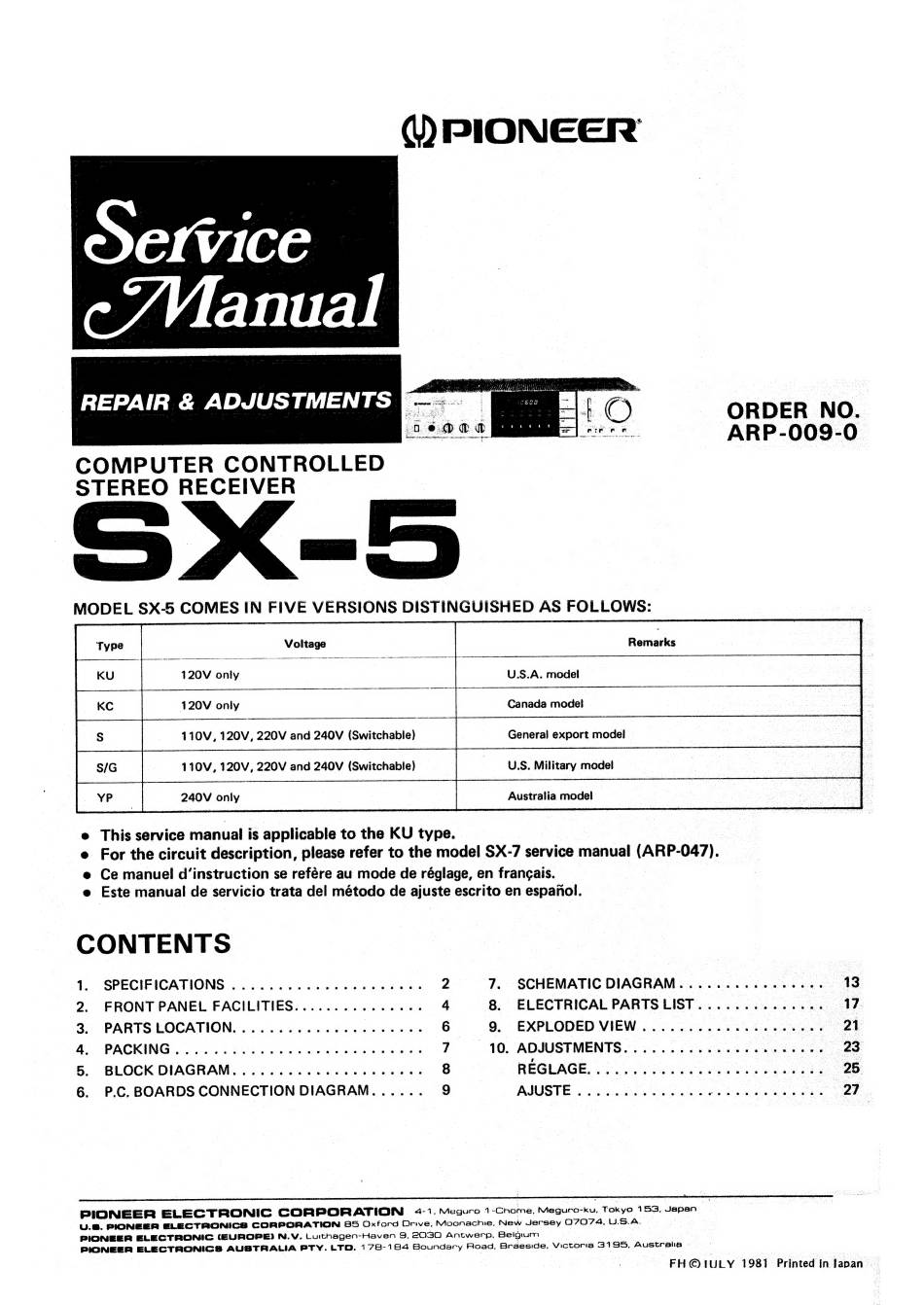

Pioneer SX-5 Service Manual

@) PIONEER
Service
ORDER NO.
ARP-009-0_
COMPUTER CONTROLLED
STEREO RECEIVER X=S
MODEL SX-5 COMES IN FIVE VERSIONS DISTINGUISHED AS FOLLOWS:
Voltage Remarks
120V only U.S.A. model
120V only Canada model
110V, 120V, 220V and 240V (Switchable) General export model
110V, 120V, 220V and 240V (Switchable) | U.S. Military model
240V only Australia model —
e This service manual is applicable to the KU type.
e For the circuit description, please refer to the model SX-7 service manual sail 047),
e Ce manuel d'instruction se refére au mode de réglage, en francais.
e Este manual de servicio trata del método de ajuste escrito en espanol.
CONTENTS
"FHOIULY 1981 Printed in Japan _
