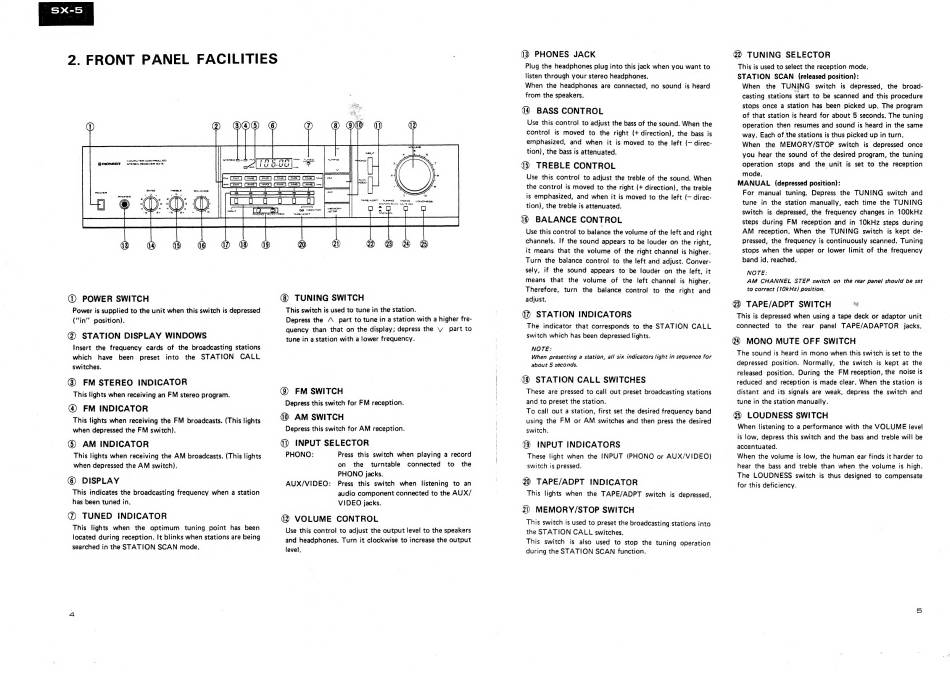

2. FRONT PANEL FACILITIES
cai)
CONE ER Son on
@ PrOweesrr ol srenco eecaweER sx-9
rPoOWwEF oars
2 6 OO: @
ri
SUL ?
peatintels
ba =
o © © © ®@
@® POWER SWITCH
Power is supplied to the unit when this switch is depressed
("in position).
@ STATION DISPLAY WINDOWS
Insert the frequency cards of the broadcasting stations
which have been preset into the STATION CALL
switches.
@ FM STEREO INDICATOR
This lights when receiving an FM stereo program.
@ FM INDICATOR
This lights when receiving the FM broadcasts. (This lights
when depressed the FM switch).
6) AM INDICATOR
This lights when receiving the AM broadcasts. (This lights
when depressed the AM switch).
6 DISPLAY
This indicates the broadcasting frequency when a station
has been tuned in.
@ TUNED INDICATOR
This lights when the optimum tuning point has been
located during reception. It blinks when stations are being
searched in the STATION SCAN mode.
QD 21) Qe @ @
@® TUNING SWITCH
This switch is used to tune in the station.
Depress the /\ part to tune in a station with a higher fre-
quency than that on the display; depress the \ part to
tune in a station with a lower frequency.
@ FM SWITCH
Depress this switch for FM reception.
AM SWITCH
Depress this switch for AM reception.
qd) INPUT SELECTOR
PHONO: Press this switch when playing a record
on the turntable connected to the
PHONO jacks.
AUX/VIDEO: Press this switch when listening to an
audio component connected to the AUX/
VIDEO jacks.
@ VOLUME CONTROL
Use this control to adjust the output level to the speakers
and headphones. Turn it clockwise to increase the output
level,
(3 PHONES JACK
Plug the headphones plug into this jack when you want to
listen through your stereo headphones.
When the headphones are connected, no sound is heard
from the speakers.
( BASS CONTROL
Use this control to adjust the bass of the sound. When the
control is moved to the right (+ direction), the bass is
emphasized, and when it is moved to the left (— direc-
tion), the bass is attenuated.
() TREBLE CONTROL
Use this control to adjust the treble of the sound. When
the control is moved to the right (+ direction), the treble
is emphasized, and when it is moved to the left (— direc-
tion), the treble is attenuated.
{® BALANCE CONTROL
Use this control to balance the volume of the left and right
channels. If the sound appears to be louder on the right,
it means that the volume of the right channel is higher.
Turn the balance control to the left and adjust. Conver-
sely, if the sound appears to be louder on the left, it
means that the volume of the left channel is higher.
Therefore, turn the balance control to the right and
adjust.
(2 STATION INDICATORS
The indicator that corresponds to the STATION CALL
switch which has been depressed lights.
NOTE:
When presetting a station, all six indicators light in sequence for
about § seconds.
48 STATION CALL SWITCHES
These are pressed to call out preset broadcasting stations
and to preset the station.
To call out a station, first set the desired frequency band
using the FM or AM switches and then press the desired
switch.
( INPUT INDICATORS
These light when the INPUT (PHONO or AUX/VIDEO)
switch is pressed.
20 TAPE/ADPT INDICATOR
This lights when the TAPE/ADPT switch is depressed.
2) MEMORY/STOP SWITCH
This switch is used to preset the broadcasting stations into
the STATION CALL switches.
@ TUNING SELECTOR
This is used to select the reception mode.
STATION SCAN (released position):
When the TUNING switch is depressed, the broad-
Casting stations start to be scanned and this procedure
stops once a station has been picked up. The program
of that station is heard for about 5 seconds. The tuning
operation then resumes and sound is heard in the same
way. Each of the stations is thus picked up in turn.
When the MEMORY/STOP switch is depressed once
you hear the sound of the desired program, the tuning
operation stops and the unit is set to the reception
mode.
MANUAL (depressed position):
For manual tuning. Depress the TUNING switch and
tune in the station manually, each time the TUNING
switch is depressed, the frequency changes in 100kHz
steps during FM reception and in 10kHz steps during
AM reception. When the TUNING switch is kept de-
pressed, the frequency is continuously scanned. Tuning
stops when the upper or lower limit of the frequency
band id, reached.
NOTE:
AM CHANNEL STEP switch on the rear panel should be set
to correct (10kHz) position.
This is depressed when using a tape deck or adaptor unit
connected to the rear panel TATE One ton jacks.
@) MONO MUTE OFF SWITCH
The sound is heard in mono when this switch is set to the
depressed position. Normally, the switch is kept at the
released position. During the FM reception, the noise is
reduced and reception is made clear. When the station is
distant and its signals are weak, depress the switch and
tune in the station manually.
@) LOUDNESS SWITCH
When listening to a performance with the VOLUME level
is low, depress this switch and the bass and treble will be
accentuated.
When the volume is low, the human ear finds it harder to
hear the bass and treble than when the volume is high.
The LOUDNESS switch is thus designed to compensate
for this deficiency.
