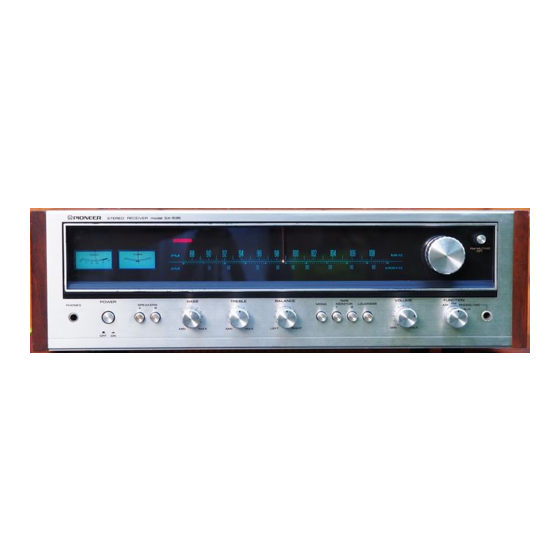

Pioneer SX-535 Service Manual

<ART-053-0>l
SERVICE MANUAL
AM/FM STEREO RECEIVER
KCU, FV, GN
c'
NOTE:
MODEL SX-535 COMES IN THREE VERSIONS DISTINGUISHED AS FOLLOWS;
Round label on
rear panel
Voltage
Type
KCU 120V only CSA (Canada) and UL (U.S.A.)
approved
FV
llOV, 120V, 130V, General export made! with
220V and 240V
(Switchable)
de-emphasis selector switch
GN 220V only SEMCO (Sweden), NEMCO
(Norway) and DEMCO (Denmark)
approved
Cl!) PIONEER*
32Y61H>
