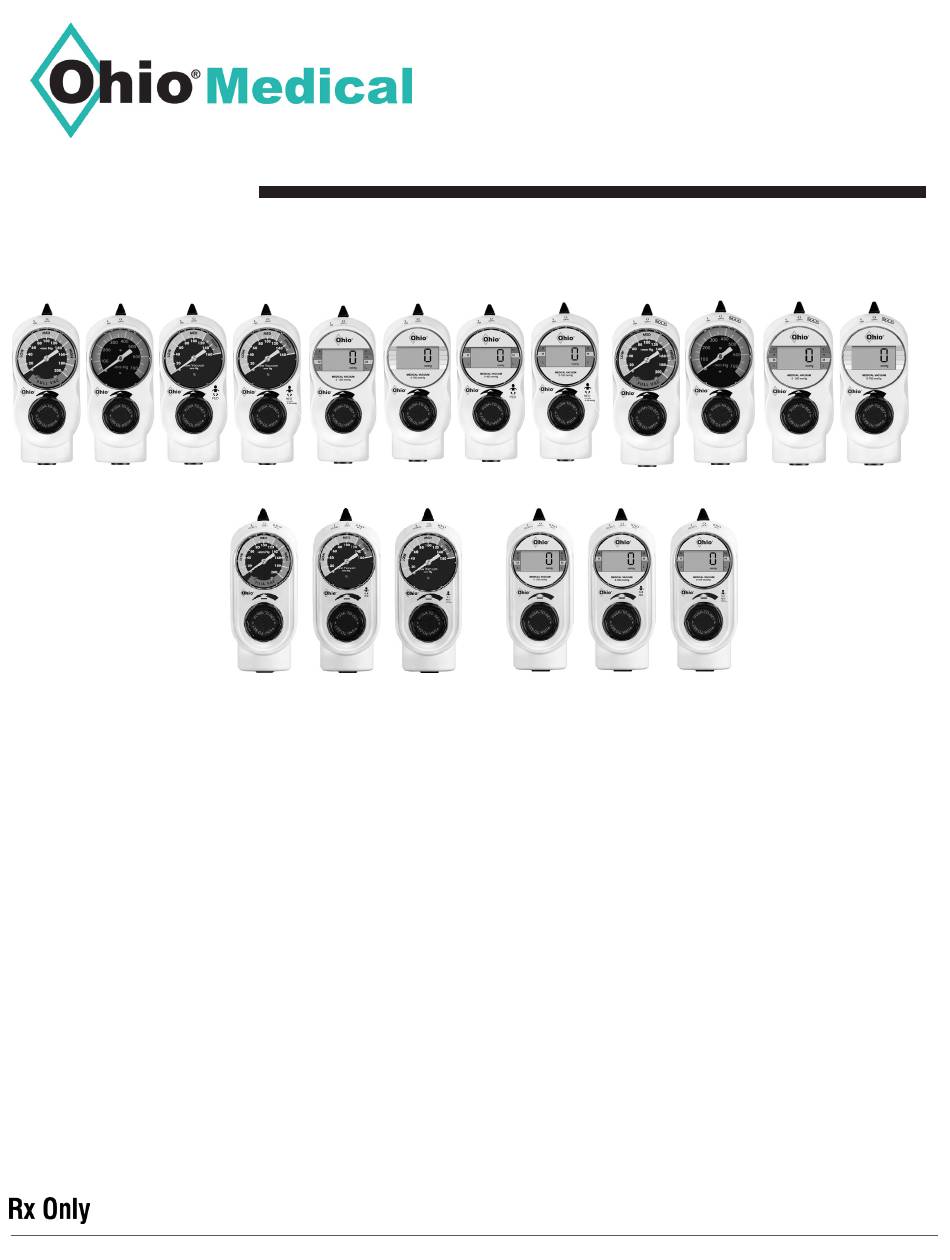

- Page 1 Push-To-Set Vacuum Regulators ™ Instructions for Use PC2SA PC2HA PC2LA PC2NA PC2SD PC2HD PC2LD PC2ND PC3SA PC3HA PC3SD PC3HD Adult Adult - High Adult Adult - High Adult Adult - High Adult Adult - High PISA PILA PINA PISD & PIHD PILD PIND Adult...
-
Page 2: Table Of Contents
Ohio Medical service manual for service or repairs to this product. For service advice, Ohio Medical recommends that a telephone request be made to the nearest Ohio Medical Regional Service Center. This product and any of its parts should only be repaired using written instructions provided by Ohio Medical or by Ohio Medical trained personnel. -
Page 3: Definitions
To reduce transportation personnel and/or service personnel exposure to hazardous contamination, DO NOT ship any suction equipment that has been contaminated. Ohio Medical will assume no responsibility for incidents which may occur if the product is not used in accordance with product labeling. -
Page 4: Precautions
Once completing that procedure, it is important to immediately take the unit out of service and contact an Ohio Medical Customer Service Representative for battery replacement. -
Page 5: Specifications
Specifications Performance Adult Pediatric Neonatal Continuous 80 L/min 80 L/min 80 L/min Flow rate 8 L/min 8 L/min 8 L/min Intermittent 0-16 L/min (Preset at 8 L/min) 15 seconds ON, 8 seconds OFF (± 3 seconds) Timing Can be adjustable Starts in the ON cycle Located in the vacuum supply line to prevent pressurization of the patient Positive Pressure... -
Page 6: Regulator Identification

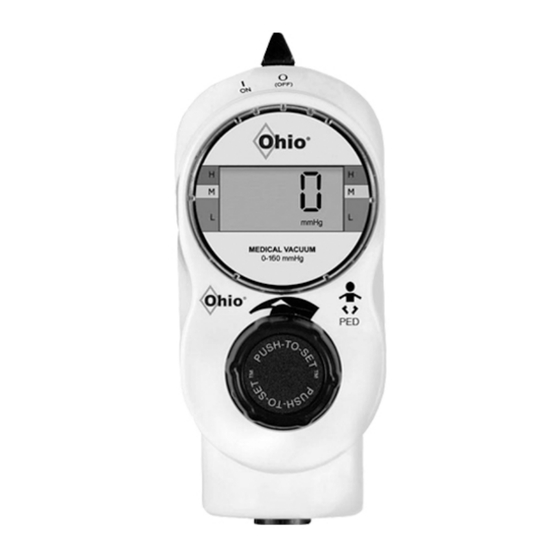

Regulator Identification Push-To-Set™ Vacuum Regulator Vacuum Gauge/Analog Fitting Port (inlet) Mode Selector Switch Probe/Adapter Port (outlet) Suction Control Knob Vacuum Gauge/Digital (Push-To-Set™) The pediatric and neonatal models are identified by the Baby Icon on the front right when looking at the unit. ... -
Page 7: Operation
(minimum inside diameter is 6 mm [0.25 in]). An Ohio Medical high flow suction filter and/or overflow safety trap (OST) should be used between the collection container and regulator to prevent contamination of the regulator, wall outlet and pipeline system. - Page 8 Operation DISS Fitting 1. Insert the safety trap into the regulator fitting. Situate the tubing in the desired position. 2. Turn the DISS wing nut clockwise to engage threads and tighten (there is no O-ring, so the vacuum seal depends on a tight connection). ...
-
Page 9: Pre-Use Checkout Procedure
Pre-Use Checkout Procedure Pre-Use Checkout Procedure WARNING The Pre-Use Checkout Procedure must be performed before using the equipment on each patient. If the regulator fails any part of the Pre-Use Checkout Procedure, it must be removed from service and repaired by qualified service personnel. Important: All tests must be performed with supply vacuum of 66.7 kPa (500 mmHg) minimum. -
Page 10: Cleaning And Disinfection
Cleaning and Disinfection Cleaning and Disinfection Routine cleaning of the regulator is recommended as a standard procedure after each use. Wipe all exterior surfaces with a solution of water and mild detergent and/or an approved cleaning solution. Approved Cleaning Solutions •... - Page 11 Any use other than that authorized by Ohio Medical LLC is prohibited. Ohio Medical and the Ohio Medical Logo are registered trademarks and Push-To-Set is a trademark of Ohio Medical LLC. Cavicide is a registered trademark of Metrex Research, LLC.
