Summary of Contents for Empire Comfort Systems BROILMASTER T3-2

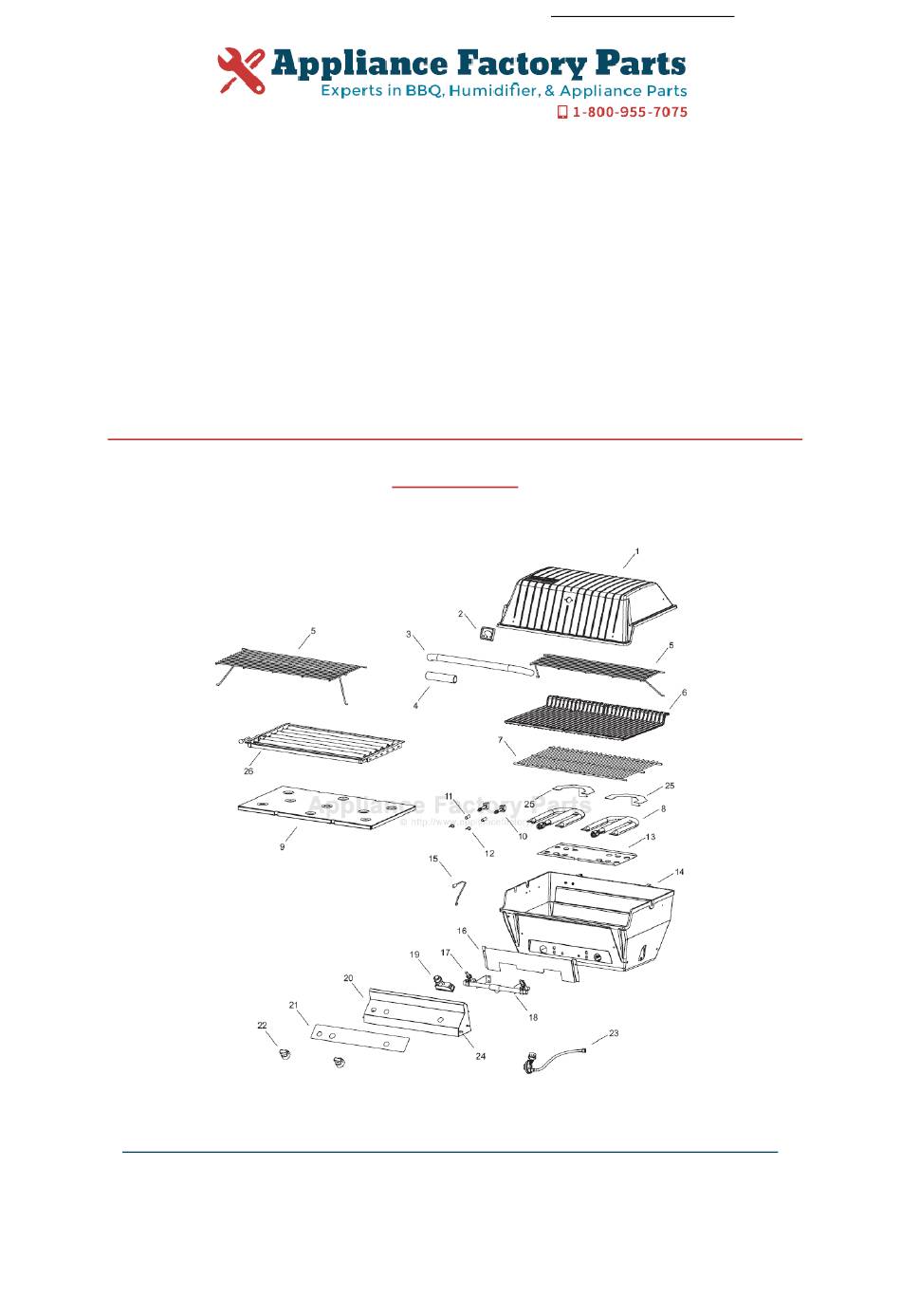

- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. Broilmaster T3CFWN Owner's Manual Shop genuine replacement parts for Broilmaster T3CFWN Find Your Broilmaster Grill Parts - Select From 310 Models -------- Manual continues below --------...

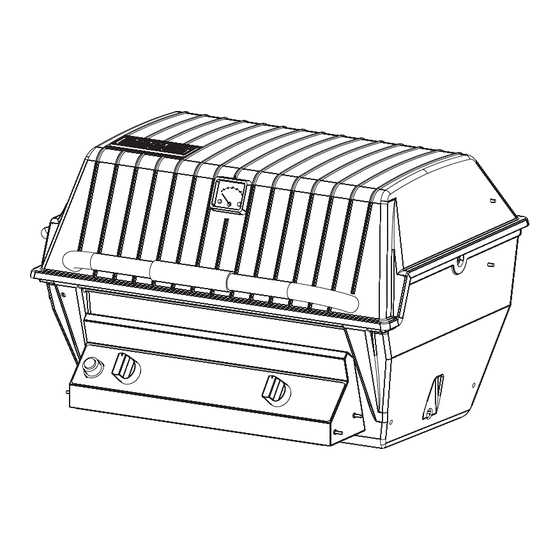

- Page 2 Premium "T" Gas Grill Owner’s Manual MODELS: T3-2, T3W-2, T3N-2, T3WN-2, T3C-2, T3CW-2, T3CN-2, T3CWN-2, T3CF-2, T3CFW-2, T3CFN-2, T3CFWN-2, T3CA-2, T3CAW-2, T3CAN-2, T3CAWN-2 GAS-FIRED Page 1...
- Page 3 IMPORTANT This manual should be read thoroughly by the person installing the grill and all persons who will use and maintain the grill. The installer should be sure the manual is left in the possession of the user. The user should retain this manual for future reference when using or cleaning the grill and to properly identify any repair parts that may be required.
- Page 4 Congratulations! Welcome to the beauty, durability, and prestige of a Premium Gas Grill by Broilmaster . With award-winning excellence built into every feature and du- ® rability that surpasses other Premium gas grills, Broilmaster has manufactured the ultimate gas grill for discriminating outdoor chefs for over 30 years. At Broilmaster, we continually strive to enhance the performance and quality of our products for your grilling enjoyment.
-
Page 5: Table Of Contents
ABLE OF ONTENTS Congratulations! You have chosen the finest grill for your outdoor cooking pleasure. Please take time to read this entire manual before assembling your Premium Broilmaster gas grill. Hardware Package ...............................5 Parts Diagram ............................... 6 Parts List .................................7 Grill Assembly ...............................8-12 Propane Gas Grills ............................13-15 Gas Conversion .............................. -
Page 6: Hardware Package
ARDWARE ACKAGE B072217 SCREW 1/4-20 X 3/4 PH TRUSS HEAD SS B073097 FOAM GRIP B101082 SPACER, IGNITOR B101048 WIRE, IGNITOR GROUND B069747 LUG, IGNITOR GROUND B073978 SCREW #10-24 X 1 PHILLIPS TRUSS STAINLESS B101212 COLLECTOR BOX ASSEMBLY B076529 BATTERY, AA R3918 KNOB B101361-0-1008 Page 5... -
Page 7: Parts Diagram
ARTS IAGRAM All repair part orders should be placed through your local Broilmaster dealer. To locate a dealer in your area, contact Broilmaster Customer Service at 800-851-3153 • www.broilmaster.com. To ensure prompt and accurate service, please provide the following information when placing a repair part order: Model Number, Serial Number, Part Name, Part Number, and Quantity of parts needed. -
Page 8: Parts List
ARTS Part Number T3 & T3W T3C & T3CF & T3CA & T3N & T3CN & T3CFN & T3CAN & Index No. Description T3CW T3CFW T3CAW T3WN T3CWN T3CFWN T3CAWN Grill Body Top - Black B101039 B101039 B101039 B101039 B101039 B101039 B101039 B101039... -
Page 9: Grill Assembly
RILL SSEMBLY Before You Begin Recommended Tools All Broilmaster grills require some assembly and installation. These items are recommended for the assembly of your Follow all instructions unless noted to apply only to other grill: specific models. • Phillips screwdriver If you purchased an accessory with your Broilmaster, follow •... - Page 10 RILL SSEMBLY 1. Mount grill onto cart, post or base per the mounting in- structions. 2. Place radiation shield (13) (flange side up) onto four raised bosses located on the interior bottom of the grill. Secure with four 1/4-20 x 3/4 screws. See Figure 1. Figure 1 3.
- Page 11 RILL SSEMBLY 6. Attach ignitor ground wire ends onto ground lugs. Slide 4. Slide ignitor spacers (11) onto collector box assem- ground lugs (12) over ignitor wires and onto collector blies (10) and secure with nuts. See Figure 5. box assemblies. Slide nuts over ignitor wires and se- Attention: Do not cut or damage ignitor wires.
- Page 12 RILL SSEMBLY 8. Re-attach the ignitor to the control panel , then tighten 13. T3CA models only: Position Smoker Shutter (26) see nut and insert AA battery, positive side down, and re- the DPA100 instruction manual included with the T3CA place ignitor button.
- Page 13 RILL SSEMBLY Lid Stop Attach the lid stop assembly to the grill bottom as shown. Figure 13. Lid stop assembly hardware Figure 13 Page 12 B101361-0-1008...
-
Page 14: Propane Gas Grills
ROPANE RILLS Grill Location Gas Type Never use Liquid Propane (LP) gas with a grill designed for When choosing the ideal location for your Broilmaster Pre- Natural gas, or Natural gas with a grill designed for Liquid mium Gas Grill, remember this grill is designed for outdoor Propane gas. - Page 15 ROPANE RILLS Propane Cylinder Safety Connection Requirements Liquid Propane (LP) gas has a long history of safe use Caution: Never use Liquid Propane (LP) gas in a grill when the safety precautions provided in this manual are designed for Natural gas, or Natural gas in a grill designed followed.
- Page 16 ROPANE RILLS Pressure Regulator and Hose Assembly The pressure regulator has an outlet pressure of not more than eleven (11") inches water column. It must be connected to the Propane gas cylinder’s male valve outlet before the grill can be operated. Caution: Operation of a Propane gas grill without the pressure regulator and hose assembly will cause gas leaks which could lead to fire or explosion, resulting in property damage or personal injury.
-
Page 17: Gas Conversion
ONVERSION TO ATURAL 1. Remove cooking grids, flavor screen or, briquets and 8. Remove the hose and regulator from the gas connection on grill with adjustable wrench. briquet rack from grill. 2. Remove burners and burner shields from grill (one (1) 9. -
Page 18: Natural Gas Grills
ATURAL RILLS Gas Type Grill Location The type gas required for your grill can be determined from When choosing the ideal location for your Broilmaster Pre- the product identification label located on the grill’s control mium Gas Grill, remember this grill is designed for outdoor panel. -
Page 19: Operation- Propane & Natural Grills
& N PERATION ROPANE ATURAL RILLS Operating Instructions Checking for Gas Leaks Check for gas leaks every time you connect your Broilmaster Before each use, inspect all hoses. If it is evident there is excessive abrasion or wear, or the hose is cut, it must be propane gas grill to a Propane gas cylinder, when a connected cylinder has not been used recently, or when either a natural replaced prior to using your Broilmaster grill. - Page 20 PERATION Before Cooking Electrical Accessories If an electrical accessory (e.g. rotisserie) is used on your grill, Before cooking on a grill for the first time, it should be operated to burn off any oil residue from the manufacturing the accessory must be electrically grounded in accordance with local codes or, in the absence of local codes, with the process.
-
Page 21: Maintenance
AINTENANCE Cleaning the Grill Grease Tray Caution: To prevent injury, use care when cleaning a Empty periodically. Replacement tray liners can be hot grill. purchased at most supermarkets where disposable aluminum baking pans are displayed. Note: Do not use a commercial cleaner on the cooking grids. -
Page 22: Troubleshooting
ROUBLESHOOTING Although the manufacturer has attempted to ensure that your grill will operate properly and satisfactorily, some- times problems do arise. The following troubleshooting guide lists several possible problems and their probable cause and solution. Problem Cause Solution Burner will not light. Gas injector not inserted in venturi Realign/engage gas injector with the tube. -
Page 23: Warranty
A bill of sale, cancelled check, or payment record should be kept to verify purchase date and establish warranty period. Note: Empire Comfort Systems is committed to continuous product improvement. Materials and specifications are subject to change without notice. -
Page 24: Notes
OTES B101361-0-1008 Page 23... - Page 25 URABLE RILL NOWN BROILMASTER ® is registered trademark of Empire Comfort Systems, Inc. 918 Freeburg Ave. Belleville, Illinois 62220 .broilmaster.com ISIT OUR WEB SITE AT WWW Page 24 B101361-0-1008...
