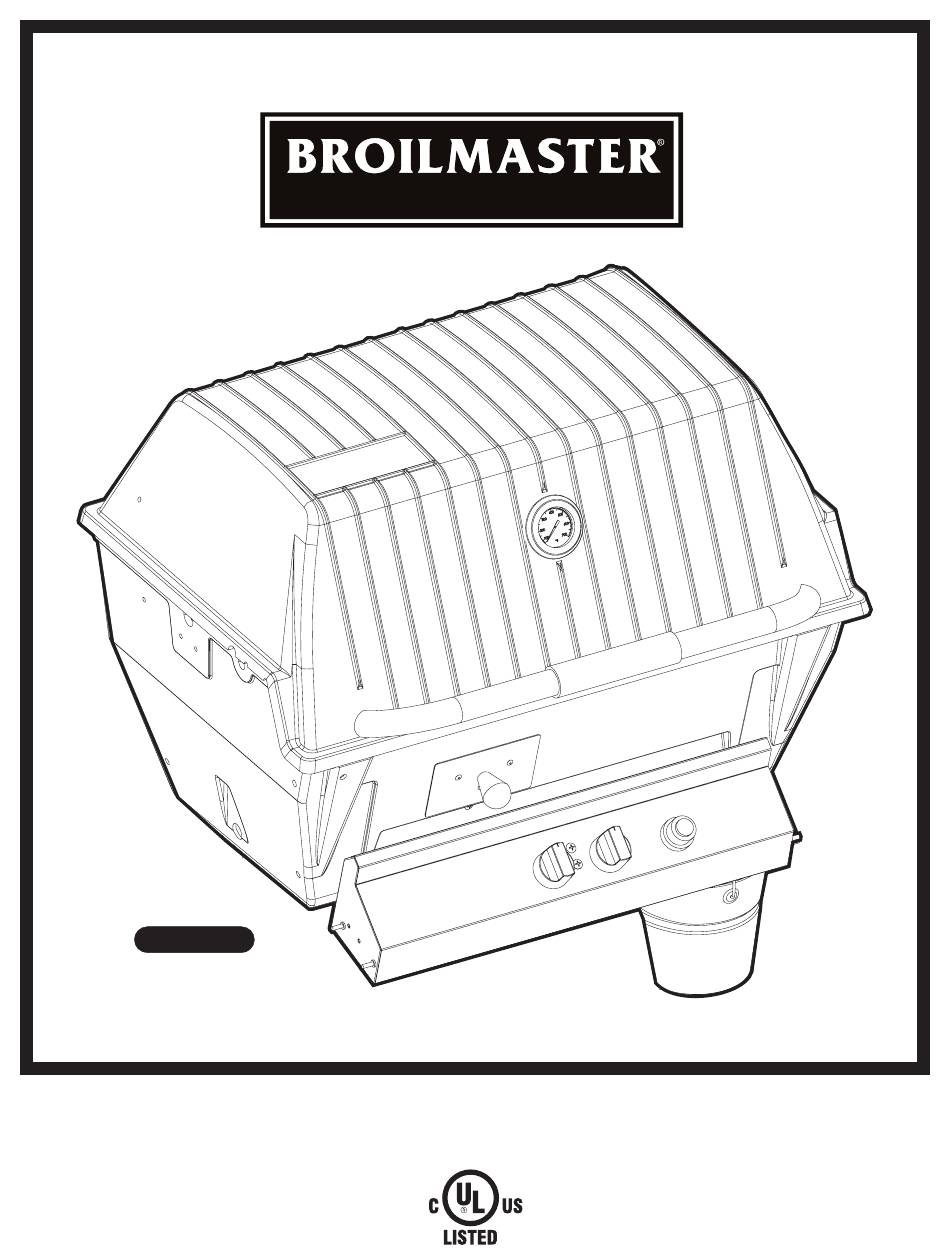

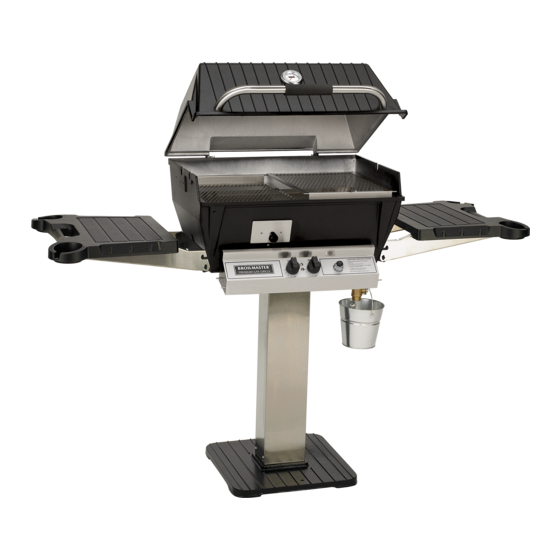

- Page 1 P R E M I U M G R I LL S SERIES Q3X(N)-3 Q3X GRILL HEAD GAS-FIRED...
- Page 2 IMPORTANT INFORMATION IMPORTANT his manual should be read thoroughly by the installer and by anyone who will use or maintain the grill. Installer - Write the model number, serial number, and date of installation in the manual. If available, attach a copy of the receipt. Leave this manual with the grill owner. Grill Owner - Read and retain this manual.
- Page 3 We hope you enjoy years of great meals prepared on your Broilmaster. And we hope to add your photo to the Hall of Fame one day. Thank You! BROILMASTER is a registered trademark of Empire Comfort Systems, Inc. Belleville, Illinois B102233-4-0119 Page 3...
-
Page 4: Table Of Contents
TABLE OF CONTENTS You have chosen the finest grill for your outdoor cooking pleasure. Please take time to read this entire manual before assembling your Premium Broilmaster gas grill. ASSEMBLY INSTRUCTIONS ..................... 5 Q3X SERIES PARTS DIAGRAM ....................6 GRILL HEAD HARDWARE PACK - B102153 ................7 UNPACK AND REMOVE LID ..................... -
Page 5: Assembly Instructions
ASSEMBLY INSTRUCTIONS BEFORE YOU BEGIN BEFORE YOU BEGIN BEFORE YOU BEGIN This Grill Head requires Broilmaster Mounting (Cart, Post, or a Built-In Kit). This Grill Head requires Broilmaster Mounting (Cart, Post, or a Built-In Kit). This Grill Head requires Broilmaster Mounting (Cart, Post, or a Built-In Kit). See Mounting Instructions to assemble mounting before Assembling Grill Head. -
Page 6: Q3X Series Parts Diagram
Q3X SERIES PARTS DIAGRAM DPP155 B101883 (1) GRILL BODY TOP B102042 (1) TOP WITH HEAT INDICATOR, HINGE B073097 (1) FOAM GRIP B102492 (1) LID HANDLE (W/SCREWS) B101420 (1,LP) OR B101421 (1,NAT) VALVE LPG OR NATURAL P315 (2, LP) P208 (2, NAT) DPA118 (2) ORIFICE LPG OR NATURAL COOKING SCREEN (2) REQUIRED... -
Page 7: Grill Head Hardware Pack - B102153
GRILL HEAD HARDWARE PACK - B102256 Standard hardware items such as bolts, screws, washers, and nuts can be purchased at your local hard- ware store. Do not order individual pieces of standard hardware. A replacement hardware pack may be ordered using the hardware pack part number at the top of the page. B102233-4-0119 Page 7... -
Page 8: Unpack And Remove Lid
UNPACK AND REMOVE LID REMOVING LID To ease assembly, remove Grill Lid and Warming Rack. Remove Warming Rack and set aside. Remove the two Pins and Clips at the rear of the Grill Prior to assembling Grill Head Lid and set aside. After Pins, Lid and assemble Cart or Post mounting first. -
Page 9: Insert Burner Hold-Down Bolt
INSERT BURNER HOLD-DOWN BOLT PHILLIPS PAN HEAD SCREW SS, 1/4-20 X 1-1/2 B101649 (1) HEX NUT, SS, 1/4-20 B076331(1) 7/16” After the Securing Bolt has been installed, proceed and Install Grill Head on a Cart or Post Mounting. (See Grill Head on a Cart or Post Mounting Instructions that come with the mounting option). -
Page 10: Wind Deflector Placement
WIND DEFLECTOR PLACEMENT Place the Wind Deflector in the bottom Casting. The Wind Deflector cannot be installed until after the bottom Casting is installed on the Cart or Post. Page 10 B102233-4-0119... -
Page 11: Insert Control Panel
INSERT CONTROL PANEL KEPS NUT, SS, 10-24 B073967(2) 3/8” Ease the Control Shield over the studs on the Control Panel. Then insert the two studs through the holes on the front of the grill. Attach with the two keps nuts. Remove Plastic Film on label. -
Page 12: Attach Ignitor Wire
ATTACH IGNITOR WIRE GROUND Connect the ground wire to the ground lug on the Collector Box before installing the burner into the casting. COLLECTOR BOX Page 12 B102233-4-0119... -
Page 13: Install Burner Assembly
INSTALL BURNER ASSEMBLY COTTER PIN, B057805(1) Slide the Venturi on to the Valve Insert the Burner Assembly into Assembly to the left as shown. the Grill bottom with the Venturi Tubes facing the front of the Grill. Raise the unsecured end of the Burner Bracket and slip it over the Phillips Truss Head Screw. -
Page 14: Connect Ignitor Leads
CONNECT IGNITOR LEADS IGNITER IGNITOR Route Leads from Burner and Secure to Ignitor Terminals (polarity is not important). The Ignitor terminals do not have a polarity. Page 14 B102233-4-0119... -
Page 15: Knob And Battery Placement
KNOB AND BATTERY PLACEMENT Unscrew the Ignitor Knob from the Control Panel, and insert AA Battery, positive side up, and replace Ignitor Button. AFTER B102233-4-0119 Page 15... -
Page 16: Install Smoker Drawer
INSTALL SMOKER DRAWER PHILLIPS PAN HEAD SCREW, SS,10-24 X 1 B073978 (1) KEPS NUT, SS, 10-24 B073967(1) 3/8” Smoker Drawer Attach Drawer Support Bracket to inside front of Grill Body. Page 16 B102233-4-0119... - Page 17 INSTALL SMOKER DRAWER Remove Plastic Film from Smoker Box. Slide the Smoker Box through the opening in the Grill Body. B102233-4-0119 Page 17...
-
Page 18: Assemble Drip Pan
ASSEMBLE DRIP PAN DRIP PAN 3/4” PIPE Thread the 3/4" Pipe into the bottom of the Drip Pan and tighten. PIPE SEALANT OR TEFLON TAPE 45° ELBOWS Assemble the two 45° Elbows. Note: Make sure the fittings are set to the proper position. -
Page 19: Install Cooking Grid And Bucket
INSTALL COOKING GRID AND BUCKET Set Cooking Grids in place. Note: The Cooking Grids allow two cooking levels. COOKING GRIDS DRIP PAN Lower the Drip Pan into the lower Casting with the Drain Pipe on the right side through the oval hole in the bottom of the Casting. -
Page 20: Install Handle
INSTALL HANDLE Handle is shipped with screws installed. Remove the screws, align handle with top casting, and re-install screws. Tip: For ease of installation, lightly lubricate the inside of the Foam Grip with Liquid Soap before twisting it on to Handle. -
Page 21: Reinstall Lid
REINSTALL LID HINGE PIN, (FROM PREVIOUS STEPS) B057804 (1) COTTER PIN, (FROM PREVIOUS STEPS) B057805 (1) B102233-4-0119 Page 21... -
Page 22: Propane Gas Grills
PROPANE GAS GRILLS 3/4” For Natural Gas Grills please proceed to page 26. Attach the LP hose and Regulator to the fitting on the Burner Control Valve mounted on the Control Panel. Tighten this connection with a wrench. LP GAS REGULATOR AND HOSE Page 22 B102233-4-0119... - Page 23 PROPANE GAS GRILLS Grill Location Failure to follow these safety precautions could result in a fire or explosion causing property damage or personal This grill is designed for outdoor use only. injury. Never operate your grill in any building, garage, or other Use extreme caution when handling propane gas cylinders.
- Page 24 PROPANE GAS GRILLS Propane Cylinder Requirements ATTENTION: Propane gas cylinders must comply with Cylinder Requirements and Connection Requirements above. Your Broilmaster Premium Gas Grill requires a standard 20-lb propane gas cylinder, which is available from your grill dealer, Note: Not all valve and cylinder combinations are compatible. your LP supplier, and at most hardware and home stores.
-
Page 25: Connecting Propane Gas Grill
CONNECTING PROPANE GAS GRILL Pressure Regulator and Hose Assembly The pressure regulator has an outlet pressure of not more than eleven inches water column. It must be connected to the Propane gas cylinder’s female valve outlet before the grill can be operated. Make sure the grill’s burner controls are off. - Page 26 CONNECTING NATURAL GAS GRILL 3/4” Attach the Natural Gas hose to the fitting on the Burner Control Valve mounted on the Control Panel. Snug this connection with a wrench. 12 FT QUICK DISCONNECT HOSE Not Supplied (Purchased Accessory, NG12) Page 26 B102233-4-0119...
-
Page 27: Natural Gas Grills
NATURAL GAS GRILLS Grill Location Connection Requirements This grill is designed for outdoor use only. Broilmaster natural gas grills are not equipped with pressure regulators. Your gas grill operates at a manifold pressure of Never operate your grill in any building, garage, or other seven inches water column. -
Page 28: Completed Assembly
COMPLETED ASSEMBLY Thank you for purchasing a Premium Gas Grill and we hope you enjoy years of great meals prepared on your Broilmaster. Please feel free to visit the Broilmaster Facebook page and share photos of your Broilmaster grill. Thank You! Page 28 B102233-4-0119... -
Page 29: Owner's Manual For Q3X Grills
OPERATION - PROPANE AND NATURAL GAS GRILLS Check for Gas Leaks Operating Instructions Check for gas leaks every time you connect your Broilmaster Lighting with the Electric Ignitor propane gas grill to a Propane gas cylinder, when a connected cylinder has not been used recently, or when either a natural or propane grill is being used for the first time. - Page 30 OPERATION - PROPANE AND NATURAL GAS GRILLS Before Cooking Electrical Accessories Before cooking on a grill for the first time, burn off any oil residue Any electrical accessory (e.g. rotisserie) used must be electrically from the manufacturing process. grounded in accordance with local codes or, in the absence of local codes, with the National Electric Code, ANSI/NFPA 70.
-
Page 31: Maintenance
MAINTENANCE Cleaning the Grill Grill Bottom Once or twice a year remove cooking grids and drip pan to clean the interior of the grill. Scrape off baked on residue with a putty CAUTION knife or brass brush and rinse with water. o prevent injury, use care when cleaning a hot grill. - Page 32 MAINTENANCE The venturi tubes allow air and gas to mix prior to burning, Turn off the grill and allow it to cool before cleaning. Never use ensuring an efficient flame. Spiders or other small insects may aerosol sprays or flammable cleaners on or near a hot grill. build webs or nests inside the tubes obstructing air flow.
-
Page 33: Troubleshooting
TROUBLESHOOTING Although we have attempted to ensure that your grill will operate properly and satisfactorily, sometimes problems do arise. The following troubleshooting guide lists several possible problems and their probable cause and solution. Do not repair or replace any part of the grill unless specifically recommended in this manual. All other service should be referred to a qualified technician. -
Page 34: Important Safety Information
IMPORTANT SAFETY INFORMATION WARNING piders and insects can nest in gas grill burners causing the gas to flow from the front of the burner and ignite under the control panel. This is very dangerous and can damage the grill, making it unsafe to operate. - Page 35 IMPORTANT SAFETY INFORMATION Practice Safe Grilling Do not wear loose fitting clothing or readily flammable clothing (such as synthetics) around the grill. Never let clothing, pot holders, or other flammable materials come in contact with or too close to any grate, burner or hot surface. Fabric may ignite and result in personal injury. Use only dry pot holders.
-
Page 36: Cooking Tips
COOKING TIPS Cook Food To Proper Temperatures Cooking food safely requires that you raise the internal temperature of the meat high enough and for a long enough period of time to kill any food-borne bacteria that may cause illnesses. Color is not the best indicator that food is safe to eat. Use a high-quality probe thermometer to be sure your food is properly cooked. - Page 37 COOKING TIPS Grilling Smoking Place the cooking grids in the low position. The Qrave Grill is equipped with a front load smoker box. Preheat your grill with both valve knobs set to High for 15 minutes. Soak your flavor smoking chips in water for about 15 min- No liquids in drip pan.
-
Page 38: Warranty Terms
WARRANTY TERMS Empire Comfort Systems Inc. warranties this Broilmaster premium gas grill to be free from defects at the time of purchase and for the periods specified below. Broilmaster Premium Gas Grills must be installed by a qualified tech- nician and must be maintained and operated safely, in accordance with the instructions in the owner’s manual. This warranty applies to the original purchaser only and is not transferable. -
Page 39: Master Parts Distributor List
MASTER PARTS DISTRIBUTOR LIST To order parts under warranty, please contact your local Broilmaster dealer. See the dealer locator at www.broilmaster.com. To provide warranty service, your dealer will need your name and address, purchase date and serial number, and the nature of the problem. -
Page 40: Grill Maintenance History
Date Maintenance Performed PR EM IU M GR ILL S BROILMASTER A Division of Empire Comfort Systems, Inc. Belleville, Illinois .broilmaster.com isit our web site at www If you have a general question about our products, please e-mail us at info@empirecomfort.com.
