Using the Main Unit with <C-SAT> Tuner Board
Instruction Manual for ONKYO TX-NR1000 / Integra DTR-10.5 / Integra Research RDC-7.1
Thank you for purchasing the Tuner Board <C-SAT>. When this optional board is inserted into option slot "K" on the main unit's
rear panel, it can be used as the XM or SIRIUS/FM Stereo/AM tuner terminal. Furthermore, <C-SAT> becomes capable of
supporting RDS.
Usage varies depending on the main unit to which you want to add the optional board. Refer to the user's manual that comes with
your main unit before starting operations.
For some main units, instructions may be provided in the user's manual. In this case, please find instructions in the manual
that comes with your main unit.
Caution:
• Before connecting or disconnecting the board, make sure to power off the main unit, and then unplug the power cord from the
AC outlet. Connecting or disconnecting the board while power is being supplied to the main unit may cause failure.
• Plug the optional board into the individual designated slot. Plugging it into the wrong slot may cause failure.

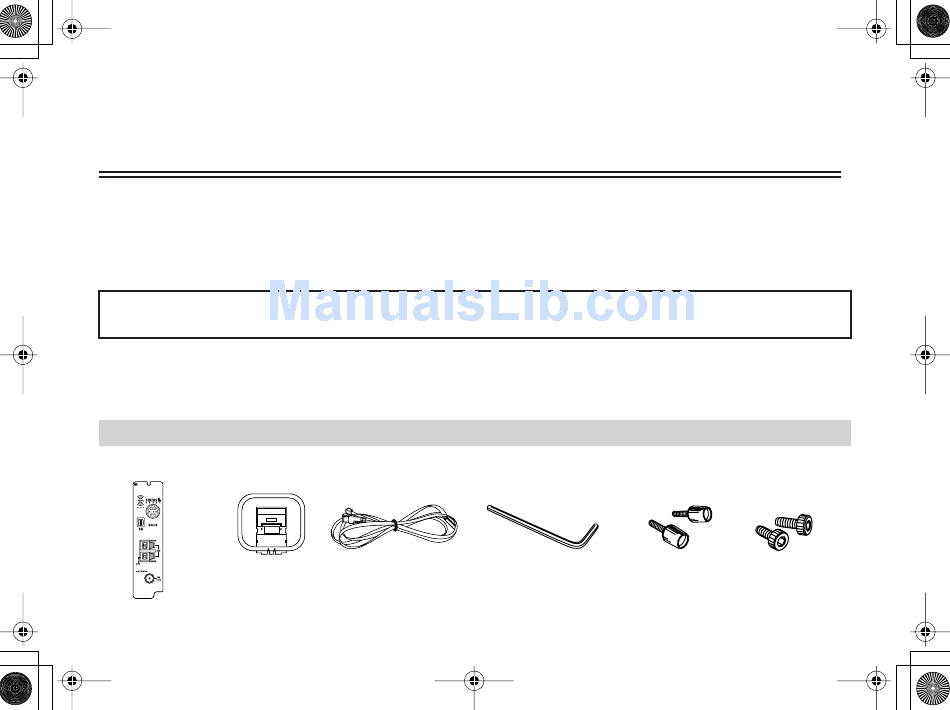

Supplied Accessories
Verify the following items are included in the package:
Board
AM antenna
FM antenna
Allen wrench (1 EA)
Hand screws for
Hexagon
removing board
screws
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C-SAT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Onkyo C-SAT

Summary of Contents for Onkyo C-SAT

  • Page 1 XM or SIRIUS/FM Stereo/AM tuner terminal. Furthermore, <C-SAT> becomes capable of supporting RDS. Usage varies depending on the main unit to which you want to add the optional board. Refer to the user’s manual that comes with your main unit before starting operations.
  • Page 2 C- SAT.fm 2 ページ ２００７年３月２９日 木曜日 午前１１時４７分 Installing Board I If this is the first time a slot is used: Power off the main unit, and then unplug the Using the provided Allen wrench, power cord from the AC outlet. loosen the hexagon screws, one...
  • Page 3 MA IN ZON E 2 insertion. ZON E 3 Fix the option board firmly to the main unit using the hexagon screws on the top and bot- tom. Make sure to fasten the two screws completely. If they are loose, the...

  • Page 4: Listening To Xm Satellite Radio

    XM’s dedication to playing the richest selec- xmradio.com (US residents) and xmradio.ca (Canadian resi- tion of music is matched by its passion for live sporting dents). Only available in the 48 contiguous United States and events, talk radio, up-to-the-minute news, stand-up Canada.
  • Page 5 XM Mini-Tuner jack secrets of Digital Voice Systems, Inc. The software is licensed solely for use within this product. The user of this or any other software contained in an XM Radio is explicitly prohibited from attempting to copy, decompile, reverse engineer, hack, manipulate or disassemble the object code, or in any other way convert the object code into human-readable form.
  • Page 6 You can use your main unit and the remote controller supplied with your main unit to perform XM Radio operations. Button names may vary depending on the model you use. The following table shows the button names of the main unit and of the remote controller, respectively, and their corresponding operations.

  • Page 7: Setting The Satellite Radio Mode

    Signing Up for XM Satellite Radio Setting the Satellite Radio Mode Before you can use XM Satellite Radio, you must first sign up for Press the [SETUP] button. an account. You’ll need a major credit card and your XM Satellite Radio ID, which you can get from the main unit, as explained below, or from the Mini-Tuner System package and itself.

  • Page 8: Selecting Xm Radio Channels

    ] buttons or push enter the channel number. SELECT/PRESET dial to select a category. The channel is selected. For example, to select channel #20, press 0, 2, 0, or 2, 0, I Category Search Mode [ENT]. Press the [ENTER] or [TUNING MODE] button to select “Category Search”...

  • Page 9: Presetting Xm Radio Channels

    I Selecting Presets Presetting XM Radio Channels To select a preset, use the SELECT/PRESET You can store a combination of up to 40 of your favorite XM dial or Preset Up/Down buttons, or the remote channels and AM/FM radio stations as presets.

  • Page 10: Displaying Xm Radio Information

    Song title (TITL) code. Simply wait a few seconds until the update is done. OR, Listening Mode You may be attempting to tune to a channel that is blocked or Note: that you cannot receive with your subscription package. To receive that channel, contact XM Satellite Radio.
  • Page 11 Canada: 1-877-438-9677 Positioning the XM Mini-Tuner System You can check the signal strength of the XM radio signal and adjust the position of the XM Mini-Tuner System accordingly. Press the [SETUP] button. If you can’t receive the “Satellite” signal, adjust your XM Mini-Tuner System so that the “Terrestrial”...

  • Page 12: Using Sirius Satellite Radio

    What is SIRIUS Satellite Radio? ® Listening to SIRIUS Satellite Radio Simply The Best Radio on Radio™ with all your favorite entertainment including 100% commercial-free music, plus Important SIRIUS Satellite Radio Information superior sports coverage, uncensored talk and comedy, world-...

  • Page 13: Positioning The Antenna

    DIN connector cable, and an AC power adapter. See the Area 1: Point the antenna toward the sky in the east , north- SiriusConnect Home tuner’s instructions for more informa- east , or southeast , either through a window or outside.
  • Page 14 You can use your main unit and the remote controller supplied with your main unit to perform Sirius Satellite Radio operations. Button names may vary depending on the model you use. The following table shows the button names of the main unit and of the remote controller, respectively, and their corresponding operations.

  • Page 15: Signing Up For Sirius Satellite Radio

    Before you can use SIRIUS Satellite Radio, you must first sign Press the [SETUP] button. up for an account. You’ll need a major credit card and your SIRIUS Satellite Radio ID, which you can get from the main unit, as explained below, or from the SiriusConnect Home Use the [ ]/[ ] buttons to select “Hardware...

  • Page 16: Selecting Sirius Satellite Radio Channels

    SELECT/PRESET dial to select a category. enter the channel number. The channel is selected. I Category Search Mode For example, to select channel #20, press 0, 2, 0, or 2, 0, [ENT]. Press the [ENTER] or [TUNING MODE] button to select “Category Search” mode.
  • Page 17 Presetting SIRIUS Channels To select a preset, use the SELECT/PRESET You can store a combination of up to 40 of your favorite SIR- dial or Preset Up/Down buttons, or the remote IUS Satellite Radio channels and AM/FM radio stations as controller’s CH [+/–] button.

  • Page 18: Acquiring Signal

    Listening Mode Make sure the SiriusConnect Home tuner is connected Note: properly. • If the category, artist, or song title is not available, “- - -” will ❑ SUBSCRIPTION UPDATED be displayed instead. Displayed while your subscription is being updated. No...
  • Page 19 SAT signal strength bar is ❑ CALL SIRIUS as long as possible. Displayed when you select a channel to which you are not subscribed. Call SIRIUS if you want to subscribe. ❑ CHECK SIRIUS TUNER Displayed if the SiriusConnect receiver is not connected.

  • Page 20: Parental Lock

    Parental Lock Use the [ ] buttons to select the channel that you want to lock out. You can lock out channels that you do not want to receive. Press the [ ] buttons to select “Locked,” Press the [SETUP] button.

  • Page 21: Changing The Pin Number

    Press the [SETUP] button. have successfully changed the PIN number. If you enter the wrong PIN number, “Wrong Code!” appears on the display. You’ll be returned to step 5, and Use the [ ] buttons to select “SAT Radio will need to start again.

  • Page 22: Displaying Rds Information

    C- SAT.fm 22 ページ ２００７年３月２９日 木曜日 午前１１時４７分 Receiving RDS Radio RDS stands for Radio Data System and is a type of FM broad- Displaying RDS Information casting. RDS was developed within the National Radio Sys- tems Committee (NRSC) and is available in the North Press the [DISPLAY] / [Display] button repeatedly to cycle America.
  • Page 23 C- SAT.fm 23 ページ ２００７年３月２９日 木曜日 午前１１時４７分 Memo...
  • Page 24 C- SAT.fm 24 ページ ２００７年３月２９日 木曜日 午前１１時４７分 Printed in Japan D0704-1 SN 29344328 (C) Copyright 2007 ONKYO CORPORATION Japan. All rights reserved. * 2 9 3 4 4 3 2 8 *...
