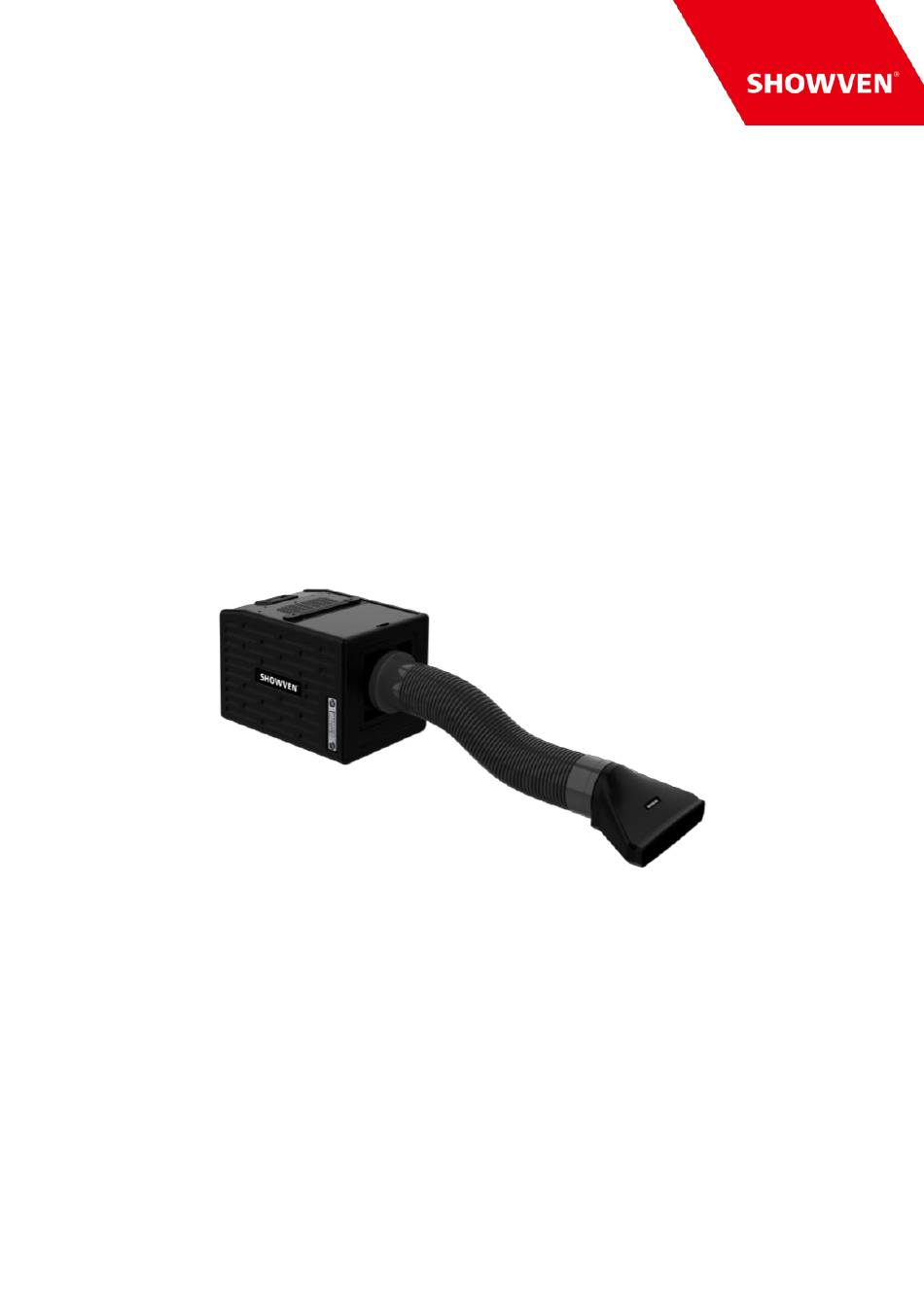

- Page 1 USER MANUAL Creeper AQ mini Low Fog Generator V1.1 2024/06/24 SHOWVEN Technologies Co., Ltd.
- Page 2 Thanks for choosing SHOWVEN® CREEPER AQ mini low fog generator, we wish it will bring you lots of exciting moments. Please read the following manual carefully before operating this product. SAFETY CONSIDERATIONS Δ Unauthorized repair are prohibited, it may cause serious incident.
-
Page 3: Technical Specifications
User friendly LCD control panel 2L fluid tank, support 1h continuous output. Built-in water tank, support external large water tank. Wireless remote control. Technical Specifications Δ Model: AQ mini Dimension: 460×300×324mm Voltage: AC200-240V, 50-60Hz / AC100-120V, 50-60Hz Work Power: 2000W Heat-up Time: Appr. - Page 4 3-Pin DMX OUT Power ON/OFF LCD Control Panel Water Filling Port, Fluid Tank Liquidometer Fog output pipe Operation Panel Δ 1. LED display area MENU: switch through setup menu +: Parameter up; multiplex “TIMER” (smoke output time) -: Parameters down; multiplex “VOLUME” (smoke output start) ENTER: confirm and save parameters (screen will blink once parameter saved);...
- Page 5 3. Setting Menu: Press “MENU” switch through setup menu. Items Value Explanation DMX Address 1~512 DMX address setup Fog Output 1-100% Fog output volume setup Fan Speed 1-100% Fan speed setup Interval Set 1-600s Set fog output interval Duration Set 1-600s Set fog output duration Wireless Set...
- Page 6 , Warranty will be void if any other type fog fluid is used. ® 3. Power ON Creeper AQ mini ① Connect the machine to suitable rated power supply. Please ensure power supply meets the requirement. Always connect the machine to a protected circuit and ensure it is properly grounded.
- Page 7 (except for the instrument damage caused by human factors) in warranty period. Please don't repair machine without factory permission. Below situations NOT included in warranty service: Damage caused by use other type of fog fluid which is not SHOWVEN ® FX-M.
- Page 8 Showven Technologies Co., Ltd. Tel: +86-731-83833068 Web: www.showven.cn E-mail: info@showven.cn Add: No.1 Tengda Road, Liuyang Economic & Technical Development Zone, Changsha, Hunan, 410300, P.R.China...
