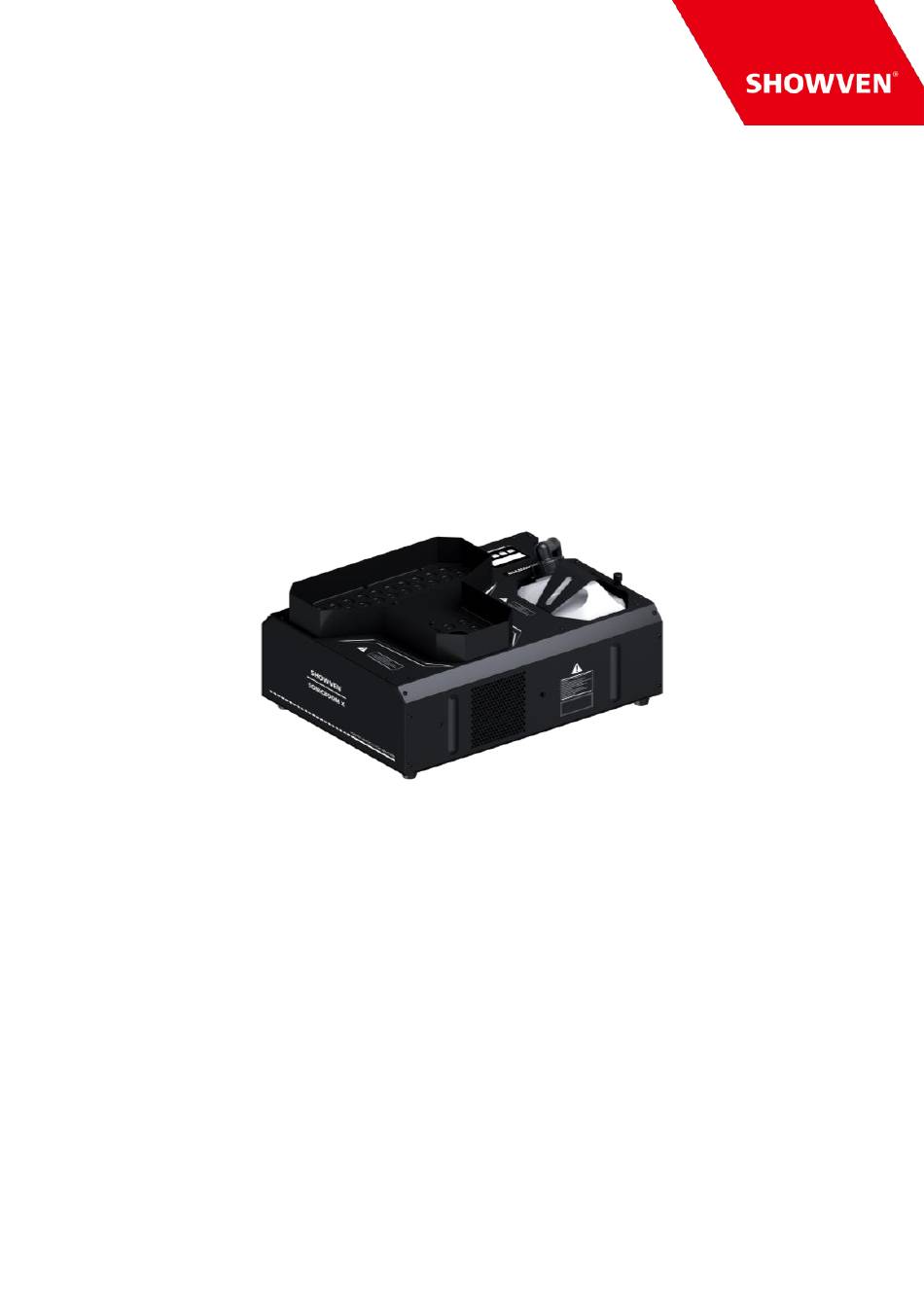

- Page 1 USER MANUAL SONICBOOM ® X SMOKEJET V3.0 2022/05/11 Showven Technologies Co., Ltd.
- Page 2 If the machine fails to work, please stop operation and unplug the machine. Check fog fluid, ® fuse, power connection etc. carefully, if can’t solve the problem, please contact SHOWVEN ® or your local SHOWVEN partner for advise.
- Page 3 TANK CAPACITY: 2.5L FLUID CONSUMPTION RATE: 5min/L DMX CHANNELS: 1/11 CONSUMABLES: FX-S Structure Δ 1. Output Nozzle 2. LED 3. Power Switch 4. Power IN 5. Fuse 6. Handle 7. Safety Loop 8. Cooling Fan 9. Wireless Module (only available on wireless version machine) ®...
- Page 4 Operation Panel Δ 1. Control button area MENU: Short press to switch interface, press and hold for 3 seconds can switch to the advanced setup interface Parameters up; multiplex “TIMER” (smoke output time) Parameters down; multiplex “VOLUME” (smoke output start) ENTER Confirm and save parameters, screen will blink once when save successfully.
- Page 5 E1 Pressure Error ® In order to protect pump, SONICBOOM X with fuel detect function. When there is no fog fluid, system can’t reach target pressure in the setting time after turn on machine, pump will stop working and report E1. After machine report E1 please check the fluid bottle and fill it. There are three way to clear the error information.
- Page 6 Channels Function Channel 1 Fog ON/OFF: (0-9) OFF, ( 10-255) ON Channel 2 Inner LED RED: (0-9) OFF, (10-255) LED brightness increase Channel 3 Inner LED GREEN: (0-9) OFF, (10-255) LED brightness increase Channel 4 Inner LED BLUE: (0-9) OFF, ( 10-255) LED brightness increase Channel 5 Outer LED RED: (0-9) OFF, (10-255) LED brightness increase Channel 6 Outer LED GREEN: (0-9) OFF, (10-2551) LED brightness increase Channel 7 Outer LED BLUE: (0-9) OFF, (10-255) LED brightness increase...
- Page 7 Fill the fluid bottle with fast dissipate fog fluid. Please not exceed the maximum fuel level when filling. ® For best effect please use SHOWVEN original fluid FX-S. Improper use of fluid will lead to machine malfunction. Warranty will be void if any other type of fog fluid is used.
- Page 8 Fluid spill because heat can’t effectively transmit to fog fluid, leads to insufficient atomization of the fog fluid in the heating pipe. Possible Reasons: ® Use low quality fog fluid instead of SHOWVEN original fog fluid. Use inappropriate fog fluid. For different types of fog fluid, the atomization temperature is different.
- Page 9 Please don't repair machine without factory permission Below situations NOT included in warranty service: ® ® Damage caused by use other type of fog fluid which is not from SHOWVEN or SHOWVEN authorized distributor. Damage caused by improper transportation, usage, management, and maintenance, or damage caused by human factors;...
- Page 10 Phone: 407-857-8770 Distributor: Fax: 407-857-8771 Email: sales@techni-lux.com www.techni-lux.com Showven Technologies Co., Ltd. Tel: +86-731-83833068 Web: www.showven.cn E-mail: info@showven.cn Add: Liuyang Economic Development Zone, Changsha, 410300, Hunan Province, P.R.China...
