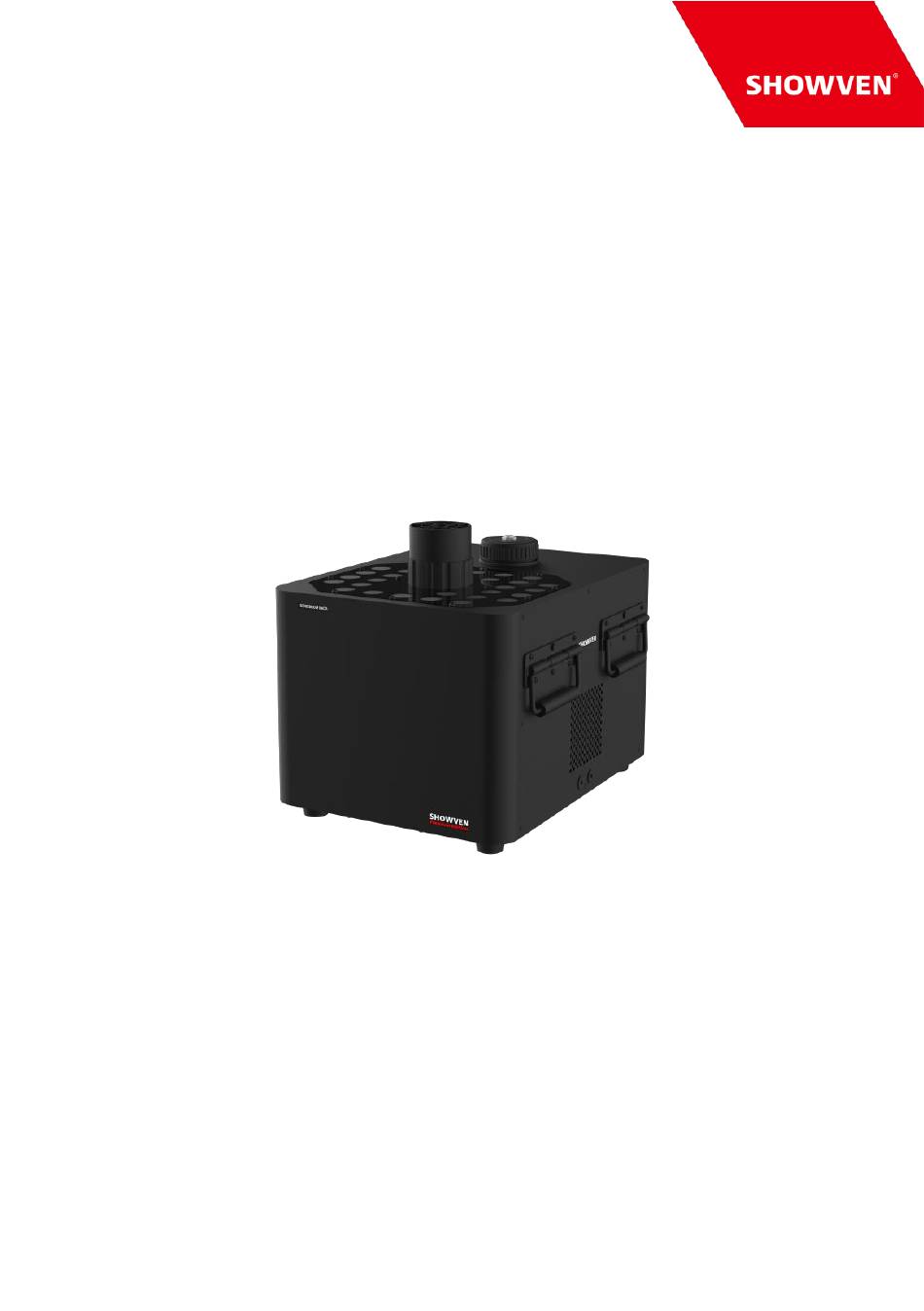

- Page 1 USER MANUAL SONICBOOM ReCO ® V1.0 2025/02/26 SHOWVEN Technologies Co., Ltd.
- Page 3 ® ® Thanks for choosing SHOWVEN SONICBOOM ReCO , we wish it will bring you lots of exciting moments. Please read the following manual carefully before operating this product. SAFETY CONSIDERATIONS Δ Unauthorized repair are prohibited, it may cause serious incident.
- Page 4 MAX. CONTINUOUS OUTPUT DURATION: 8s HEATING UP TIME: 12-15min for 220V standard power mode (low power mode and 110V version takes longer time to heat up) OUTPUT: 120000cuft/min FLUID CONSUMPTION RATE: 500ml/min BUILT-IN TANK CAPACITY: 5L DMX CHANNEL: 1/11 CONSUMABLES: FX-S, FX-M Structure Δ...
- Page 5 Operation Area Δ 1. ARM alarming light BLINK: DMX armed, ready for firing ON: No DMX connection. NOTE: you can turn off the ARM light in ADVANCED menu by switch the ARM State to OFF status. 2. Dispaly Interface 2.1 Data Bar DMX: DMX address, red background means DMX connected.
- Page 6 3. Error information Error information Explanation E0 Factory Mode Device under “Factory Mode”, please change to “User Mode” Pressurize time exceed setting time, pressurize fail or no fog E1 Pressure Err fluid. Fill tank and restart. E2 Temp. Sensor Temperature sensor fault (disconnect or damage) E3 Ptemp Over Machine chassis over temp.
- Page 7 Default Options Range Explanation Set DMX Address 1~501 Set DMX address Red/Green/Blue/Pink/Purpl LED color set when manual Color Optional e/Orange/Yellow/Skyblue/ firing White /Rand/OFF LED delay after smoke output LED Delay 0-3s 0.5s stop Channel Mode 1 / 11/ 14 Channel mode switch Set Safety Addr.
- Page 8 DMX Control Δ There are three DMX channel mode for SONICBOOM ® ReCO , single channel mode, 11 channel mode and 12 channel professional mode switchable. 1CH: Single channel mode Fog output and LED color controlled in the same channel. DMX value Function FOG OFF...
- Page 9 For upside-down installation, please place the machine in sideway first, interchange the top fluid tank lid and the bottom fluid tank lid. For safety, hanging installation should install safety rope. The bracket and clamps are optional parts, if you need please contact SHOWVEN sales to order. 2. Fill the machine Fill the fluid tank with fog fluid.
- Page 10 Please empty the fluid tank and wash the pipe system with distilled water if not use the machine for a long period of time. Maintenance Δ 1. Use SHOWVEN ® original fog fluid FX-S or FX-M. 2. Check the filter in fluid tank before each show, clean or replace it when it is necessary.
- Page 11 Please don't repair machine without factory permission Below situations NOT included in warranty service: ® Damage caused by use other type of fog fluid which is not SHOWVEN FX-S or FX-M. Damage caused by improper transportation, usage, management, and maintenance, or damage caused by human factors;...
- Page 12 Showven Technologies Co., Ltd. Tel: +86-731-83833068 Web: www.showven.cn E-mail: info@showven.cn Add: No.1 Tengda Road, Liuyang Economic & Technical Development Zone, Changsha, Hunan, 410300, P.R.China...
