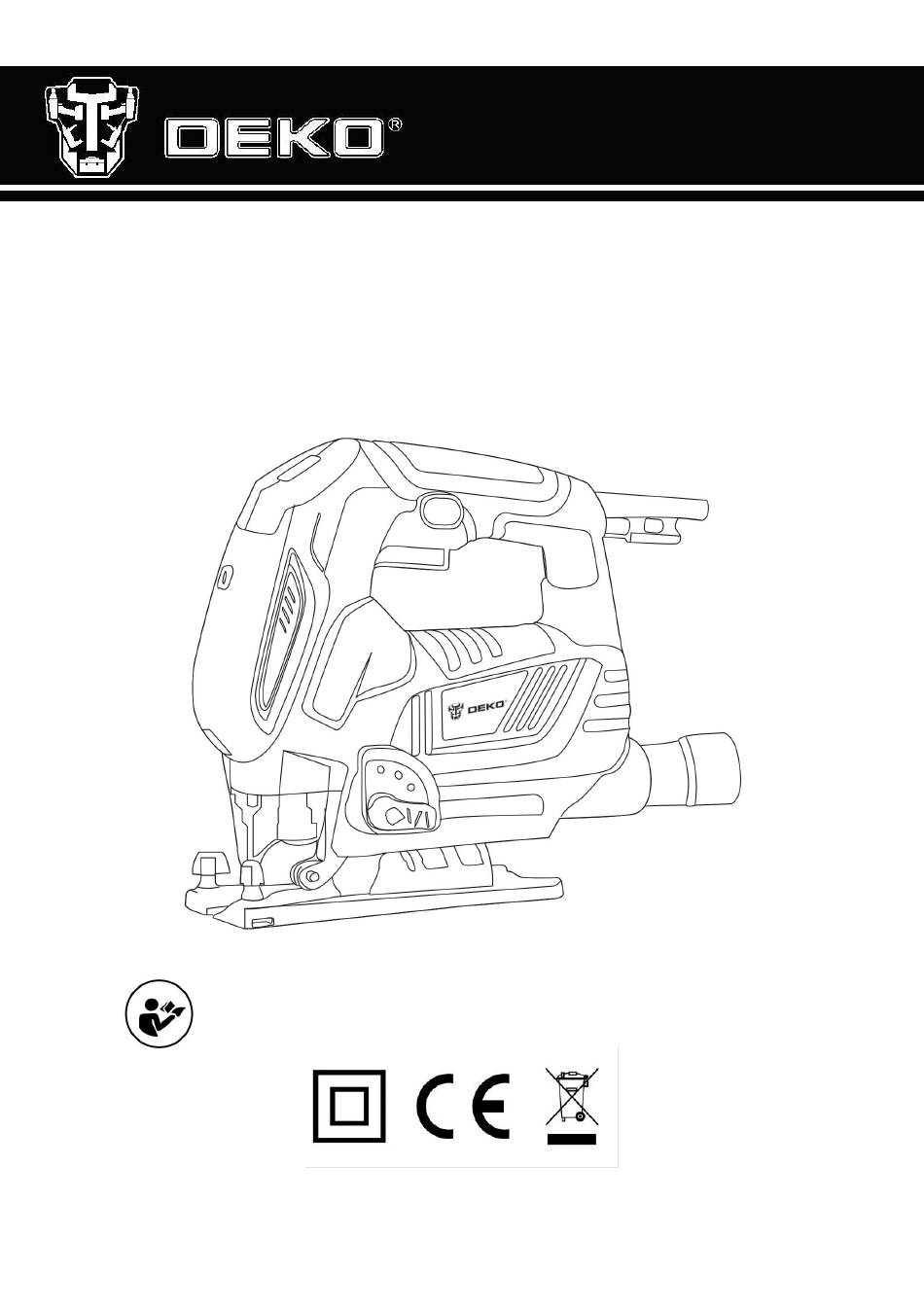

INSTRUCTION MANUAL

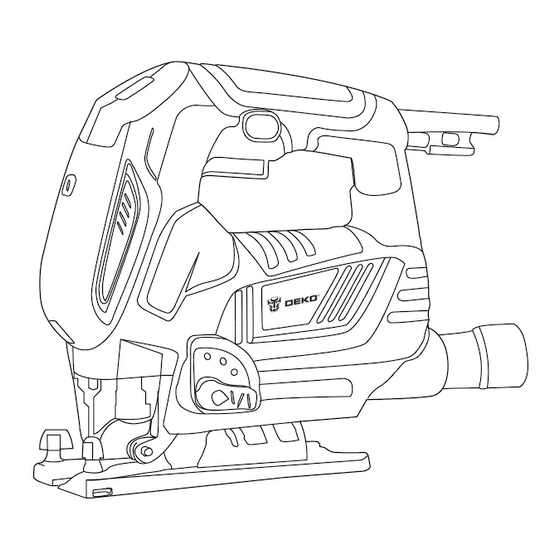

JIG SAW
MODEL NO.:
DKJS65Z5F
See page 1
⚠
IMPORTANT: Read this instruction manual before operating this product.
Keep the instruction manual for future reference.
⚠ IMPORTANT: Lisez ce manuel d'instructions avant d'utiliser ce produit.
Conservez le manuel d'instructions pour toute référence ultérieure.
DEKO TOOLS CO., LIMITED
www.dekotools.com Made in China/Fabriqué en Chine
V2112

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DKJS65Z5F and is the answer not in the manual?

Questions and answers

Related Manuals for DeKo DKJS65Z5F

Summary of Contents for DeKo DKJS65Z5F

  • Page 1 IMPORTANT: Read this instruction manual before operating this product. Keep the instruction manual for future reference. ⚠ IMPORTANT: Lisez ce manuel d'instructions avant d'utiliser ce produit. Conservez le manuel d'instructions pour toute référence ultérieure. DEKO TOOLS CO., LIMITED www.dekotools.com Made in China/Fabriqué en Chine...

  • Page 2: General Power Tool Safety Warnings

    General Power Tool Safety Warnings ⚠ WARNING: Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool"...

  • Page 3: Special Safety Instructions For Jig Saws

    h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations. 5) Service a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

  • Page 4: Symbol Explanation

    e) DO NOT direct the beam onto reflective surfaces. f) Always switch off when not in use and do not leave unattended. g) Remove the batteries before storing the circular saw away. This laser product has no serviceable parts. Do not attempt to disassemble or repair. Symbol Explanation In this manual and/or on the machine the following symbols are used: Denotes risk of personal injury or damage to the tool.

  • Page 5: Technical Data

    5 Laser aperture 6 Dust shroud 7 Quick release blade clamp 8 Lock knob for edge guide 9 Base plate 10 Roller 11 Orbit selector lever Technical data Rated Voltage 230V Frequency 50Hz Rated Input Power 650W No-Load Speed 0-3000/min Stroke Length 18mm Max.

  • Page 6: Cutting Operation

    Workpiece to be cut Number on adjusting dial Wood 5-MAX Mild steel 3-MAX Stainless steel Aluminum 3-MAX Plastics Selecting the cutting action This machine can be operated with an orbital or a straight line cutting action. To change the cutting action, just turn the lever (11) to the desired cutting action position.

  • Page 7: Cleaning And Maintenance

    Always use a suitable saw blade and coolant (cutting oil) when cutting metal. Failure to do so will cause significant blade wear. The underside of the workpiece can be greased instead of using coolant. Anti-splintering device For splinter-free cuts, the anti-splintering device can be used. Fit it into the base from below. Guide rule (optional accessory) When cutting widths of under 150 mm repeatedly, use of the guide rule (rip fence) will assure fast, clean, straight cuts.
