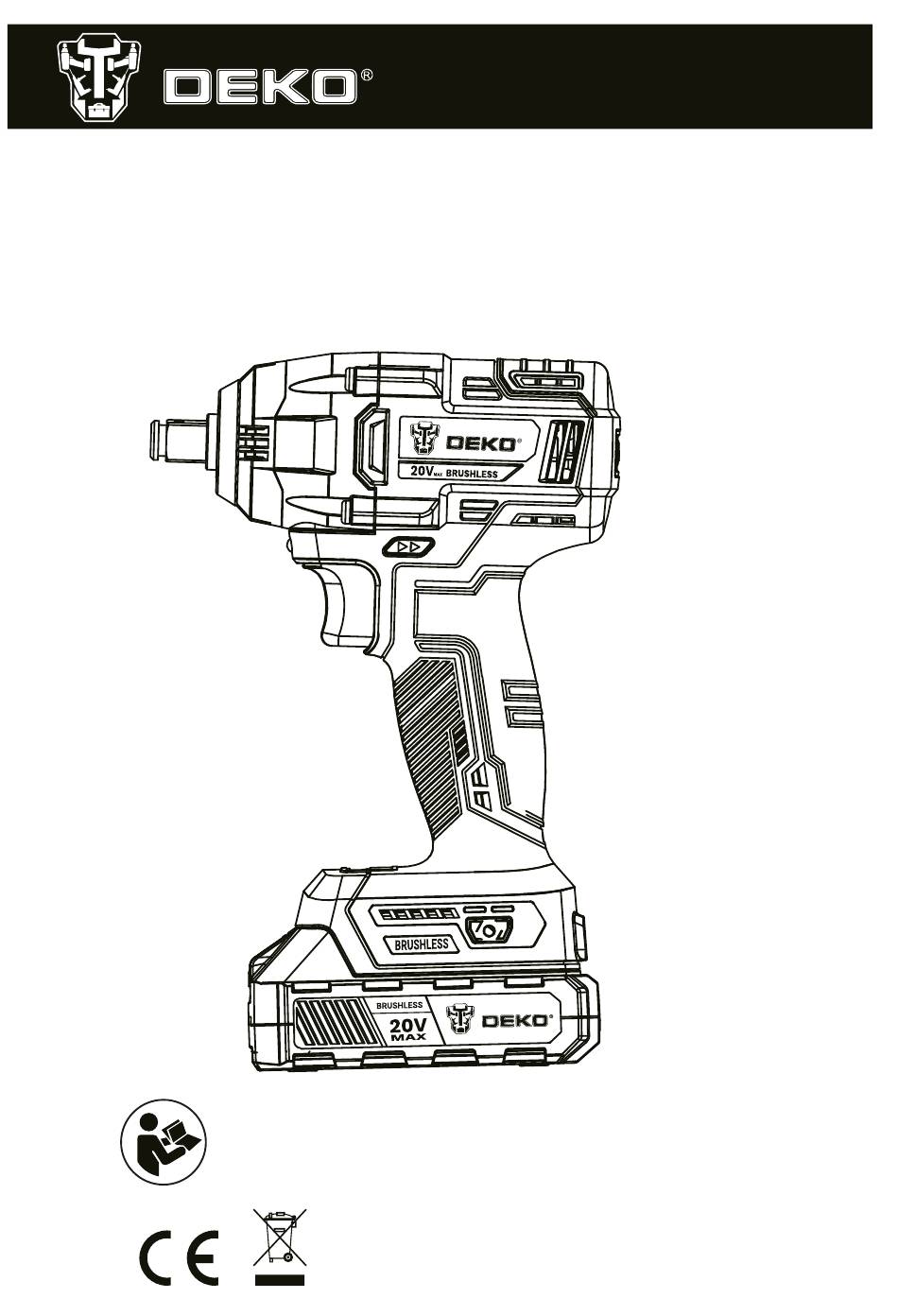

INSTRUCTION MANUAL
CORDLESS IMPACT WRENCH
Model No.: DKBW20XL01
IMPORTANT:
Read this instruction manual before operating this product.
Keep the instruction manual for future reference.
DEKO TOOLS CO., LIMITED
www.dekotools.com
Made in China

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DKBW20XL01 and is the answer not in the manual?

Questions and answers

Related Manuals for DeKo DKBW20XL01

Summary of Contents for DeKo DKBW20XL01

  • Page 1 INSTRUCTION MANUAL CORDLESS IMPACT WRENCH Model No.: DKBW20XL01 IMPORTANT: Read this instruction manual before operating this product. Keep the instruction manual for future reference. DEKO TOOLS CO., LIMITED www.dekotools.com Made in China...

  • Page 2: General Power Tool Safety Warnings

    General Power Tool Safety Warnings WARNING: WARNING: Read all safety warnings, instructions, illustra- tions and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool"...

  • Page 3: Personal Safety

    e) When operating a power tool outdoors, use an extension cord suit- able for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.
  • Page 4 Use of dust collection can reduce dust-related hazards. h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second. 4) Power tool use and care a) Do not force the power tool.
  • Page 5 h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations. 5) Battery tool use and care. a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
  • Page 6 Specific Safety Rules For Impact Wrenches 1) Before any work on the machine (e.G., Maintenance, tool change, etc.) as well as during transport and storage, set the rotational direction switch (forward/reverse switch ) to the center position. Unintentional actuation of the on/off trigger can lead to injuries. 2) Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory or fastener may contact hidden wiring.
  • Page 7 Keep the battery away from the fire. Keep the battery away from moisture or water. Charging temperature do not exceed 40°C MAX.40 Production Specification Model No. DKBW20XL01 DC 20V Rated voltage Anvil size 13mm (1/2”） No load speed 0-1000/1800/2450/min (RPM)

  • Page 8: Parts Description

    Parts Description 1. Anvil (1/2",13mm) 2. LED worklight 3. Forward/reverse switch 4. Speed on/off control trigger 5. Handle 6. Mode indicator 7. Function switch 8. Battery pack release button 9. Battery pack 10. Screw 11. Belt hook 12. Charing input port. 13.

  • Page 9: Intended Use

    Intended Use This impact wrench is designed for loosening/tightening bolts and nuts. Forward/Reverse Switch & Function Mode This wrench features 3 modes/speeds to tighten bolts and 2 modes to loosen bolts. Each mode stands for different speeds and forces. Users shall choose the appropriate mode to fit differ- ent applications WARNING: Use only sockets and other accessories specifically designed for use on impact wrenches and drivers.
  • Page 10 If the mode indicator (6) is off, there is no self-stop function. 3. If the self-stop function is selected, the impact wrench will stop immediately when it is stalled while unscrewing a bolt or nut. This will stop the nuts from dropping off and save the battery's power. Please refer to the following table for the speed and force under each mode: No load speed...

  • Page 11: Led Worklight

    Variable Speed Control Trigger To turn the tool on, squeeze the speed control trigger (4). To turn the tool off, release the trigger switch. The chuck will stop as soon as the trigger switch is fully released. NOTE: Continuous use in variable speed range is not recommend- ed.

  • Page 12: Electric Brake

    0°C-40°C(50°F-104°F). A long battery service life is achieved in this manner. Observe the notes for disposal. Use only original DEKO battery in conjunction with your DEKO power tool. This measure alone protects the battery against dangerous overload. When using other batteries, e.g.imitations, reconditioned batteries, or other brands, there is danger of injury as well as property damage through exploding batteries.

  • Page 13: Maintenance And Cleaning

    For safe and proper working, always keep the machine and ventilation slots clean. To ensure product SAFETY and RELIABILITY, repairs and any other maintenance or adjustment should be performed by a qualified repair person, always using DEKO replacement parts. Storage Thoroughly clean the impact wrench and its accessories before storage.
