Summary of Contents for Kohler K-7374

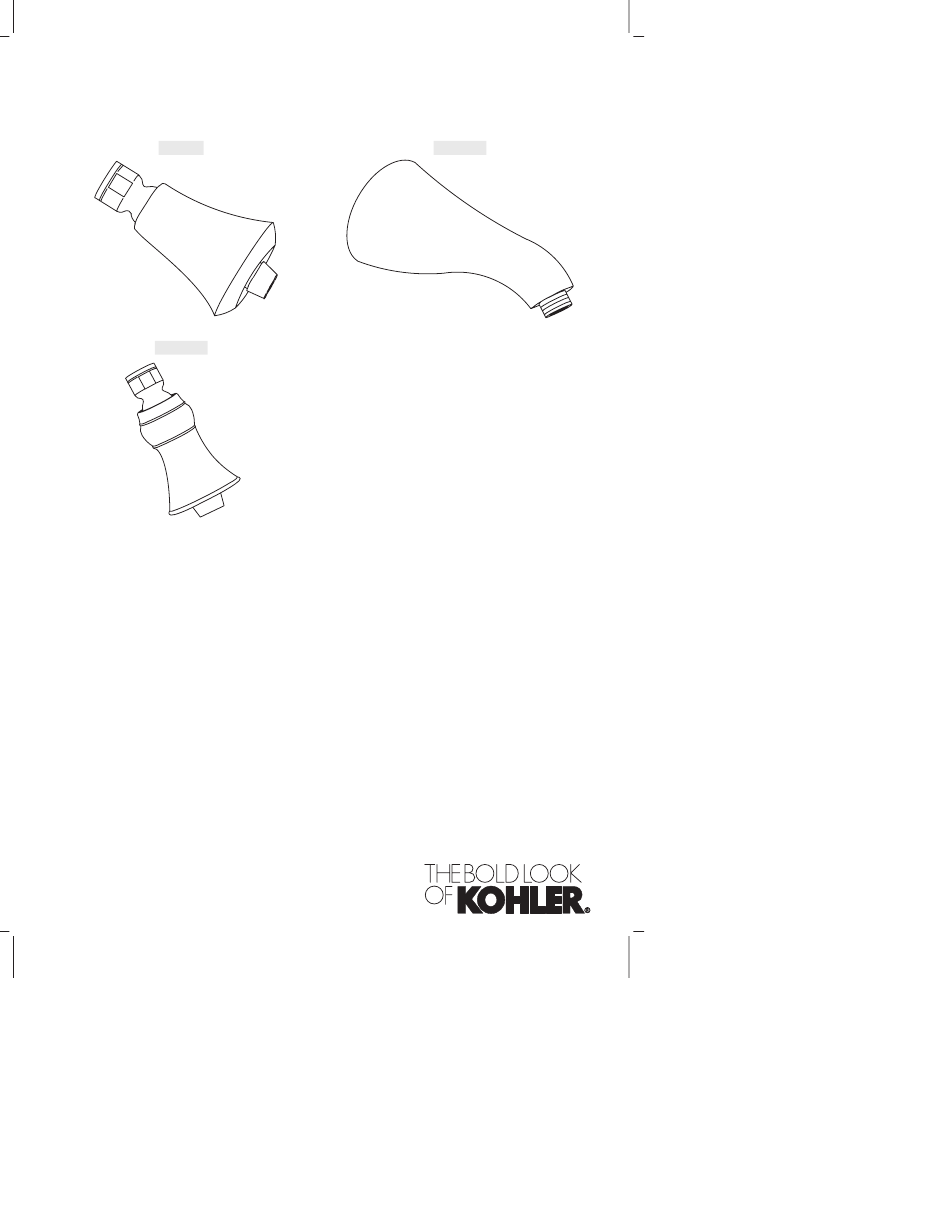

  • Page 1 Installation Guide Showerhead K-7374 K-16133 K-16134 M product numbers are for Mexico (i.e. K-12345M) Los números de productos seguidos de M corresponden a México (Ej. K-12345M) Français, page“ Français-1” Español, página“ Español-1” 113280-2-AB...
  • Page 2: Tools And Materials

    Before You Begin Observe all local plumbing and building codes. Shut off the main water supply. Kohler Co. reserves the right to make revisions in the design of products without notice, as specified in the Price Book. 113280-2-AB Kohler Co.
  • Page 3 Use thread sealant on all threaded connections. Temporarily install 1/2″ nipples to the bath and shower elbows, extending at least 2″ (5.1 cm) beyond the finished wall. Turn on the water supply and check for leaks. Complete the finished wall. Kohler Co. 113280-2-AB...
  • Page 4 Carefully tighten with a clean strap wrench. Remove all excess putty. With the showerhead off, flush out the system. Apply thread sealant tape to the shower arm, and thread the showerhead to the shower arm. 113280-2-AB Kohler Co.
  • Page 5: Guide D'installation

    Respecter tous les codes de plomberie et de bâtiment locaux. Couper l’alimentation d’eau principale. Kohler Co. se réserve le droit d’apporter toutes modifications sur le design des produits et ceci sans préavis, tel que spécifié dans le catalogue des prix.
  • Page 6 Installer de manière temporaire des mamelons 1/2″ aux coudes de baignoire et de douche à au moins [2″ (5,1cm)] au-delà du mur fini. Ouvrir l’alimentation d’eau et vérifier s’il y a des fuites. Compléter le mur fini. 113280-2-AB Français-2 Kohler Co.
  • Page 7 Serrer doucement à l’aide d’une clé à sangle propre. Retirer tout excédant de mastic. Avec la pomme de douche fermée, purger le système. Appliquer du ruban d’étanchéité sur le bras de douche et visser la pomme de douche sur le bras. Kohler Co. Français-3 113280-2-AB...
  • Page 8: Guía De Instalación

    Cumpla con todos los códigos locales de plomería y de construcción. Cierre el suministro principal de agua. La empresa Kohler se reserva el derecho de modificar el diseño de los productos sin aviso, tal como se especifica en la lista de precios.
  • Page 9 Instale niples de 1/2″ provisionalmente en los codos de la bañera y la ducha para que sobresalgan 2″ (5,1 cm) como mínimo de la pared acabada. Abra los suministros de agua y verifique que no haya fugas. Termine la pared acabada. Kohler Co. Español-2 113280-2-AB...
  • Page 10 Elimine el exceso de masilla de plomería. Con la cabeza de ducha desmontada, haga circular agua por el sistema. Aplique cinta selladora de roscas en el brazo de ducha, y enrosque la cabeza en el brazo de ducha. 113280-2-AB Español-3 Kohler Co.
  • Page 11 113280-2-...
  • Page 12 USA: 1-800-4-KOHLER Canada: 1-800-964-5590 México: 001-877-680-1310 kohler.com ©2004 Kohler Co. 113280-2-AB...
