All LED ADRCV12100TD Installation Manual & User Manual

INSTALLATION GUIDE & USER MANUAL
ADRCV12100TD
ENSURE POWER SUPPLY IS OFF WHEN HANDLING ANY ELECTRICAL EQUIPMENT.
• This product may need to be installed by a qualified electrical installer.
• Please read this guide in its entirety to fully understand the products before attempting any install.
• All electrical work should be completed in accordance with the latest IET regulations, and/or any other relevant rules,
regulations or laws of the country in which it is being installed.
• The item must be installed in isolation from any insulating material and is adequately ventilated to prevent premature
failure.
• Ensure power supply is isolated prior to installation, maintenance or performing any other form of electrical work.
• The company MUST be contacted immediately for advice or swift resolution of any matters concerning any of ALL
LED's products.
Technical Specifications
Product Code
Operating Voltage
Operating Current (A max)
Max Output Power
Output Current (Max)
Output Voltage (Max)
Power Factor
Efficiency %
No Load Power (W)
Class
Body Material
Frame Colour
Switching Cycles
Ingress Protection
Ambient Operating Temperature (°C)
Input Frequency (Hz)
Guarantee
Dimmable
Dimming Mode (Trailing Or Leading)
Output Type
Lifetime
Start Up Time
Inrush Current A pk (TH & ms)
!
PLEASE READ
BEFORE USE!
ADRCV12100TD
220-240V AC
0.489
100W
8.3A
12V DC
0.95
89%
<0.5W
II
Polycarbonate
White
100,000
IP20
-20°C ~ +45°C
50-60Hz
5 Years
Yes
Trailing & Leading
Constant Voltage
50,000 Hrs
<0.5s
20 (th=100μs)
Installation Instructions
1. We recommend checking the products for suitability prior to installation.
2. Turn off power supply at source to avoid any risk of electric shock.
3. Locate where the LED driver is to be installed.
4. Affix the LED driver to the surface / area using the appropriate method according the substrate of the base material.
5. Connect the DC output side of the LED driver to the luminaire using the diagram below for reference purposes.
Ensure the correct polarity.
6. Connect the AC input of the LED driver to the relevant electrical circuit.
7. Double check the connections and the overall installation. Turn the power supply on and check the item is
functioning as it should.
8. Turn the power supply on and check the item is functioning as it should.
Notes
• Should you encounter any difficulties, please refer to the troubleshooting guide on the next page.
• Should you encounter any further difficulties with this product, please contact the ALL LED technical team.
• Should this product cease working, a replacement drive unit will be dispatched to try to solve the issue.
• Do not hold this product by the trailing lead, it may damage the integrity of the product.
• THIS UNIT MAY HOLD SOME RESIDUAL DISCHARGE, PLEASE LEAVE DISCONNECTED AT MAINS FOR A
MINIMUM OF 24 HOURS BEFORE HANDLING ANY ELECTRICAL COMPONENTS ON THIS ITEM.
• This item is CONSTANT VOLTAGE and requires PARALLEL wiring on the DC side.

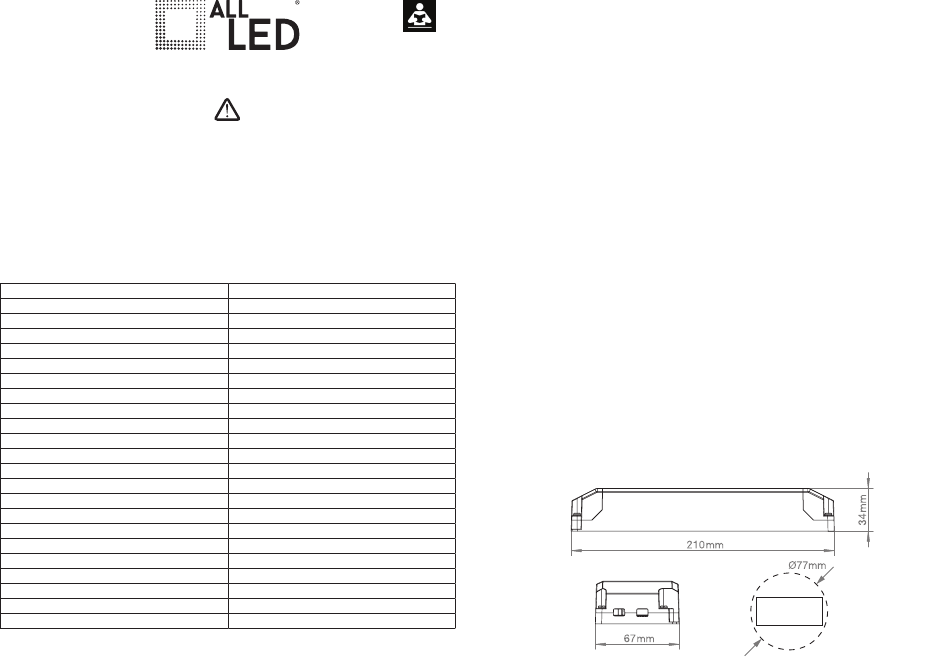

Dimensions
