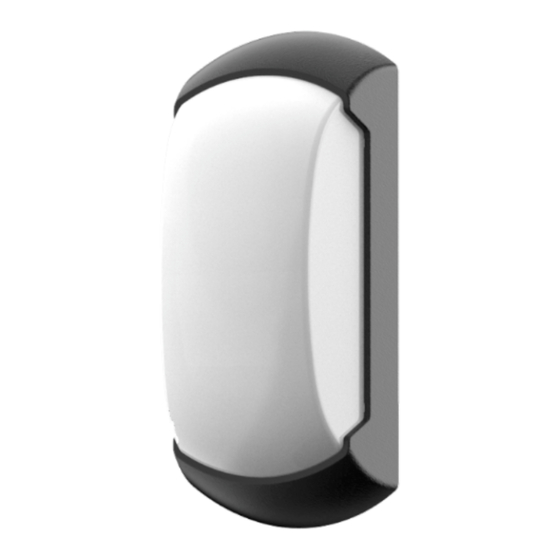

All LED ABHW012/CCT Installation Manual

Safety
• Do not cover the ground contact.
• Do not cover the luminaire, hang or fasten anything from it.
• Do not operate if any visible damage can be seen to the product.
• Do not operate if any water ingress has occurred.
• Do not operate if any smoke, steam or crackling noises can be heard from the luminaire.
• Do not operate if any signs of overheating are recognised.
• Avoid installation in any areas where there is a risk of strong mechanical loads.
• Do not place any material over the lens or LED diode/chip.
• Do not insert objects into the luminaire.
• Do not clean using any solvent based abrasive or aggressive product.
• Do not pull any cables connected to the product.
• Do not direct the luminaire into a persons eyes, as this unit may have an intense light output, which if
incorrectly used may cause eye damage.
• Light engines/LED'S and other light sources may heat up, please take care when handling the
products.
• The manufacturer will not be deemed liable or held responsible for any damages caused by faults or
manufacturing defects that may be present in any of its products or the misuse or incorrect installation
of this device. Please refer to our trouble shooting guide for further information.
• The manufacturer will not be held liable for any death(s) or injuries caused by misuse or poor installation
or any unreported faults of this product version or versions thereof.
• LED's are sensitive to electrostatic discharge. Do not touch the surface of the LED module.
• Do not connect to a temporary electricity supply, this may damage the electronics.
• Light fittings with an integrated emergency option are with a separate installation and wiring leaflet.
Please refer to this manual for further details. If the manual is unavailable please contact an ALL LED
representative for assistance.
• It is strongly recommended that a Residual-Current Device (RCD) is used with this product to minimise
the risk of electrocution.
• REPLACE DAMAGED PRODUCT IMMEDIATELY.
• Keep away from children.
Returns & Faulty Items
• If any problem is encountered during or after installation, please call ALL LED technical department to
get the problem resolved ASAP.
• Please do not just return the item to the outlet you purchased it from, as you are only entitled to a
replacement or refund after the unit has undergone testing and the unit has been confirmed as having a
manufacturing defect/fault. Your statutory rights are not affected.
• The manufacturer will not be deemed liable or held responsible for any damages caused by faults or
manufacturing defects that may be present in any of its products or the misuse or incorrect installation
of this device. Please refer to our trouble shooting guide for further information.
• All installations must be carried out in accordance with this installation guide and user manual.
• All goods are supplied under the terms and conditions of ALL LED LTD, a copy of which may be
obtained upon written request.
Environmental Protection
Waste electrical products
should not be disposed of
with household waste. Please
recycle where facilities exist.
Check with your Local Authority
or retailer for recycling advice
This product supplied with a limited guarantee, subject to terms and conditions.
The manufacturer will not be deemed liable or held responsible for any damages
caused by faults or manufacturing defects that may be present in any of its
products or the misuse or incorrect installation of this device.
Your statutory rights are not affected.
• This product may need to be installed by a qualified electrical installer.
• Please read this guide in its entirety to fully understand the products before attempting any install.
• All electrical work should be completed in accordance with the latest IET regulations, and/or any other
relevant rules, regulations or laws of the country in which it is being installed.
• The item must be installed in isolation from any insulating material and is adequately ventilated to
prevent premature failure.
• Ensure power supply is isolated prior to installation, maintenance or performing any other form of
electrical work.
• In the event of incorrect or improper function with specific regard to any of ALL LED's products contact
ALL LED for further advice.
SAFETY WARNING
• ENSURE THE PROTECTIVE PLASTIC PLATE LOCATED ON TOP OF THE LED'S IS NEVER REMOVED OR
TAMPERED WITH.
• IF THERE IS ANY VISIBLE DAMAGE TO THIS ITEM, PLEASE ENSURE THAT THE POWER IS SWITCHED OFF
AND REMAINS OFF.
• DO NOT TOUCH THE LED CHIPS AT ANY POINT DURING, OR AFTER INSTALLATION OF THE LUMINAIRE AS
THERE IS RISK OF ELECTRICAL SHOCK.
Technical Specifications
Product Code
Useful Luminous Flux (LM)
CCT (Kelvin)
Peak Intensity (cd)
Beam Angle (°)
SDCM
CRI
Operating Voltage (V)
Max Output Power (W)
Operating Current (A max)
Standby Power (W)
Power Factor (Pf)
Class
Body Material
Frame Colour
Switching Cycles
Ingress Protection
Ambient Operating Temperature (°)
ALL LED LTD
Input Frequency (Hz)
42 Sedgwick Road,
Guarantee
Luton, LU4 9DT
www.allledgroup.com Life Time (L70 B50)
sales@allledgroup.com
R9 Colour Rendering Index Value
Tel: +44 (0)208 841 9000
Survival Factor
Lumen Maintenance Factor
Displacement Factor
Flicker Metric (PstLM)
Stroboscopic Effect Metric (SVM)
INSTALLATION GUIDE
ABHW012/CCT
ENSURE POWER SUPPLY IS OFF WHEN HANDLING ANY ELECTRICAL EQUIPMENT.
1036
3000K
266cd
!
PLEASE READ
BEFORE USE!
ABHW012/CCT
1143 1027
4000K 6000K
291cd 261cd
117°
0.8
≥83
170-240V
12W
0.15A
≤0.5W
>0.9
II
Polycarbonate
White
15,000
IP65
-20°C ~ +40°C
50/60Hz
3 years
30,000h
11
0.9
96%
>0.9
0.217
0.016
1
