Installing the system board
CAUTION:
The information in this installation section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following images indicate the system board connectors.

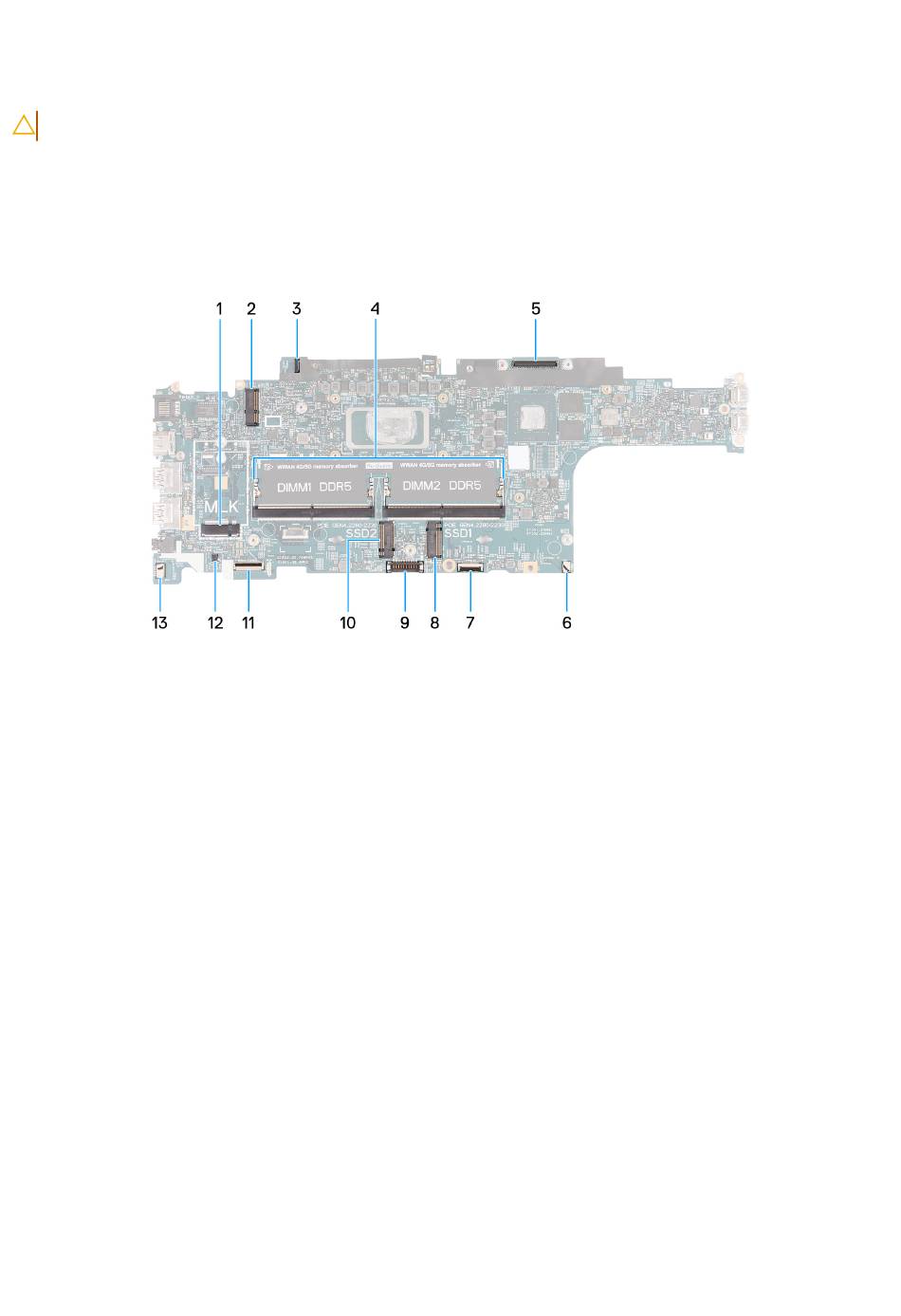

Figure 61. System board connectors
1. WWAN-card connector (WWAN1)
3. Sensor board-cable connector
5. Display-cable connector (LCD1)
7. Solid-state drive Slot 1 (SSD1)
9. Battery-cable connector (BATT1)
11. USH-cable connector
13. Speaker-cable connector (SPK1)
The following images indicate the location of the system board and provide a visual representation of the installation procedure.
96
Removing and installing Field Replaceable Units (FRUs)
2. Wireless-card connector (WLAN1)
4. Memory modules (DIMM1 and DIMM2)
6. System-fan connector (FAN1)
8. Touchpad-cable connector (TPAD1)
10. Solid-state drive Slot 2 (SSD2)
12. Coin-cell battery cable connector (RTC1)
