360
Model:
READ ALL INSTRUCTIONS CAREFULLY AND INSPECT PRODUCT FOR DAMAGE BEFORE STARTING YOUR INSTALLATION
INCLUDED IN CARTON:
TOOLS AND MATERIALS REQUIRED FOR INSTALLATION:
ROUGH-IN DIMENSIONS:
30"
INSTALLATION INSTRUCTIONS
BARRIER/FREE
SHOWER FLOOR
1
8
2 "
Deck Screws 3/4" long minimum
OR
Roofing Nail 1" long
60"
E.L. Mustee & Sons, Inc.
Instruction
PART BAG
Sheet
PN 700.601
4"
15"
C L
7
8 "
3"
5431 West 164th St.
Brook Park, OH 44142
Phone: 216.267.3100
Fax: 216.267.9997
Email: info@mustee.com
Web: www.mustee.com
U P
C
R
Advertisement
Related Manuals for Mustee 360
Summary of Contents for Mustee 360

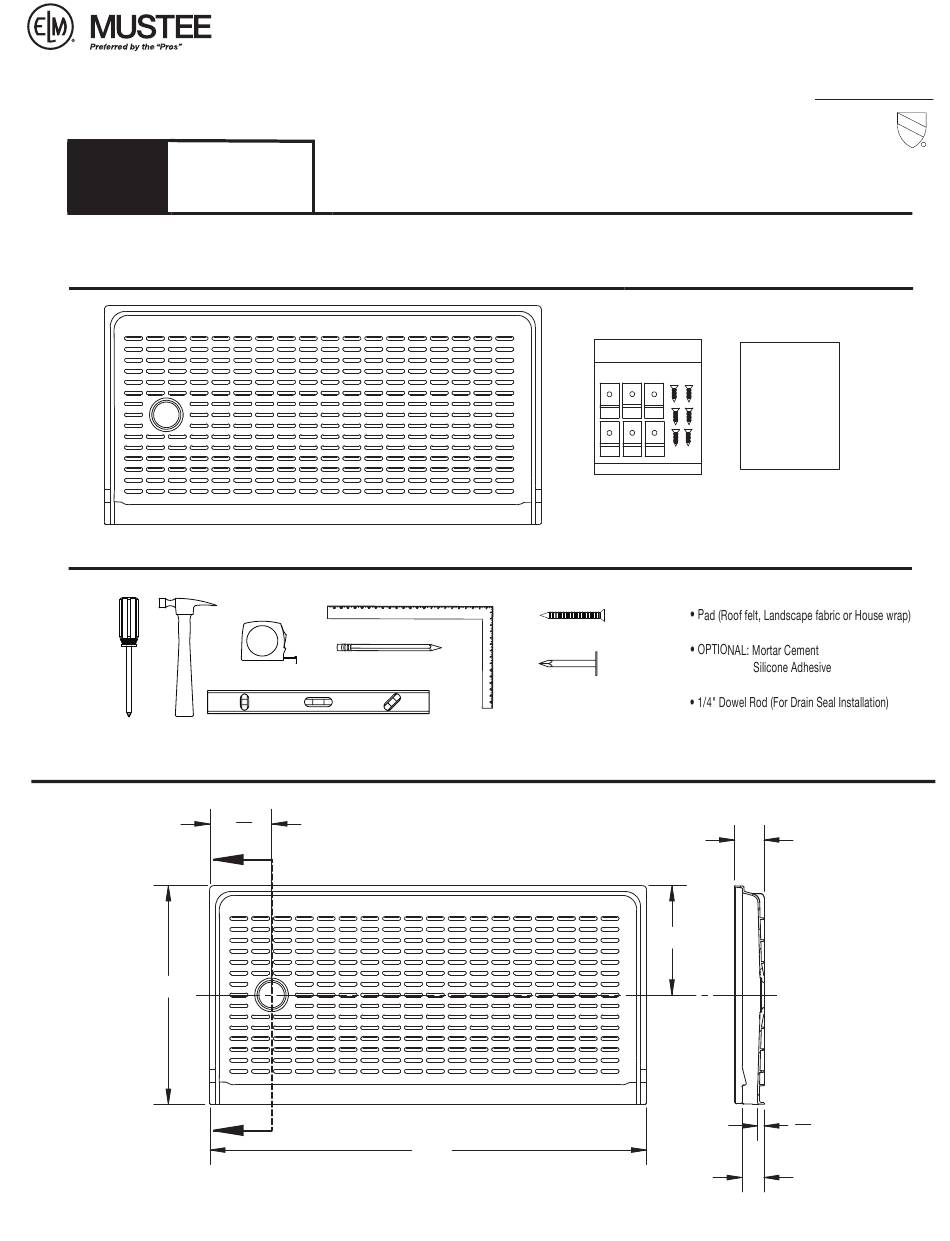

- Page 1 E.L. Mustee & Sons, Inc. 5431 West 164th St. INSTALLATION INSTRUCTIONS Brook Park, OH 44142 Phone: 216.267.3100 Fax: 216.267.9997 Email: info@mustee.com Web: www.mustee.com BARRIER/FREE SHOWER FLOOR Model: READ ALL INSTRUCTIONS CAREFULLY AND INSPECT PRODUCT FOR DAMAGE BEFORE STARTING YOUR INSTALLATION...
-
Page 2: Drain Options
DRAIN OPTIONS: The size and style of the drain must be determined before installation of the Shower Floor can begin. The Shower Floor has two available drain options. Drain must be assembled to Shower Floor prior to installation. OPTION 1: PN 42.317A DRAIN CONNECTION FOR 1 1/2"... - Page 3 ROUGH-IN DRAIN: PN 42.317A DRAIN ASSEMBLY CUT-OUT DIMENSIONS Drain connection requires 2" DWV pipe. Top of drain pipe must be even with top of sub-floor or slab. Slab installation requires opening to be a minimum of 2 ¼" deep. " "...
-
Page 4: Installation
PREPARATION: Before installing the Shower Floor you will need to prepare the alcove area. Plan rough plumbing requirements (drain-venting-supply lines) at this time according to local building codes. Additional bracing to support optional grab bars and or seat should be installed at this time. Refer to the accessory manufacturer’s instructions for proper installation. - Page 5 STEP 3: If Shower Floor is level, we recommend a pad If out-of-level, two methods to compensate for (NOT SUPPLIED) be placed on sub-floor before the inconsistency in the sub-floor are as follows: final Shower Floor installation to avoid noise between the Shower Floor and the sub-floor.
-
Page 6: Optional Accessories
CARE & CLEANING The surface of your MUSTEE SHOWER FLOOR may be cleaned with a mild soap solution in warm water using a soft cloth. When using s cleaner product, carefully read the label to ensure that the cleaner is safe for use on the material. Stubborn stains can be cleaned using “Soft Scrub ” by Clorox or a ®...
