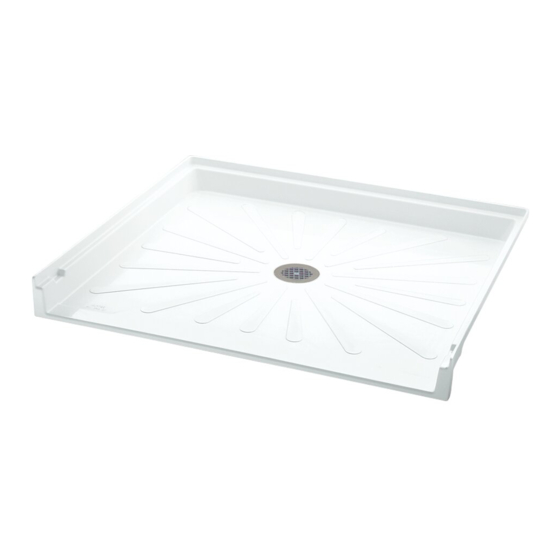

3739 TRANSFER SHOWER FLOOR
Model:
READ ALL INSTRUCTIONS CAREFULLY AND INSPECT PRODUCT FOR DAMAGE BEFORE STARTING YOUR INSTALLATION
INCLUDED IN CARTON:
TOOLS AND MATERIALS REQUIRED FOR INSTALLATION:
ACCESSORIES (ORDER SEPARATELY)
Stainless Steel Grab Bars
1½" Diameter
Part No.
390.301
390.305
390.306
390.304
34" x 18"
1¼" Diameter
Part No.
390.323
390.324
INSTALLATION INSTRUCTIONS
Size
Type
24"
Straight
18"
Straight
36"
Straight
Inside Corner
Size
Type
24"
Straight
36"
Straight
Deck Screws 3/4" long minimum
OR
Roofing Nail 1" long
Pull-Down Shower Seats
Part No.
390.401
390.402
390.403
390.404
390.409
390.410
390.413
E.L. Mustee & Sons, Inc.
5431 West 164th St.
Brook Park, OH 44142
Phone: 216.267.3100
Fax: 216.267.9997
Email: info@mustee.com
Web: www.mustee.com
Instruction
Sheet
Size
Type
26"
Right Hand
26"
Left Hand
32"
Right Hand
32"
Left Hand
26"
Straight
32"
Straight
23"
Straight
U P
C
R
Advertisement
Related Manuals for Mustee 3739
Summary of Contents for Mustee 3739

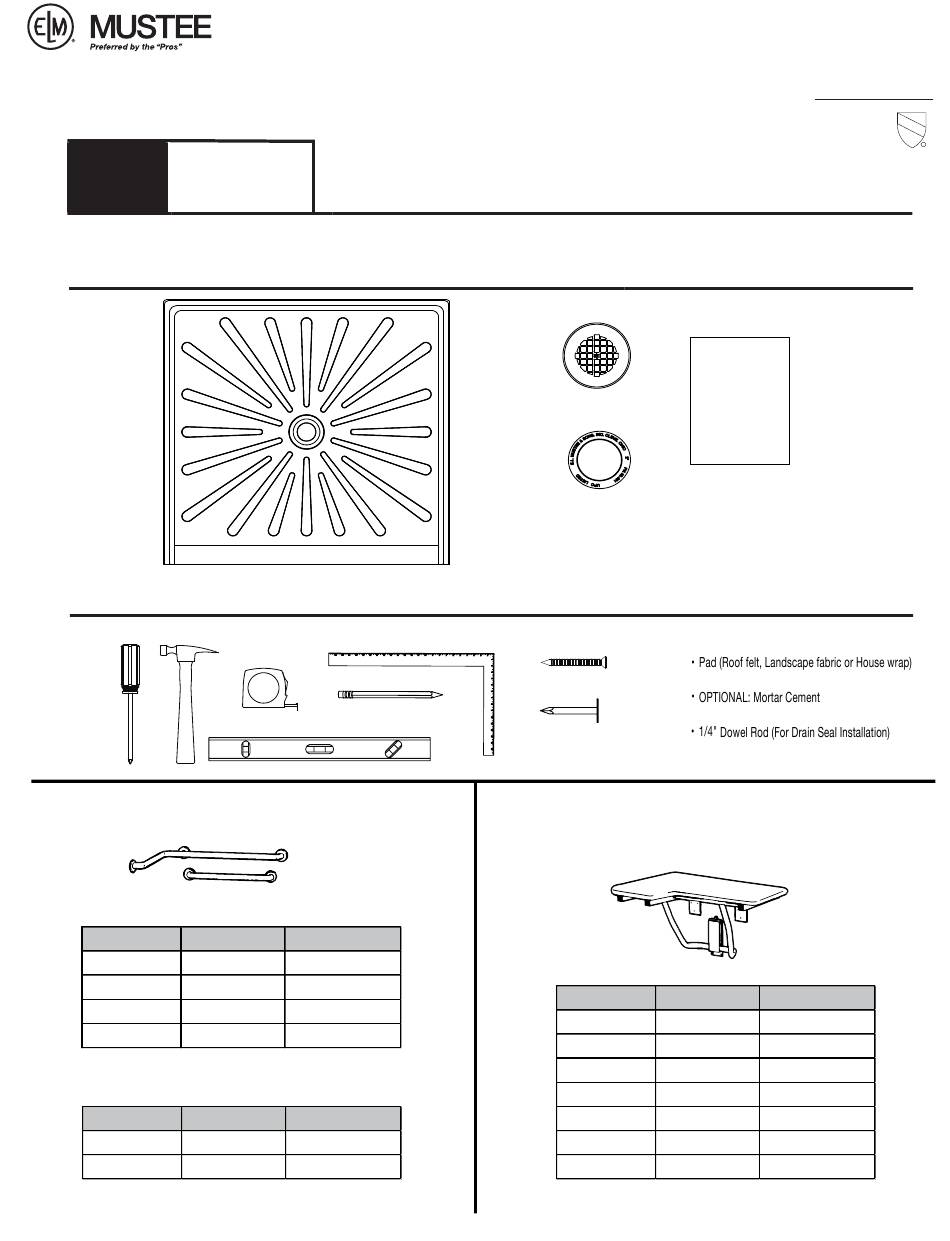

- Page 1 E.L. Mustee & Sons, Inc. 5431 West 164th St. Brook Park, OH 44142 INSTALLATION INSTRUCTIONS Phone: 216.267.3100 Fax: 216.267.9997 Email: info@mustee.com Web: www.mustee.com 3739 TRANSFER SHOWER FLOOR Model: READ ALL INSTRUCTIONS CAREFULLY AND INSPECT PRODUCT FOR DAMAGE BEFORE STARTING YOUR INSTALLATION...
-
Page 2: Rough-In Dimensions
ROUGH-IN DIMENSIONS: 6¼" 37" 18½" ½" 19½" 4" 39" ALCOVE FRAMING: 16" 11½" Ref. 19½" 16¾" 18½" 37" 6½" 6½" 39"... -
Page 3: Installation
PREPARATION: Before installing the Shower Base you will need to prepare the alcove area. Plan rough plumbing requirements (drain-venting-supply lines) at this time according to local building codes. Additional bracing to support optional grab bars and or seat should be installed at this time. Refer to the accessory manufacturer’s instructions for proper installation. - Page 4 STEP 2: Set Shower Base into alcove and check for level condition. Level should be placed on top of tile flange as shown. STEP 3: Place a level on the floor to ensure floor slope to drain. The bubble should be slightly off center.
- Page 5 STEP 4: Remove shower base from alcove. Install a felt pad onto sub-floor. Be sure pad fills the whole area of alcove. If a mortar bed is going to be used, you will notice a 20½" diameter flat circle on the bottom of the shower base around the drain area.
- Page 6 CARE & CLEANING The surface of your MUSTEE SHOWER FLOOR may be cleaned with a mild soap solution in warm water using a soft cloth. When using s cleaner product, carefully read the label to ensure that the cleaner is safe for use on the material. Stubborn stains can be cleaned using “Soft Scrub ” by Clorox or a ®...
