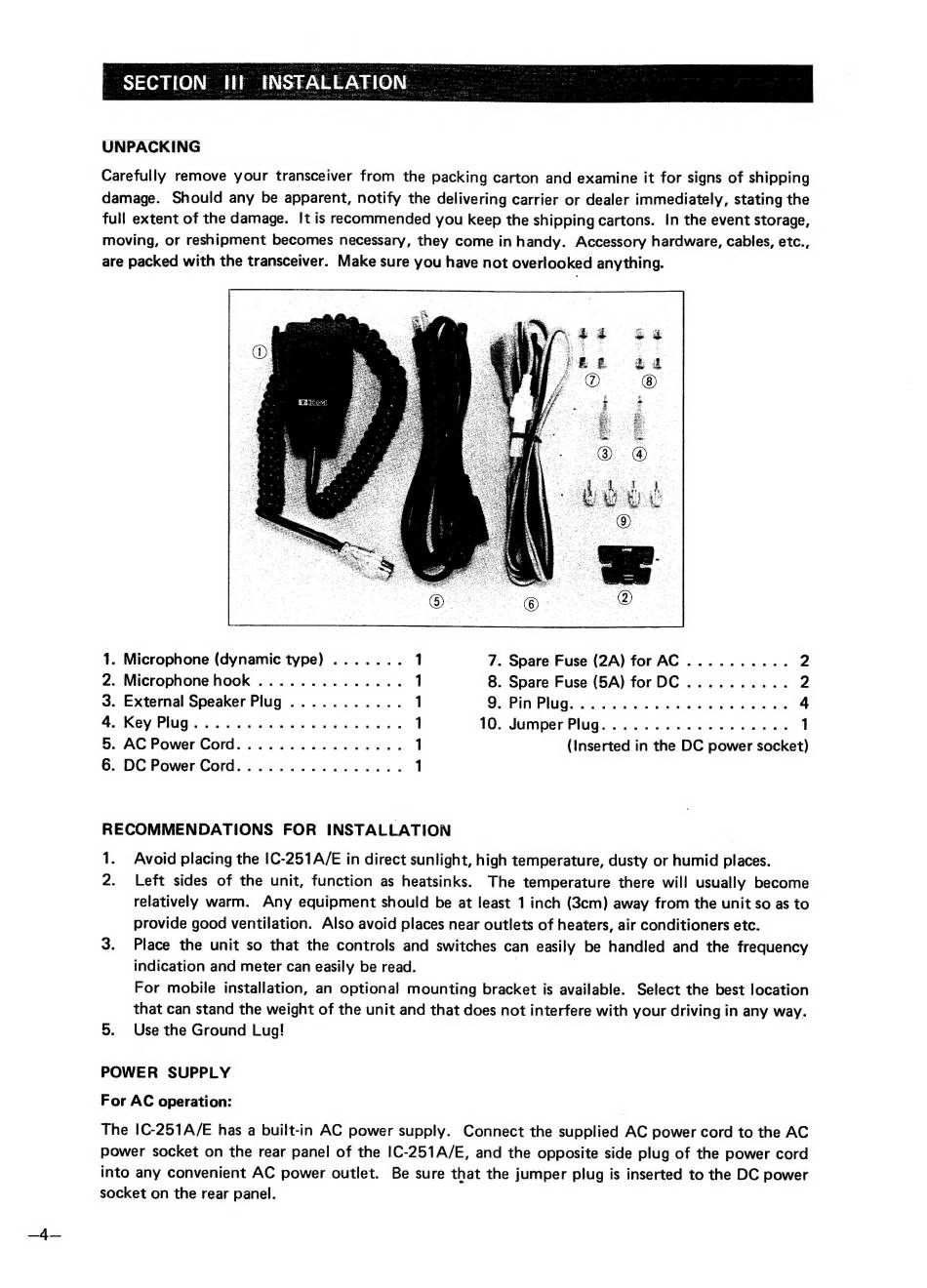

UNPACKING
Carefully remove your transceiver from the packing carton and examine it for signs of shipping
damage. Should any be apparent, notify the delivering carrier or dealer immediately, stating the
full extent of the damage. It is recommended you keep the shipping cartons. In the event storage,
moving, or reshipment becomes necessary, they come in handy. Accessory hardware, cables, etc.,
are packed with the transceiver. Make sure you have not overlooked anything.
1. Microphone (dynamic type) ....... 1 7. Spare Fuse (2A) for AC .......... 2
2. Microphone hook .............. 1 8. Spare Fuse (5A) forDC .......... 2
3. External Speaker Plug ........... 1 Oe Pin PIUG chic caw nara Bide 4 Se ew 4
4. Key PlUG s. ¢05 nn eae Se ew aka ee 1 10. Jumper Plug..........---22008- 1
5. AC Power Cord..............20- 1 (Inserted in the DC power socket)
6. DC Power Cord................ 1
RECOMMENDATIONS FOR INSTALLATION
1. Avoid placing the IC-251A/E in direct sunlight, high temperature, dusty or humid places.
2. Left sides of the unit, function as heatsinks. The temperature there will usually become
relatively warm. Any equipment should be at least 1 inch (3cm) away from the unit so as to
provide good ventilation. Also avoid places near outlets of heaters, air conditioners etc.
3. Place the unit so that the controls and switches can easily be handled and the frequency
indication and meter can easily be read. |
For mobile installation, an optional mounting bracket is available. Select the best location
that can stand the weight of the unit and that does not interfere with your driving in any way.
5. Use the Ground Lug!
POWER SUPPLY
For AC operation:
The IC-251A/E has a built-in AC power supply. Connect the supplied AC power cord to the AC
power socket on the rear panel of the 1C-251A/E, and the opposite side plug of the power cord
into any convenient AC power outlet. Be sure that the jumper plug is inserted to the DC power
socket on the rear panel.
