CHECK
C13, C14 & 09
CHECK
RED SECONDARY,..,_ _ __,
CS, C6. CRS & CR6
CHECK
C15, C16 & 010
CHECK
, RED SECONDARY, ___ .....
C7, CS, CR7 & CRS
REPLACE
JUMPER
USE OTHER
JUMPERS IN +SV
POWER LINES TO
ISOLATE PROBLEM
NO
LIFT JUMPER
BY FBS & R69
CHECK
C17, C18 & 011
REPLACE
JUMPER
NO
CHECK
'>-----GREEN SECONDARY,
C9, C10 & CR9 - CR12
LIFT JUMPER
UNDER C13
CHECK
C19, C20 & 012
CHECK
C63 & ICS

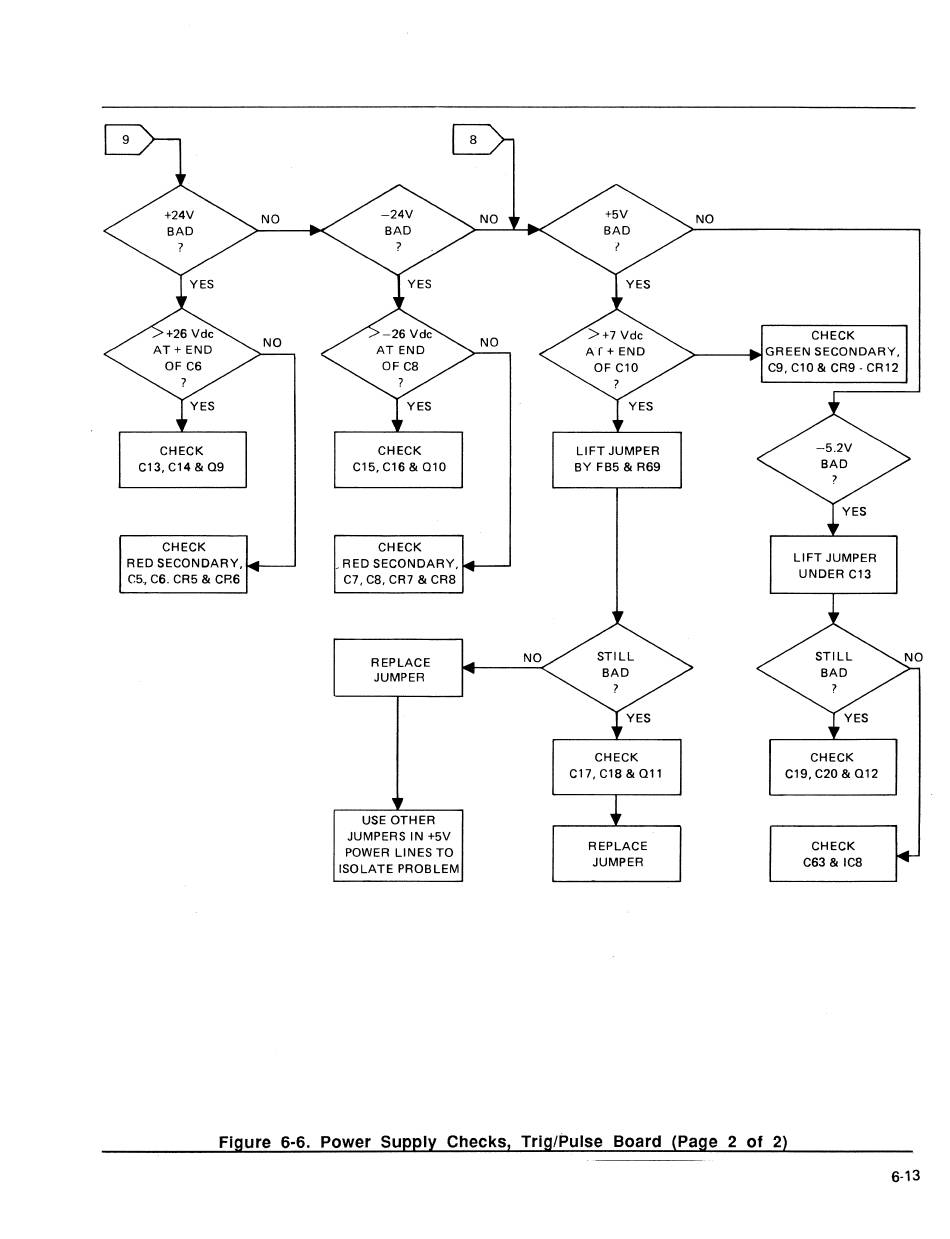

Figure 6·6. Power Supply Checks, Trig/Pulse Board (Page 2 of 2)
