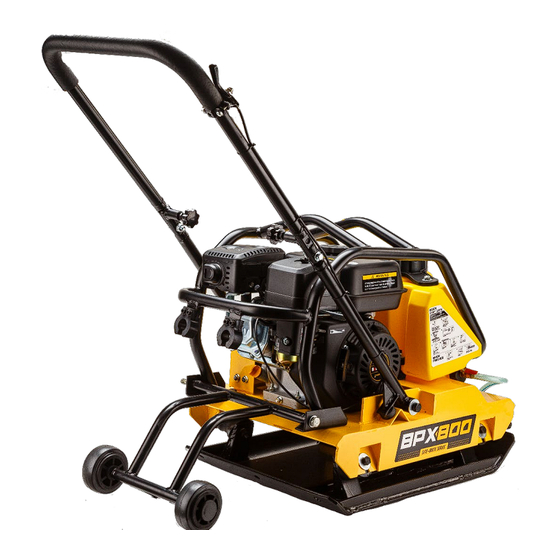

Plate compactor

Advertisement

Quick Links

Plate Compactor
User Manual
[Revision 4.0 October 2018]
READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND
MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in
appearance, assembly, inclusions, specifications, description and packaging.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CONCOMBMRA8C0 and is the answer not in the manual?

Questions and answers

Summary of Contents for Baumr-AG CONCOMBMRA8C0

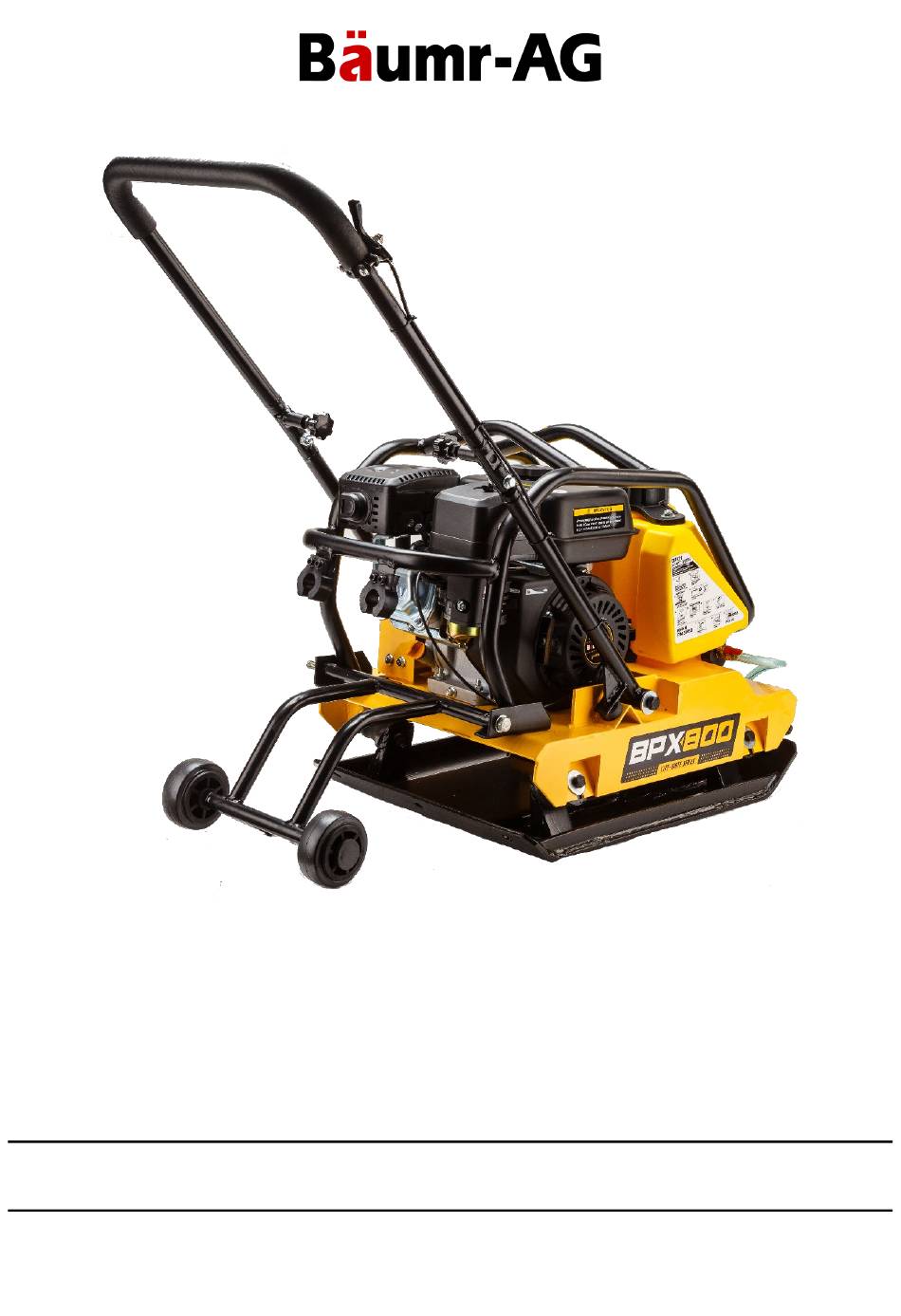

  • Page 1 Plate Compactor User Manual [Revision 4.0 October 2018] READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance, assembly, inclusions, specifications, description and packaging.
  • Page 2: Table Of Contents

    Plate Compactor Table of Contents Safety................................1 Operation ................................. 3 Transporting & Handling ............................3 Tips & Pointers ................................. 4 Checks Before Usage............................... 4 Application ................................5 Quick Start Guide ..............................6 When Finished: ................................ 7 Maintenance ..............................7 Spark Plug ................................7 Air Filter ..................................
  • Page 3: Safety

    DO NOT leave the machine in operation while it is unattended. • ENSURE that the walls of a trench are stable and will not collapse due to the action of the vibration, prior to commencing compaction. E&OE © 2018 Baumr-AG...
  • Page 4 Vibration hazard can cause permanent injury Slip/Trip/Fall is a major cause of serious injury or death. • Beware of uneven or slippery work surfaces. • Exercise care when working in the vicinity of unprotected holes elevated platforms or excavations. E&OE © 2018 Baumr-AG...
  • Page 5: Operation

    Always keep in the upright positions when running and in use (fig 2). • Carefully release the wheels from the rubber clamps and lift up the plate compactor and fold wheels down for transporting short distances by hand (fig 3). Fig 2 Fig 3 E&OE © 2018 Baumr-AG...
  • Page 6: Tips & Pointers

    Owner’s Manual or the Maintenance section of this manual. • AIR CLEANER - Check to ensure element is in good condition and properly installed. • FUEL SUPPLY - The engines on MBW equipment require an automotive grade of clean, fresh, unleaded gasoline. E&OE © 2018 Baumr-AG...
  • Page 7: Application

    NOTICE: DO NOT operate plate on concrete or on extremely hard, dry, compacted surfaces. The plate will jump rather than vibrate and could damage both plate and engine. E&OE © 2018 Baumr-AG...
  • Page 8: Quick Start Guide

    Step 6: Turn choke on Step 3: Turn fuel lever on and choke to cold Step 7: Pull starter cord until engine starts Step 8: Adjust throttle lever as needed Step 4: Ensure throttles is on low E&OE © 2018 Baumr-AG...
  • Page 9: When Finished

    Replace the spark plug if the insulator is cracked or chipped. • Clean the spark plug electrodes with a wire brush. • Set the electrode gap (a) 0.6 – 0.7 mm • Tighten the spark plug securely. E&OE © 2018 Baumr-AG...
  • Page 10: Air Filter

    Please check oil before every use. To drain the oil, remove the drain plug with a 10mm socket. 10mm screw Be careful! Ensure there is a proper draining bowl for the old oil. Plate Compactor may need to be slightly tilted. E&OE © 2018 Baumr-AG...
  • Page 11 Check oil by removing dipstick and wiping it clean. Dip it back into it’s cavity without fully screwing it back in. LOW – Needs refilling or more added LOW-OK – Enough but will need refilling soon OK – Enough Consider replacing oil if in far right condition. E&OE © 2018 Baumr-AG...
  • Page 12 ©2018 Baumr-AG. All rights reserved. No part of this document, including descriptive content, concepts, ideas, diagrams or images may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, scanning or recording, or any information storage and retrieval system, without express permission or consent from the publisher.
