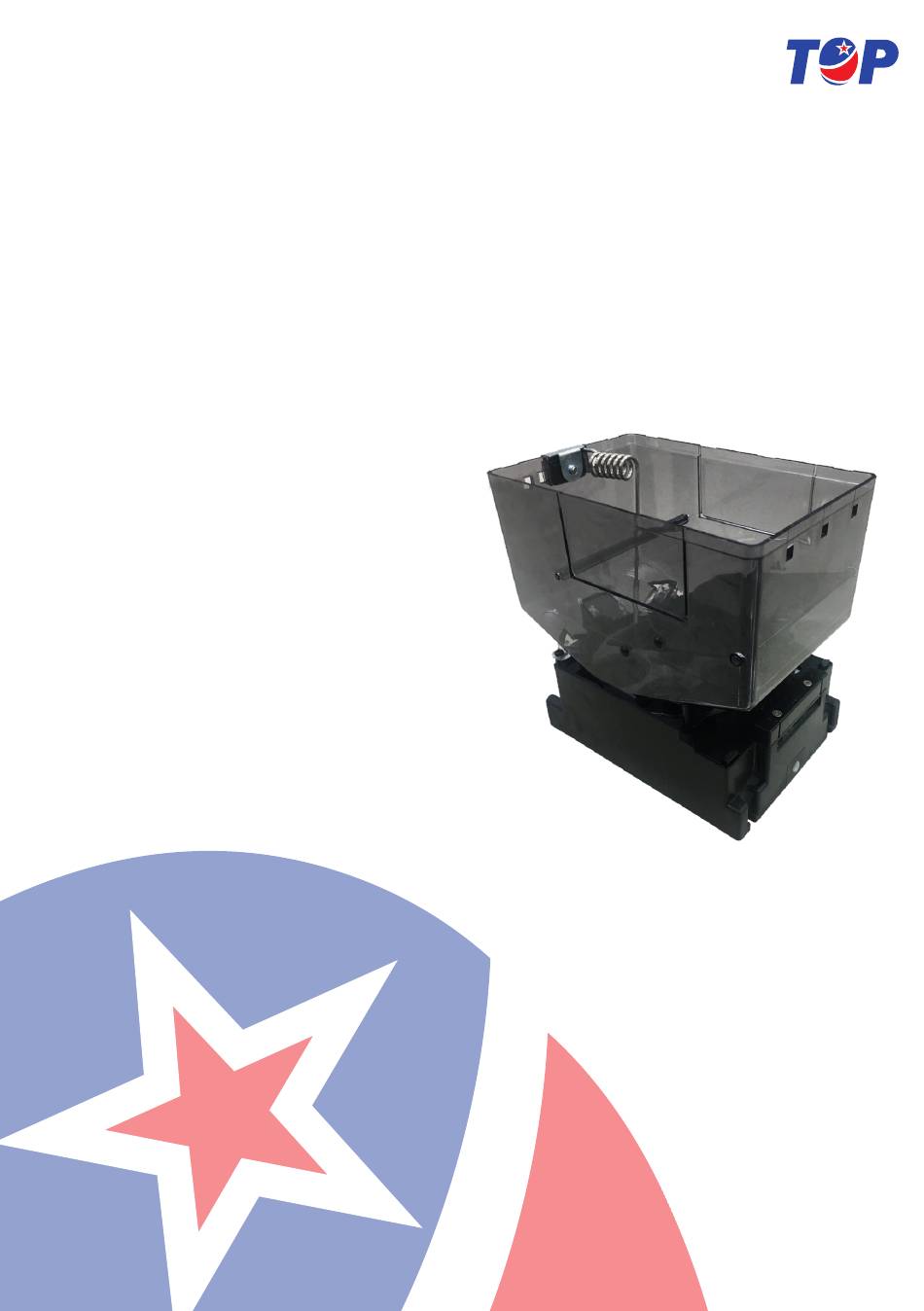

- Page 1 Mini Hopper Coin Dispenser Installation Guide Thank you for choosing TOP VME .
-
Page 3: Table Of Contents
1.Introduction..........2.Specifications..........3.Coding principle........... 4.Packing List..........5.Dimension........... 6.Installation........... 7.Maintenance..........8.Troubleshooting........... -
Page 4: Introduction
1.Introduction 1-1. Overview Users can adjust the coin dimension with different coin payout plates and coin adjustment points. The design of Mini Hopper is easy-operated, trouble-free, and high reliability.Mini hopper is a coin dispensing unit for one denomination. 1-2. Features •... -
Page 5: Specifications
Mini Hopper 2.Specifications General Dispensing Speed TMH-12xxx 5~6 coins/second TMH-24xxx 6~8 coins/second Interface Pulse / RS232 / Hopper Installation place Indoor Counting Method Dual sensors Electrical Power Source TMH-12xxx 12V DC ±5% TMH-24xxx 24V DC ±5% Power Consumption 12V DC Not loaded: 0.6W Maximum: 30W OperationEnvironment Operation Temperature: 5°C~50°C... -
Page 6: Coding Principle
Mini Hopper 3.Coding principle TMH- XX X X X ↓ ↓ ↓ ↓ ↓ Ex: TMH-125GB 1.Product number Mini Hopper 2.Voltage 12V DC 24V DC 3.Coin capacity 500 PCS 4.interface RS232 Protocol + Pulse Mode + Hopper Mode 5.Applicable Coin Size ( Diameter ) 22.5mm~28mm... -
Page 7: Packing List
Mini Hopper 4.Packing List Main Mini Hopper Accessory Harness: Refer to P.9 Mini Hopper Coin Dispensor Installation Guide 5.Dimension Unit : mm[inch] www.topvme.com... -
Page 8: Installation
Mini Hopper 6.Installation 6-1.Coin Dispensor 6-1-1.To setup Mini Hopper, follow the steps below: (1).Hopper/pulse Interface : A.Set the dip switch on the bottom of the coin dispenser according to the interface used. (Refer to 6-1-2 Dialing Function Settings) B. Squeeze the hook and remove the coin cover. - Page 9 Mini Hopper D. Put the coin into the coin box until the coin level exceeds the empty coin sensor. Empty Sensor E. Connect the wire to the side of the coin dispenser. (Refer to 6-1-3 Wire Connection) F. Power supply to the coin dispensing machine. If the LED light turns from green to green, the setting is completed.
- Page 10 (Please refer to 6-1-2. Dialing function setting) B. Connect the wire to one side of the coin dispenser. (See 6-1-3. Wire Connections) C. Download the software from the PC via the download box (G-BOX).(Mini Hopper Tool Kit) www.topvme.com...
- Page 11 Mini Hopper 6-1-2. DIP Switch Setting: For TMH-XXXGX : RS232 Interface : Pules Interface : Coin/Pulse 10/1 20/1 50/1 Hopper Interface : Please reset Mini Hopper every time after DIP switch setup. www.topvme.com...
- Page 12 Mini Hopper 6-1-3.Harness Application Download and RS232 interface connector: PIN 1 - GND PIN 5 - Reset PIN 2 - N/C PIN 6 - VCC PIN 3 - PGD PIN 7 - RX1 PIN 4 - PGC PIN 8 - TX1...
- Page 13 Mini Hopper WEL-RHP17 PIN NO COLOR PIN DEFINE PIN1 +12V/24V DC PIN2 BLACK PIN3 YELLOW CREDIT_RELAY (N.O) PIN4 BLACK CREDIT_RELAY (COM) PIN5 BLUE PAYOUT_IN PIN6 PURPLE COIN_EMPTY_O PIN7 GRAY METER (N.O) PIN8 BLACK METER (COM) PIN9 WHITE INHIBIT (N.O) PIN10...
- Page 14 Mini Hopper WEL-R7U06 PIN NO COLOR PIN DEFINE PIN1 BLUE PIN NO PIN DEFINE PIN2 PIN6 WHITE PIN3 PIN7 BLACK PIN5 PIN8 PURPLE www.topvme.com...
- Page 15 Mini Hopper 6-3. I/O Circuit Hopper & Pulse Interfce-1 METER_NO INHIBIT_NO METER_COM INHIBIT_COM Mini-Hopper Customer Side CREDIT_NO CREDIT_COM Mini-Hopper Customer Side COIN_EMPTY_O Mini-Hopper Customer Side www.topvme.com...
- Page 16 Mini Hopper Pulse mode Hopper mode (depend on coin size) (depend on coin size) (coin O/P period) (coin O/P period) (no coin output) CREDIT_NO (coin O/P period) (coin O/P period) (no coin output) METER_NO (depend on coin size) (non-inhibit) (non-inhibit)
- Page 17 Mini Hopper Hopper & Pulse Interface-2 PAYOUT_IN Hi→TR ON Lo→TR OFF Customer Side Mini-Hopper (Stop) (Stop) PAYOUT_IN (Hopper) (coin dispense period) (coin dispense period) (start to output one coin) (start to output one coin) PAYOUT_IN (Pulse) -The pulse can be issued before previous coin dispense finished.
- Page 18 Mini Hopper RS232 Interface Mini-Hopper Customer Side Hi→TR ON Lo→TR OFF Mini-Hopper Customer Side www.topvme.com...
-
Page 19: Maintenance
To ensure smooth operation of the coin dispenser, please clean the inside of the machine regularly according to the frequency of use. (Proposed period 4-6 months) Please make sure Mini Hopper turnes OFF before cleaning. To clean the internal parts: 1. Remove the coin box. -
Page 20: Troubleshooting
Wheel Flashes Status Corrective actions 1. Make sure the voltage is applied to Mini Hopper. 1. Incorrect voltage 2. Clockwise turn the wheel which is in the front of Mini 2. Coin jammed Hopper to remove the jammed coin (as and check the 3. - Page 21 Mini Hopper ♦ Coin adjustment table Coin Payout Adjustment Diameter Coin Payout Plate thickness Diameter thickness Diameter thickness Diameter Coin Payout Plate Coin Payout Adjustment thickness Diameter thickness Diameter thickness www.topvme.com...
- Page 22 Mini Hopper Diameter Coin Payout Plate Coin Payout Adjustment thickness Diameter thickness Diameter thickness Diameter thickness Diameter Coin Payout Plate Coin Payout Adjustment thickness Diameter thickness Diameter thickness www.topvme.com...
- Page 23 Top Vending Machine Electronics Co.,Ltd. NO.11, Anzhong St., Luzhu Dist., Taoyuan City338, Taiwan, (R.O.C.) Phone : +886-3-3115969．Fax : +886-3-3115970 E-mail : sales@topvme.com.tw Website : www.topvme.com...
- Page 24 Top Vending Machine Electronics Co., Ltd. www.topvme.com...
