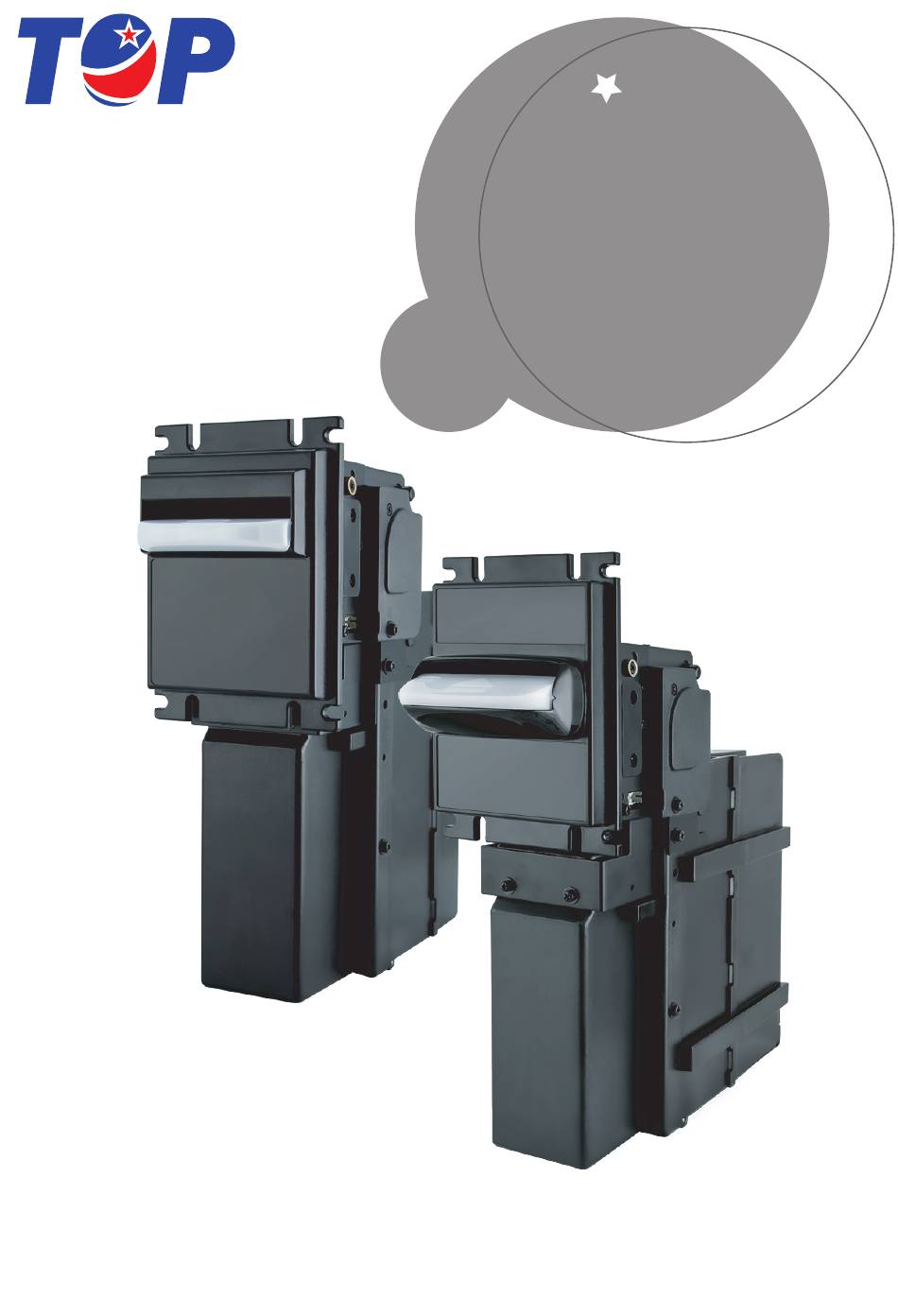

- Page 1 BRP70 series Bill Acceptors User Guide Thank y o u f o r c h oosing TOP VM E .
-
Page 3: Table Of Contents
C o n t e n t s 1. Introduction ....................1 1-1. Overview ....................1 1-2. Features ....................1 2. Specifications ....................2 2-1. General ....................2 2-2. Barcodes ....................2 2-2. Electrical ....................2 2-3. Mechanical ...................2 3. Packing List ....................3 4. Dimension ....................4 5. Installation ....................6 5-1. -
Page 4: Introduction
BRP70 1. Introduction 1-1. Overview The BRP70 series is a new generation of high security banknote and barcode receivers developed by TOPVME. Its acceptance rate of banknotes and barcodes is96% or greater. At the same time, with the Barcode System developed by TOPVME, it provide you the most... -
Page 5: Specifications
Bill Acceptors 2. Specifications 2-1. General 96% or greater Acceptance Rate (Dirty, damp, torn, or wrinkled banknotes and tickets are excluded.) Processing Time 3 seconds Interface Pulse/RS232、Pulse/ccTalk、Pulse/ID003 Installation Indoor Bill Inser tion Four way acceptable 2-2. Barcodes Barcodes Interleaved 2 of 5 Thin Line 0.5mm Thin line : Thick line 1 : 2... -
Page 6: Packing List
BRP70 3. Packing List Main BRP70 Bill Acceptors Harness : please refer to 5-1 Bezel Sticker Accessories Metal Frame (Purchase) Screw Set (Purchase) Vandal-proof plate (Purchase) -
Page 7: Dimension
Bill Acceptors 4. Dimension Unit : mm [ inch ] BRP70-P5 Upper Bezel 169.15 6.659 93 3.661 84.30 3.319 41.40 1.630 51 2.008 17.50 0.689 82.90 3.264 BRP70-P8 Upper Bezel 93 3.66 204.1 8.04 84.30 3.32 51 2.01 5.10 0.20 41.40 1.63 17.50 0.69 82.90 3.264... - Page 8 BRP70 Unit : mm [ inch ] BRP70-P5 Middle Bezel 169.25 6.663 169.25 6.663 91.99 3.622 91.99 3.622 82.80 3.260 82.80 3.260 53.28 2.098 53.28 2.098 50.60 1.992 50.60 1.992 17.50 0.689 17.50 0.689 82.90 3.264 82.90 3.264 BRP70-P8 Middle Bezel 204.1 8.04 91.99 3.622 53.28 2.098...
-
Page 9: Installation
Bill Acceptors 5. Installation 5-1. Harness Application Interface Voltage Usage Harness Page Power & Data WEL-R7U02 Communication PULSE Extension Cable CU-R961-1 Power & Data 12V DC WEL-R7U02 Communication RS232 Extension Cable CU-R961-1 Data WEL-R7U06 Communication NOTE : Software download Please refer to G-Box user guide for G-Box firmware download or update process instructions, the user guide can be obtained from the local sales agent or downloaded from "www.topvme.com"... - Page 10 BRP70 WEL-R7U02 PIN NO COLOR PIN DEFINE PIN NO COLOR PIN DEFINE +12V DC PIN1 YELLOW INHIBIT+ PIN1 PIN2 GREEN INHIBIT- PIN2 ORANGE +12V DC PIN5 PIN3 YELLOW INHIBIT+ PIN7 BLUE METER+ PIN4 GREEN INHIBIT- PIN8 PURPLE METER- PIN5 BLUE METER+ PIN9 ORANGE...
- Page 11 Bill Acceptors CU-R961-1 PIN NO COLOR PIN DEFINE PIN1 YELLOW INHIBIT+ PIN2 GREEN INHIBIT- PIN5 +12V DC PIN7 BLUE METER+ METER- PIN8 PURPLE PIN9 ORANGE...
- Page 12 BRP70 WEL-R7U06 PIN NO COLOR PIN DEFINE PIN1 BLUE PIN NO PIN DEFINE PIN2 PIN6 WHITE PIN3 PIN7 BLACK PIN5 PIN8 PURPLE...
-
Page 13: I/O Circuit
Bill Acceptors 5-2. I/O Circuit PULSE INTERFACE Credit_Relay_NO Credit_Relay_COM Bill Acceptor Customer Side Inhibit (+) Inhibit (-) TR ON TR OFF Bill Acceptor Customer Side BA Status DIP SW Setting Control Signal Inhibit Inhibit Active High High High Inhibit Enable Active High... - Page 14 BRP70 Standard RS232 Protocol...
-
Page 15: Dip Switch Setting
Bill Acceptors 5-3. DIP Switch Setting There are DIP switches located at the side part of the BRP70series. Depends on different currencies and credit output formats used; the DIP switch setting can be adjusted easily to fit user's needs. The DIP switch located at the bottom of the BRP70series is intended for interface settings. -
Page 16: Maintenance
BRP70 6. Maintenance If LED or sensor interfered by foreign objects may cause bill jamming and decrease acceptance rate. To make sure the bill acceptor always works smoothly, please clean the internal parts regularly. To clean the internal parts : 1. - Page 19 Taiwan Top Vending Machine Electronics Co., Ltd. NO.11, Anzhong St., Luzhu Dist., Taoyuan City338, Taiwan, (R.O.C.) Phone : +886-3-3115969．Fax : +886-3-3115970 E-mail : sales@topvme.com.tw Website : www.topvme.com...
