Uni-bond LWP6900H-2K Installation Instructions

IMPORTANT NOTE:
The operator/installer of the vehicle is fully responsible for installation of the light in accordance with regulations contained in
CMVSS108. This includes, but is not limited to aiming, wiring combinations with existing lighting (low beam, high beam, fog lamps,
and/or parking lamps), maximum luminous intensity, number or installed lamps, etc.
Voltage : 10V to 30V DC
Wiring:
Black - Ground
Red - High Beam
Yellow - Low Beam
Grey - Turn Signal
Green - Parking
LWP6900H-2K is equipped with Automatic Lens Heater, which helps to reduce ice and snow build-up. Amber indicator light will
be lit when heating element is on. It will take a few minutes for the lens to heat up and melting to commence. Outside temperature,
thickness of ice & snow, etc. can slow the heating process.
Light becomes hot under continuous use. Be cautious of hot surface when touching the lamp.
Please keep heat-sink clean and exposed to maintain air flow.
Wire from Power Source for each light should be fused with a 15.0 Amp Fuse (not included) per lamp.
Harness for dual lamp is available - Part No.

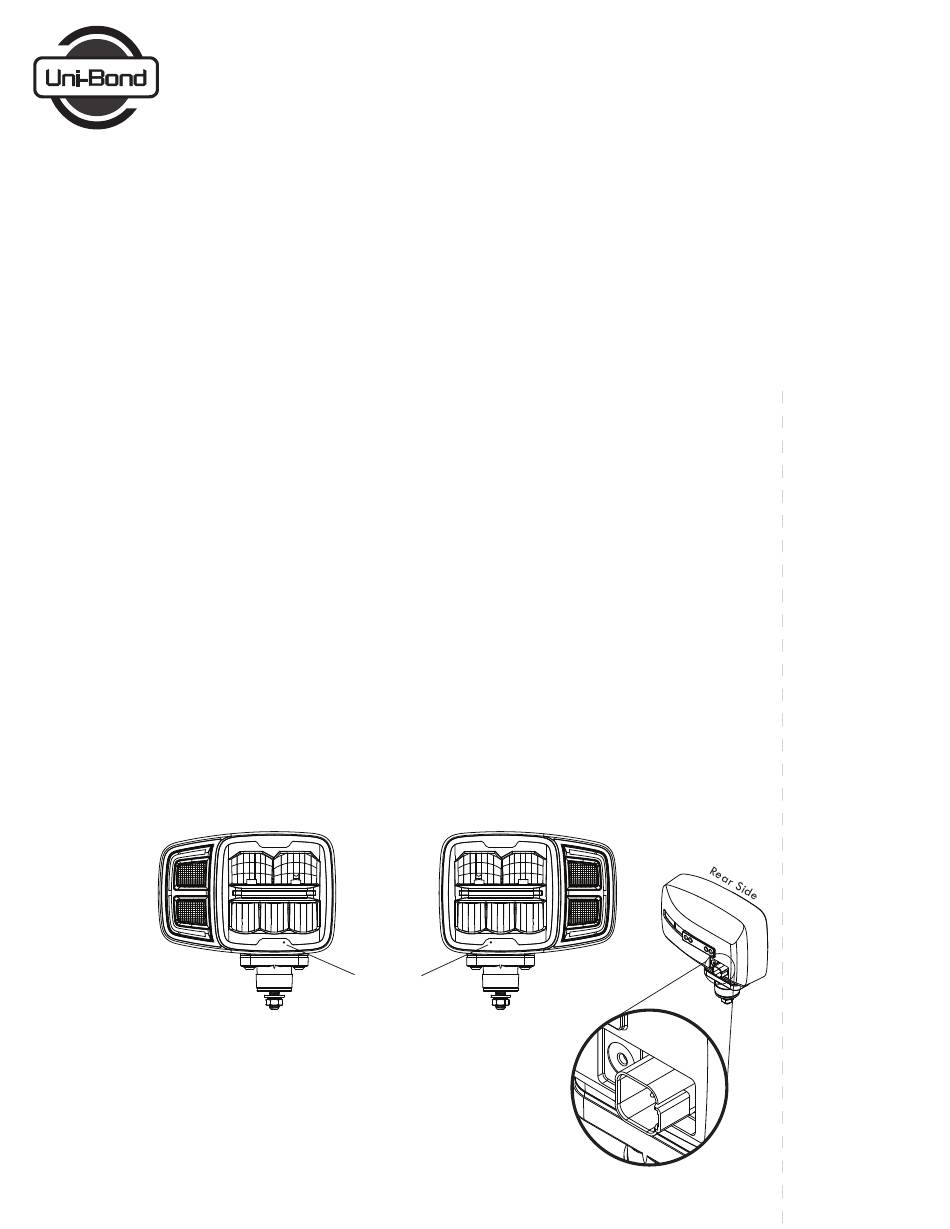

RIGHT (Passenger Side)
LED DUAL HEADLAMP KIT
INSTALLATION INSTRUCTIONS
PT8167 (
The indicator for
heating function (Amber LED)
For more information, visit our website at: www.unibondlighting.com
Part No.
)
sold separately
LEFT (Driver Side)
LWP6900H-2K
Built-In 6-Pin
Deutsch Connectors
