Uni-bond LWP6800H Installation Instructions

IMPORTANT NOTE:
The operator/installer of the vehicle is fully responsible for installation of the light in accordance with
with regulations contained in CMVSS108 and CMVSS108.1. This includes, but is not limited to aiming,
wiring combinations with existing lighting (low beam, high beam, fog lamps, and/or day-time running
lamps), maximum luminous intensity, number or installed lamps, etc.
Voltage : 10V to 30V DC
Wiring:
Black - Ground
Red - High Beam
Yellow - Low Beam
Grey - Turn Signal
Green - Parking
LWP6800H is equipped with Automatic Lens Heater, which helps to reduce ice and snow build-up.
Lens heater will turn on automatically when light is turned on and will stay on until internal temperature
of the light reaches 40°C. Yellow indicator light will be lit when heating element is on. It will take a few
minutes for the lens to heat up and melting to commence. Outside temperature, thickness of ice & snow,
etc. can slow the heating process.
Light becomes hot under continuous use. Be cautious of hot surface when touching the lamp.
Please keep heat-sink clean and exposed to maintain air flow.
Wire from Power Source for each light should be fused with a 10.0 Amp Fuse (not included) per lamp.

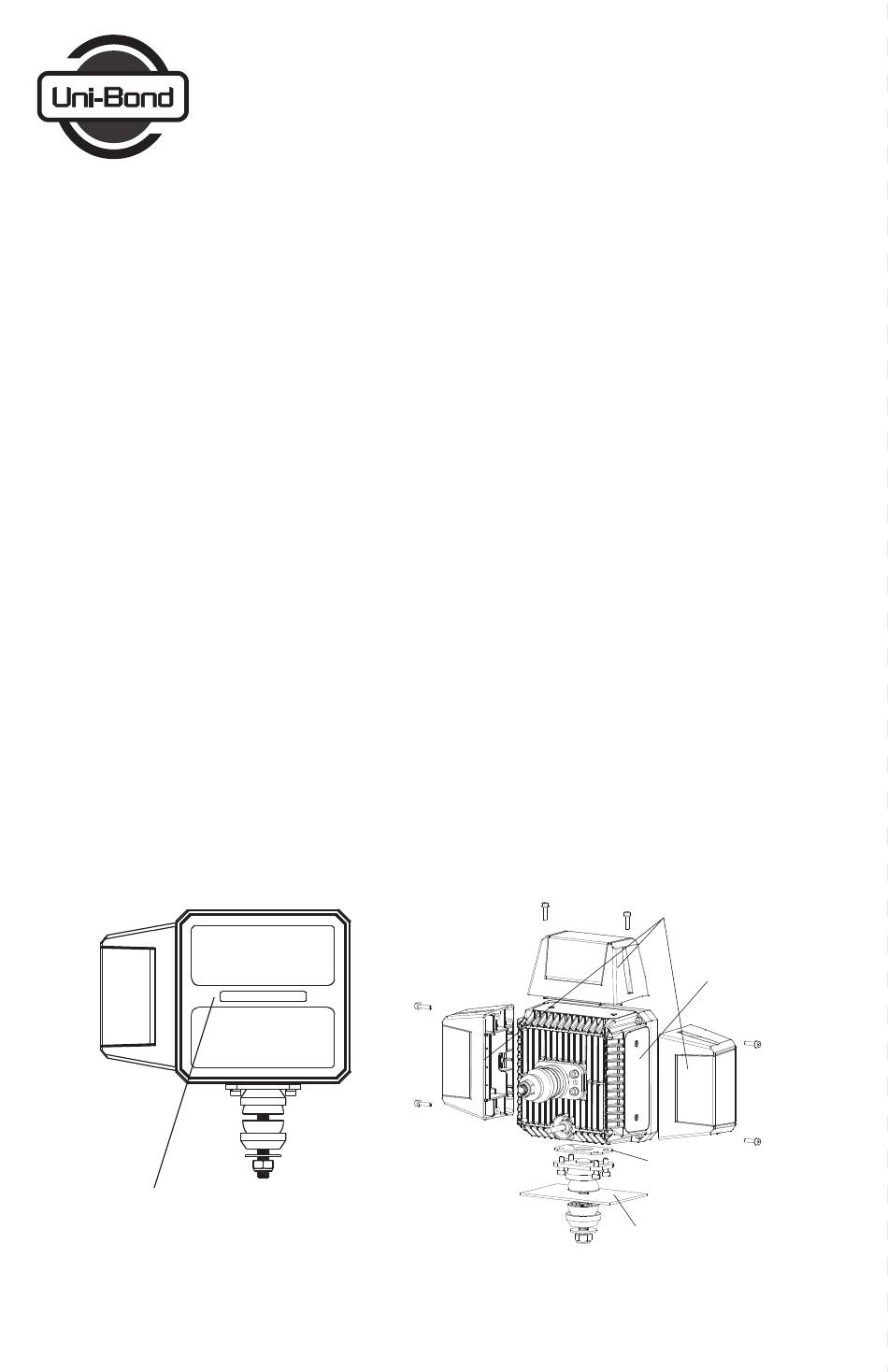

The indicator for
heating function (Yellow LED)
Harness for two lamps is available - Part No.
Harness for single lamp is available - Part No.
For more information, visit our website at: www.unibondlighting.com
INSTALLATION INSTRUCTIONS
PT8167 (
PT6610 (
LED HEADLAMP
Part No.
Turn Signal
Mounting plate
)
sold separately
)
sold separately
LWP6800H
Remove the cover
Rubber
