Avtech Pioneer 350C Zoom User Manual

350w led fresnel with zoom
Hide thumbs

Advertisement

Table of Contents

FRES350FC
350W LED fresnel with zoom
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pioneer 350C Zoom and is the answer not in the manual?

Questions and answers

Related Manuals for Avtech Pioneer 350C Zoom

Summary of Contents for Avtech Pioneer 350C Zoom

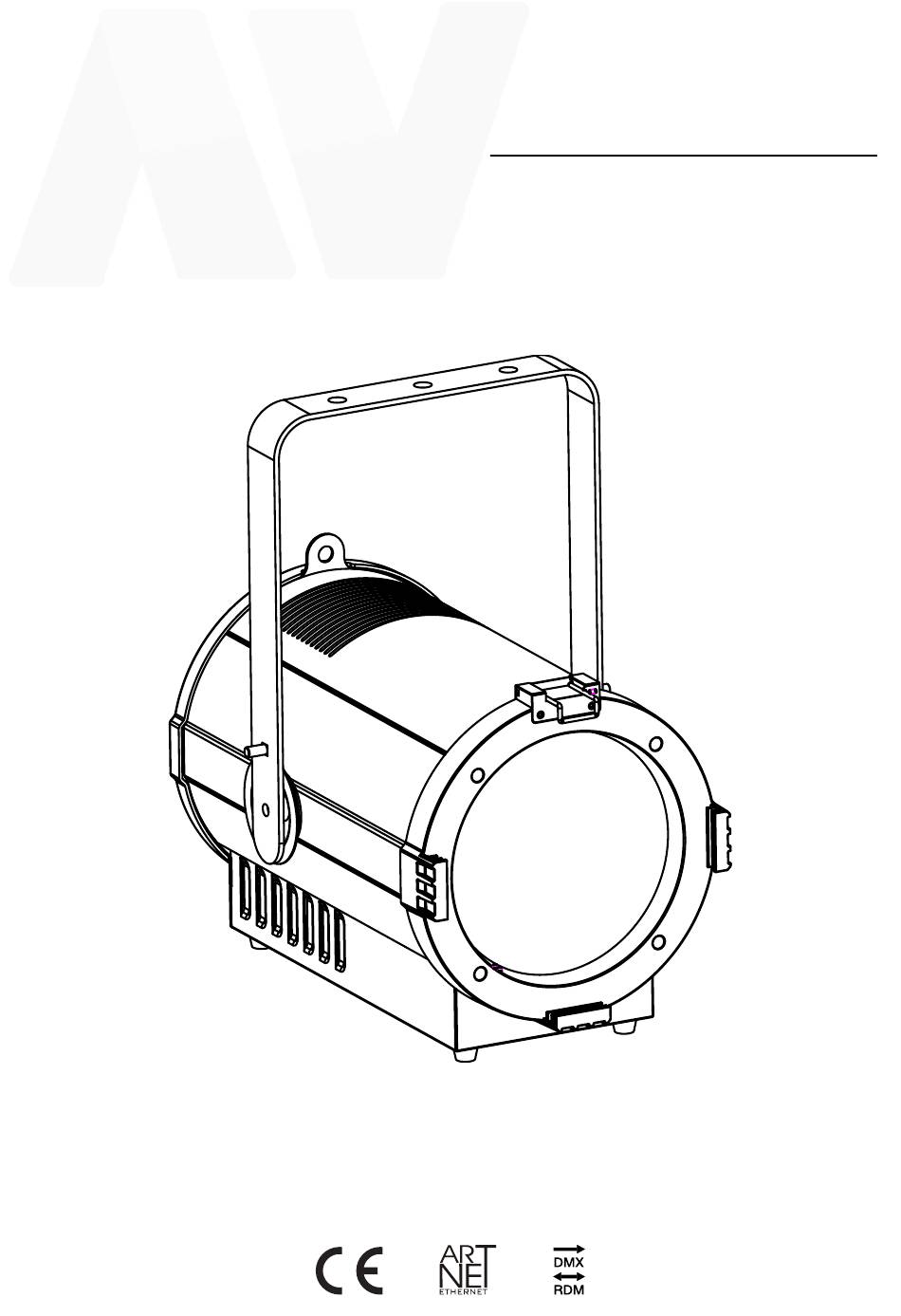

  • Page 1 FRES350FC 350W LED fresnel with zoom USER MANUAL...

  • Page 2: Safety Instructions

    Caution! Be careful with your operations. With a dangerous voltage you can suffer a dangerous electric shock when touching the wires! Avoid looking directly into the light source! Wear protective glasses and other PPE (personal protective equipment) when working on or near the fixture.
  • Page 3 Yoke Accessories clip Barn door and color frame holder Yoke locking knob LCD display Safety cable anchor point Handle On/off Rotary and Enter switch button Fuse Power Power Net in Net out Dmx signal indicator LCD display Net signal indicator Menu Down Enter...

  • Page 4: Installation

    Installation Read ‘Safety information’ before installing the fixture. The fixture is designed for indoor use only and must be used in a dry location with adequate ventilation. Ensure that none of the fixture’s ventilation slots are blocked. Fasten the fixture to a secure structure or surface. Do not stand it on a surface or leave it where it can be moved or fall over.
  • Page 5 Securing with a safety cable Secure the fixture with a safety cable (or other secondary attachment) that is approved for the weight of the fixture so that the safety cable will hold the fixture if a primary attachment fails. Loop the safety cable through the eyebolt in the back of the fixture and around a secure anchoring point. Do not loop the safety cable around the fixture’s mounting bracket only, as this will leave the fixture un- secured if it separates from the bracket.
  • Page 6 Art-Net Connection Connect the Ethernet inputs of all fixtures with the Ethernet network. Art-Net Art-Net Switch/Router PC/Controller Occupation of the RJ45-connection: FRES350FC installs two RJ45 connectors for DMX data transmission. Pin 1 is for data +, Pin 2 for data -, Pin 7 &...

  • Page 7: Operation

    Operation The FRES350FC zoom can operate in three different modes. In each mode you can run the fix-ture as a stand alone fixture or in a master/slave confiugration. This next section will detail the differenc-es in the operating modes. Control Menu Map Default setting in bold.
  • Page 8 Advanced settings/calibration(Only qualified technicians should perform Authorization On/Off this function. Inqure your local dealer for password.) Signal Priority DMX/Art-Net signal priority setting ArtNet On/Off Signal Hold Run if signal cut On/Off RDM function on/off Screen Timeout Display shut off time Advance Never Screen Brightness 25-100%...
  • Page 9 Main Menu Press the MENU button to enter the Main Menu interface. Addressing All fixtures should be given a DMX starting address when using a DMX signal, so that the correct fixture responds to the correct control signals. This digital starting address is the channel number from which the fixture starts to listen to the digital control information sent out from the DMX controller.
  • Page 10 With RDM function, you can set the DMX address of your fixtures remotely. This is especially useful when the device is installed in a remote area. Each Pioneer 350C Zoom has a factory set RDM UID (unique identification number). Note: Before operation, enable RDM function in Advanced settings.
  • Page 11 A single DMX512 frame of 512 channels is referred to as a Universe. Rotary Knob function The knob in the rear panel of the Pioneer 350C Zoom act as multi function. Including rotary control of dimmer, rotary control of dimmer, up/down/enter function function.
  • Page 12 Up, Down, Enter function: The knob can also act as up, down and enter function. 1. Press the MENU button to enter the main menu interface. 2. Right rotation = Down, left rotation = Up, press = Enter function. Set dimmer curves This function allows you to select preset dimmer curves as well as custom dimmer curves.

  • Page 13: Dmx Protocol

    To set preset dimmer curves: 1. Press the MENU button to enter the main menu. 2. Press the UP or DOWN button to select Dimmer menu and press ENTER. 3. Press DOWN menu and select Mode sub menu. 4. Select disired dimmer mode. Custom dimmer curves: 1.
  • Page 14 8 Channels Mode Function Function Control Dimmer 000-255: 0-100% dimmer 000-004: No function Strobe 005-255: Strobe with speed increasing 000-255: Red dimmer 0-100% Green 000-255: Green dimmer 0-100% Blue 000-255: Blue dimmer 0-100% Amber 000-255: Amber dimmer 0-100% Lime 000-255: Lime dimmer 0-100% Cyan 000-255: Cyan dimmer 0-100% 13 Channels Mode...

  • Page 15: Fixture Cleaning

    13 Channels Mode Function Function Control 000-004: No function CH11 Color marco 005-130: Color jump, speed increasing 131-255: Color fading, speed increasing 005-005: No function 006-047: Dimmer mode, Standard 048-089: Dimmer mode, Stage CH12 Dimmer mode 090-131: Dimmer mode, TV 132-173: Dimmer mode, Architecture 174-215: Dimmer mode, Theatre 216-255: Custom dimmer curve...

  • Page 16: Technical Specifications

    Technical specifications Model Pioneer 350C Zoom Power supply: AC100-240V, 50/60Hz Light source: 350W RGBALC LED Color temperature: 2700K - 8000K Color Rendition: CRI 85 Zoom scale: 20° - 55° motorized Power connection: PowerCON in & out Maximum power linking: 6 units Signal connection: 3-pin XLR in&out(5-pin optional), Net in&out...
