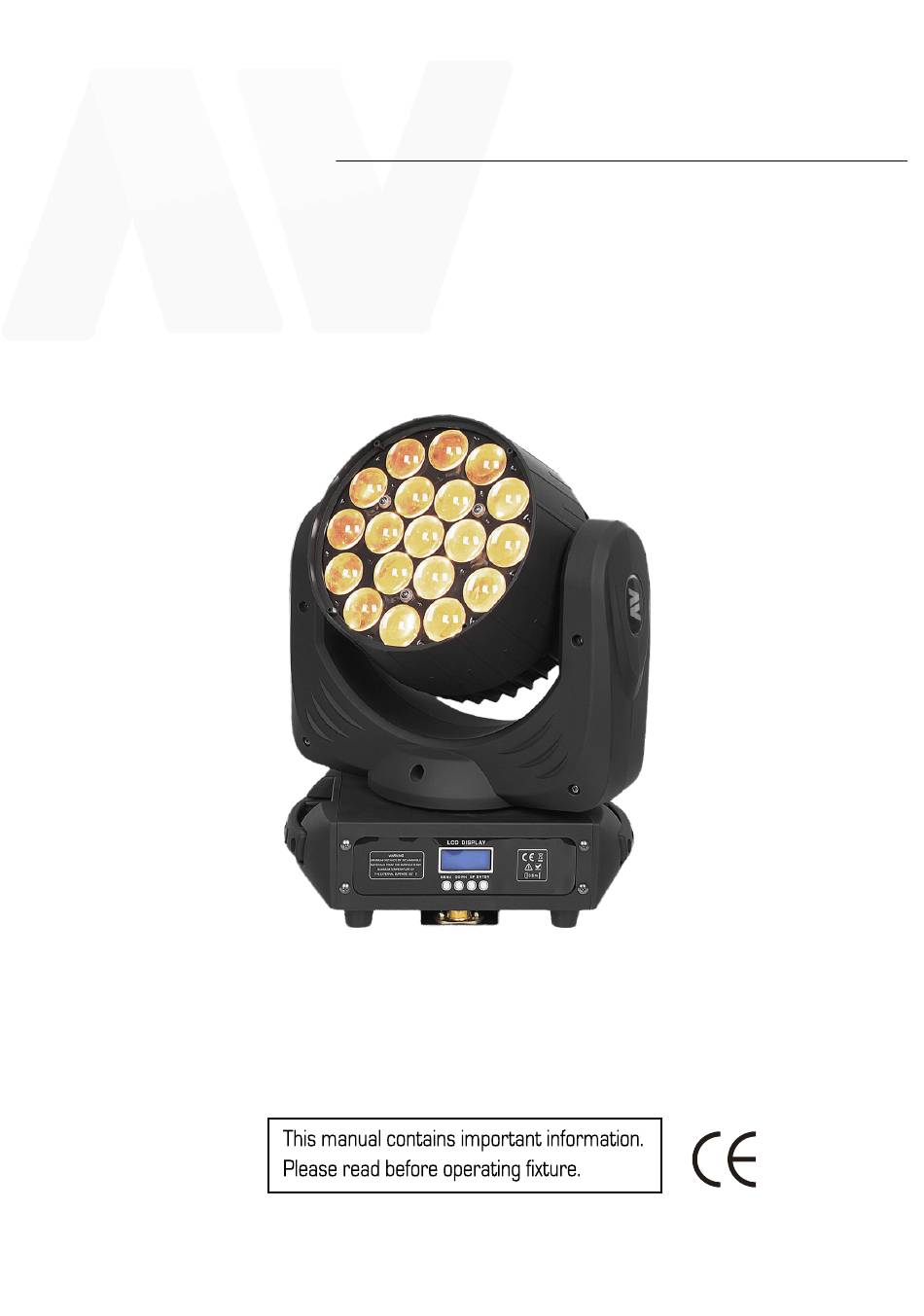

- Page 1 ZOOMMOVER19 LED Zoom Moving Head User Manual...
- Page 2 1. INTRODUCTION Thank you for selecting the LED Zoom Moving Head. It features 5° - 50° motorized zoom. With 19 x 15W OSRAM Ostar RGBW 4in1 LEDs, it produces extremely bright and unlimited colors. Great for stages, live shows, clubs, bars, etc. To optimize the performance of this product, please read the user manual carefully before use.
- Page 3 1.3 Features ▪ 19 x 15W Quad-colour LEDs (RGBW) ▪ Beam angle: 5° - 50° adjustable ▪ Pan/tilt auto correction ▪ Pan: 540 degrees, Tilt: 220 degrees ▪ 0 - 100% dimming and variable strobe ▪ DMX channels: 16 ▪ LCD display with rotary wheel ▪...
- Page 4 3. OPERATION INSTRUCTIONS 3.1 Menu Map 1st Level 2nd Level 3rd Level DMX-CH16 SOUND AUTO1 Mode AUTO2 AUTO3 AUTO4 Address 001-512 Reset Language English/ 中文 Sens (Sensitivity) 010 - 100 000-255 000-255 test Ch15 000-255 PanOffset 000-255 TiltOffset 000-255 ZoomOffset 000-255 ROffset 000-255...
- Page 5 16 DMX Channels Channel DMX Value Functions Dimmer 0-255 0-100% 0-255 Red intensity 0-100% Green 0-255 Green intensity 0-100% Blue 0-255 Blue intensity 0-100% White 0-255 White intensity 0-100% No function Color Macro 5-255 Built-in colors 0-255 Pan movement 540° Tilt 0-255 Tilt movement 270°...
- Page 6 4. General Maintenance 4.1 Fuse Replacement a. Unscrew the fuse holder and remove the damaged fuse. b. Replace with exact same type fuse and screw the fuse holder back in its place. 5. Specifications Source: 19 x 15W RGBW 4in1 LEDs Beam angle: 5°...
