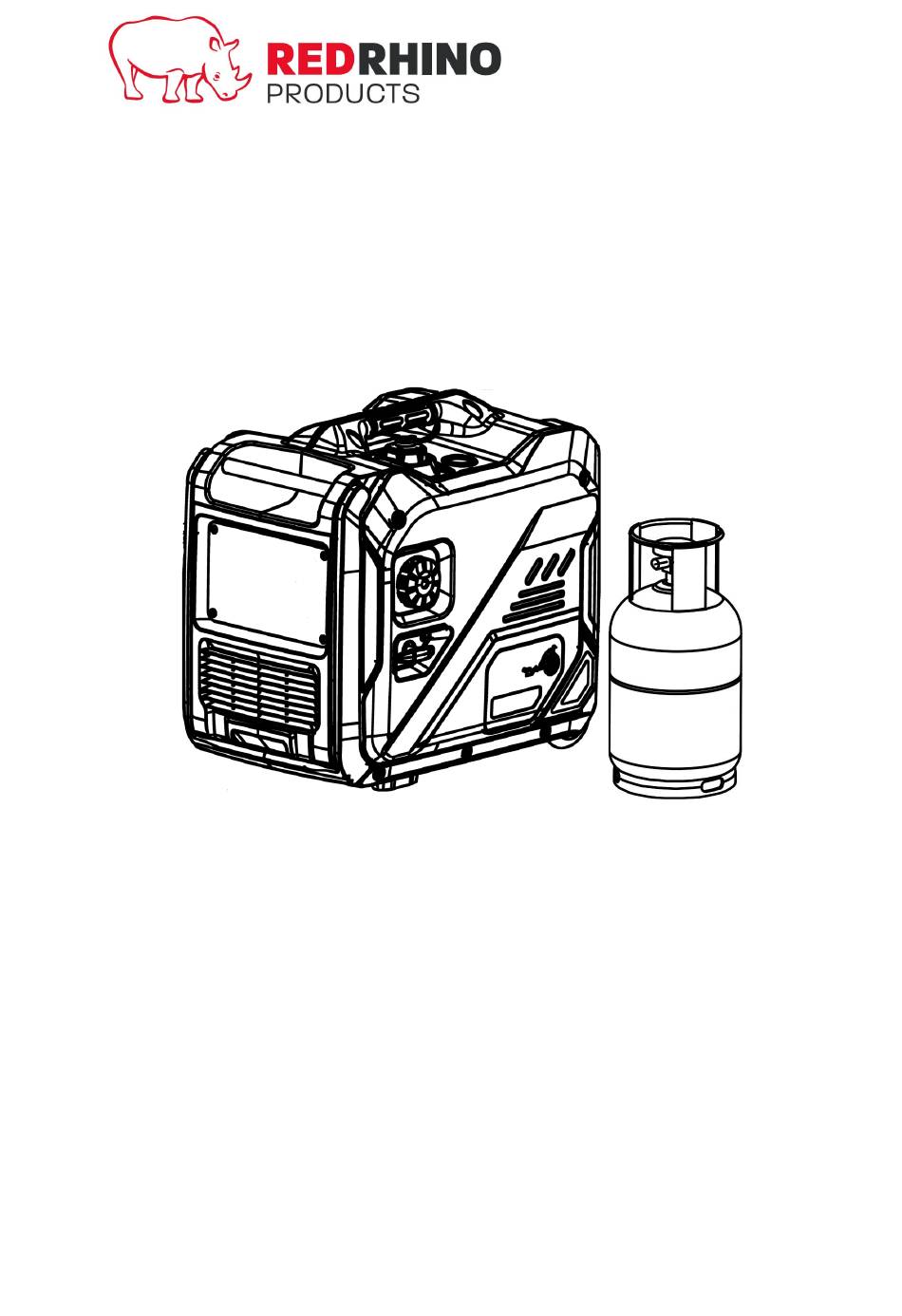

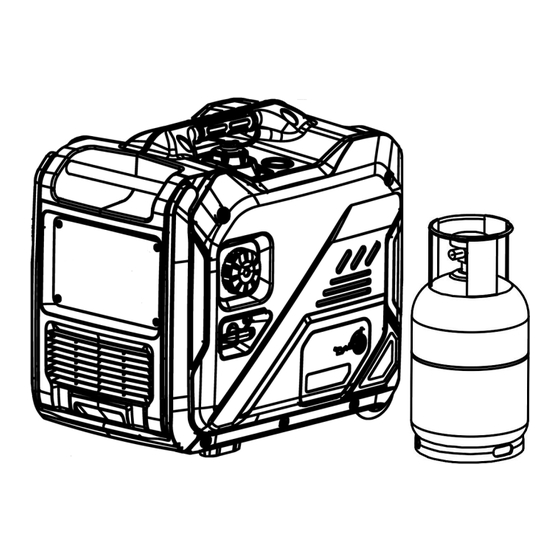

- Page 1 INVERTER GENERATOR Owner’s Manual www.redrhino.co.za...
- Page 2 Thank you for buying our inverter generator. • The copyright of this specification belongs to our company. • Any contents of the manual shall not be copied without the written permission of the company. • The company reserves the right of modification of product and revision of the manual without any notice.
-
Page 3: Safety Warning
! The manual may differ according to the size and specs of the generator. SAFETY WARNING You and other people's personal and property safety is very important. Please read carefully about the safety warnings which are in the manual or on the stickers. Safety warnings can tell you the dangers that may hurt you or others. -
Page 4: Table Of Contents
Table of Contents SAFETY WARNING ................3 SAFETY INFORMATION ............... 6 Safety specification ..............6 Special Requirements ..............7 SECURITY WARNING STICKERS ..........8 COMPONENTS IDENTIFICATION ..........9 Components Feature ..............9 Control panel ................10 Model and serial number ............11 CONTROL SYSTEM .............. - Page 5 Earthing Terminal ..............19 Earthing terminal is a special terminal used to ground the whole generator well.................. 19 GENERATOR USAGE ..............19 Connect to Household Power Supply ........19 Generator Ground ..............20 Alternating Current ..............21 START THE GENERATOR ............23 Recoil Start ................
-
Page 6: Safety Information
1. SAFETY INFORMATION a. Safety specification Please read and understand this manual well before operating. Familiarize yourself with the safe operating procedures of generators as this can help avoid accidents. Do not use indoors Do not use in damp environment. DO NOT Connect directly into wall socket Do not smoke while fuelling... -
Page 7: Special Requirements
Do not spill fuel while filling. Do not re-fuel while generator is running. Move all combustible materials away from generator at least 6.5ft. while in use. b. Special Requirements • Electrical equipment including wires and plugs should have NO exposed wires. •... -
Page 8: Security Warning Stickers
2. SECURITY WARNING STICKERS... -
Page 9: Components Identification
3. COMPONENTS IDENTIFICATION a. Components Feature Fuel Gauge handle Fuel Tank handle Start switch Control panel Oil maintenance cover handle Maintenance cover switch Recoil Starter Right cover Spark plug Handle maintenance Maintenance cover cover swi tch Muffler cover Left cover Shock Muffler outcome absorber... -
Page 10: Control Panel
b. Control panel (Depending on the configuration, the factory will make the appropriate adjustments, those changes are without separate notice.) Display panel DC socket USB socket ESC switch Parallel socket AC reset AC socket AC breaker Ground terminal DC breaker... -
Page 11: Model And Serial Number
c. Model and serial number model Final Number Serial Number... -
Page 12: Control System
4. CONTROL SYSTEM a. Gasoline, LPG switch system Dual fuel series models have the function of automatic switching between LPG and gasoline. When both LPG and gasoline are supplied, the system gives priority to the use of LPG. When the LPG is used up or manually intervenes to shut down the LPG supply, the system detects that the air pressure is too low to meet the LPG supply of the generator, and then it will automatically switch to the use of gasoline. -
Page 13: Overload Indicator (Red)
c. Overload Indicator (Red) When the overload indicator is on, your generator has been overloaded, at this time the AC overload protector will turn on and stop the generator to protect it. The running indicator(green) will shut off, and the overload indicator(red) will turn on, but the engine won’t shut down. -
Page 14: Earthing Terminal
• “OFF” When the energy-saving switch is in the "OFF" position, engine runs rated speed (4800r/min) regardless of whether the load is connected. Tips: When using a sinking pump, such as an air compressor, the ESC must be turned off because it requires a high starting current. f. - Page 15 tighten Fuel Tank Cap loosen • Starting the engine, the tank cap ventilation switch should be rotated to the "ON" position so that the tank and the atmosphere are communicated. On transportation of the generator, the tank cap ventilation switch should be rotated to the "OFF" position to avoid fuel leakage OFF Position Ventilation Switch...
-
Page 16: Oil
• After refuelling, wipe the residual gasoline with a clean, soft cloth to avoid damaging the plastic shell. • Only use unleaded gasoline, because leaded gasoline can seriously damage the engine's internal parts. Recommended fuel: unleaded gasoline (Fuel tank capacity: 11L) Recommended gas: LPG Gas b. -
Page 17: Hand-Drawn Starting Handle
5. Replace the oil maintenance door and turn the knob to the OFF position. Recommended oil: SAE SJ 10W-40 Recommended oil grade: API standard SE type or higher Oil capacity: 0.7 L c. Hand-drawn starting handle Gently pull the starting handle up until resistance is felt, then suddenly pull it out. -
Page 18: Three-In-One Switch
Electric start button Choke Starting Switch Three-in-one Switch (Fuel switch/Electric start switch/Choke ） The fuel switch is the device that controls the flow of fuel from the tank to the carburettor. After shutdown, ensure that the start button on the start switch is in the "OFF"... -
Page 19: Ac Circuit Breaker Protection
engine is hot start, rotate the start switch to place the start button in the "run" position. e. AC Circuit Breaker Protection Overload current can automatically turn off the breaker protector. Load short circuit and overload should be avoided. If the circuit breaker is automatically turned off, be sure to check the load condition before placing it in the open position. -
Page 20: Generator Ground
When the generator is connected to the home power supply as a backup power supply, it should be connected by a special electrician or someone familiar with electricity After connecting the load to the generator, carefully check whether the electrical connection is safe. Improper electrical connection may result in damage to the generator, combustion or fire b. -
Page 21: Alternating Current
c. Alternating Current • Make sure before starting the generator: The total power of the load apparatus (the sum of resistive, capacitive and inductive load) shall not exceed the rated output power of the generator. Overload will lead to generator burnout or greatly shorten the life of the generator. - Page 22 Indication Only: In general, capacitive and inductive load, especially motor drive device, produce a large starting current when starting up. The following table is for your reference when you connect these electrical appliances to the generator set. Type Wattage Typical example Equipment Start...
-
Page 23: Start The Generator
7. START THE GENERATOR Before starting the generator, please prepare the unit before operation. You should fill the oil and fuel(or LPG), and turn the ventilation switch of the oil tank cap to the "ON" position. a. Recoil Start • Remove all load from the output. -
Page 24: Electric Start
b. Electric Start Before starting, remove the appearance cover plate and connect the negative wire as the figure. Negative Wire Plug Box Battery • Remove all load from the output. • Turn the start switch to place the start button in the "choke" position. •... -
Page 25: Fuel Switch
When the gasoline engine is started in the thermal mode, turn the start switch to make the start button in the “run” Position • Press the start button • When the generator is started, rotate the start switch to place the start button in the "run"... -
Page 26: Stop The Generator
When the gas pressure is insufficient, there may be multiple cycles of fuel switching. At this time, it is recommended that the operator turn off the LPG source to avoid the decline of power output quality caused by multiple switching of the generator 9. -
Page 27: Maintain
10. MAINTAIN Good maintenance is the best guarantee to achieve safe, economic and zero- fault operation. It also contributes to the environment protection. To keep the engine in good condition, you must check and maintain it regularly. Please follow the schedule below. Maintenance Period First time Every three... - Page 28 Check – Ö Valve Lash** Adjust Fuel Tank and Ö Clean fuel filter** Fuel Pipe Check Every two years (Replace if necessary) Eliminate Displacement < 225cc, every 125 hours Cylinder carbon head, piston Displacement ³ 225cc, every 250 hours deposition *These items should be replaced if necessary **These items should be maintained by the authorised dealer of our company unless the user has the appropriate tools and maintenance...
-
Page 29: Change The Oil
Remove the oil gauge. Then unscrew the oil opening bolt to drain the oil. Install the oil drain bolt and tighten it. Fill the oil and check the oil level. Install the oil gauge. Oil volume: RGLIV6250 0.7 L... -
Page 30: Maintain The Air Filter
Long-term and frequent skin contact with engine oil may lead to skin cancer. Although this is not inevitable, it is recommended to wash the skin exposed to engine oil immediately and thoroughly with soap and water. From the perspective of environmental protection, please properly dispose of the used engine oil after use. -
Page 31: Spark Plug
Filter element Air filter cover Locking clamp c. Spark plug Please replace the spark plug in accordance with the original specification： F7TC 1. Detach the cover of spark plug. 2. Remove the spark plug with the socket wrench. 3. Visually inspect the spark plug insulator for damage. Replace it if it is damaged. -
Page 32: Storage
STORAGE In order to avoid burning or fire caused by contact with high-temperature parts of the generator, the generator must be cooled before being packaged and stored. Please ensure the storage area is clean and dry if long-term storage is needed. -
Page 33: Trouble Shooting
TROUBLE SHOOTING... -
Page 34: Circuit Diagram
CIRCUIT DIAGRAM... -
Page 36: Parameters
PARAMETERS Items RGLIV6250 Single cylinder, four-stroke, air-cooled, Engine model cylinder center inclined 55° displacement(cc) Gasoline Ignition system Integrated digital ignition engine Starting mode Recoil Start/E-start Tan capacity (L) Oil capacity(L) frequency (Hz) phase Single phase voltage (V) Rated power(kW) Gasoline:5.0kW / LPG:4.5kW Generator Max.power (kW)
