Summary of Contents for Red Rhino RGL3150D

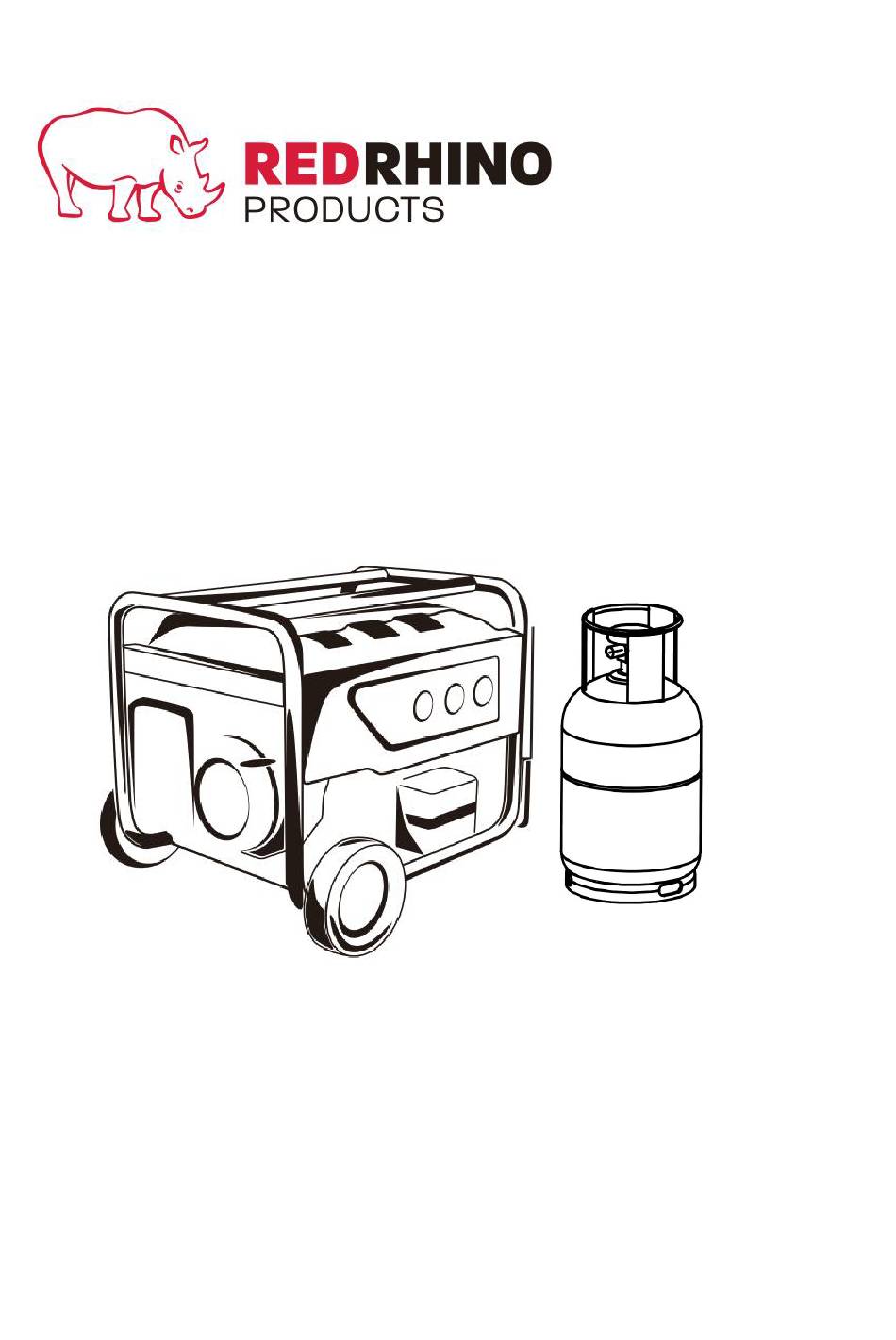

- Page 1 Generator set instructions Please read the instructions before using the product...
- Page 2 Safety Warning The personal and property safety of you and others is very important. Please read carefully the extremely important safety warnings we have written in the manual and the label of the generator set. Safety warnings can alert you to potential dangers that may harm you and others.
-
Page 3: Table Of Contents
Content 1. Security matters..............2 2.Part name................4 3.Check before operation............4 4.Starting generator set............6 5.Fuel switching...............8 6.Stop generator..............8 7.Maintenance Schedule............8 8.Maintenance.................9 9.Handling and Storage............11 10.Troubleshooting..............13 11.Technical parameter............14 12.Electric circuit diagram............15 13.Packing List................17 1. Security matters Please read and understand this manual carefully before operating the generator set, otherwise it may cause personal injury or equipment damage. -
Page 4: Security Matters
the fuel outlet. Make sure the tank cover is tight. •If there is fuel spatter, it must be completely eliminated and start the generator set after they volatilize. •Smoke or open fire and sparks are not allowed in the place where the generator set is added with fuel or where the fuel is stored. -
Page 5: Part Name
Warning label and schematic diagram 2. Part name 2.1 Unit parts 1、petrol engine power 2、Frame 3、Fuel tank 4、Control panel combination 5 、Electric motor 6、Air filter 7、Muffler parts 8、Tail cover 9、Storage cell 10、LPG interface... -
Page 6: Check Before Operation
2.2 Electrical device identification 1、Start switch 2、Voltmeter 3、Gas Conversion 4、Socket 5、Circuit-breaker 6、Ground Terminal 3. Check before operation 3.1 Engine lubricating oil ·Engine lubricating oil is the main factor affecting the performance and service life of generator sets. Two-stroke lubricating oil is not allowed because they lack sufficient lubricating characteristics. - Page 7 3.2 Petrol、gas 1)、Remove the tank cover and add 92# or higher unleaded petrol . 2)、When adding fuel, the oil level should not exceed the calibration position of filter mesh. 3) When using gas, it must be ensured that the pipeline is normal without leakage, and the gas switch(reset) must be closed after the gas used up •...
-
Page 8: Starting Generator Set
3.3 Air filter Never transfer the generator set without air filter, otherwise it will accelerate the abrasion of the generator set. 1） Remove the air filter cover; 2）Check whether the cabin filter is too dirty or blocked. Clean the cabin filter if necessary. - Page 9 Note: When the generator set starts in the heat engine state, please do not close the air barrier door. If the dual-fuel model you are using is a non-electric starter product, or the battery has run out of power and is not enough to start the generator normally, and the engine cannot be started with gas at this time, you must ensure that there is petrol in the tank, and start the pneumatic drive with petrol first.
-
Page 10: Fuel Switching
5. Fuel switching This series of dual-fuel generator sets has the function of non-stop fuel switching. By default, gas will be consumed first. If the gas is turned on and there is petrol in the tank, when the system is working normally, the petrol will be automatically turned off and the gas will be turned on when the engine is started. -
Page 11: Maintenance
Maintenance cycle table The maintenance cycle arrives first by Every 6 month or actual operation hours. The first Quarter Annual Use each months month or ly or 50 or 300 time or 100 20 hours hours hours Project hours Check the oil ○... - Page 12 A dirty air filter will restrict air from entering the carburetor. In order to prevent carburetor from malfunction, the air filter must be maintained regularly. If the generator set operates in dusty places, it will be maintained more frequently. The air filter must not be cleaned with petrol or low-burning detergent, otherwise it may lead to explosion.
-
Page 13: Handling And Storage
3）Remove the spark plug with a special socket wrench. Spark plug socket Spark wrench plug cap The muffler will be very hot during the running process of the engine and within a period of time after the engine stops running. Please do not touch it. 4）visual inspection spark plug. - Page 14 Ensure the level of generator set to prevent fuel overflow.Fuel volatilization or overflow can cause fire. Preparations that need to be made to store the generator set for a long time: 9.1 Make sure that the storage place is not highly damp and mild, and is full of dust.
-
Page 15: Troubleshooting
10.Troubleshooting... -
Page 16: Technical Parameter
11.Specification Model RGL3150D RGL6250D RGL7500D RGL9000D RGL10000D Power model H210 H420 H460-1 H460-1 （H390）H420 Form Single cylinder, four-stroke, forced air cooling, valve overhead type Capacity (CC) （389）420 Fuel consumption rate ≤374 ≤374 ≤374 ≤374 (g/kW·h) Startup mode Hand/electric start Fuel volume (L) -
Page 17: Electric Circuit Diagram
12. Electrical Diagrams According to different features，factory may adjust without prior notification.） Hand start... - Page 18 Electric start...
